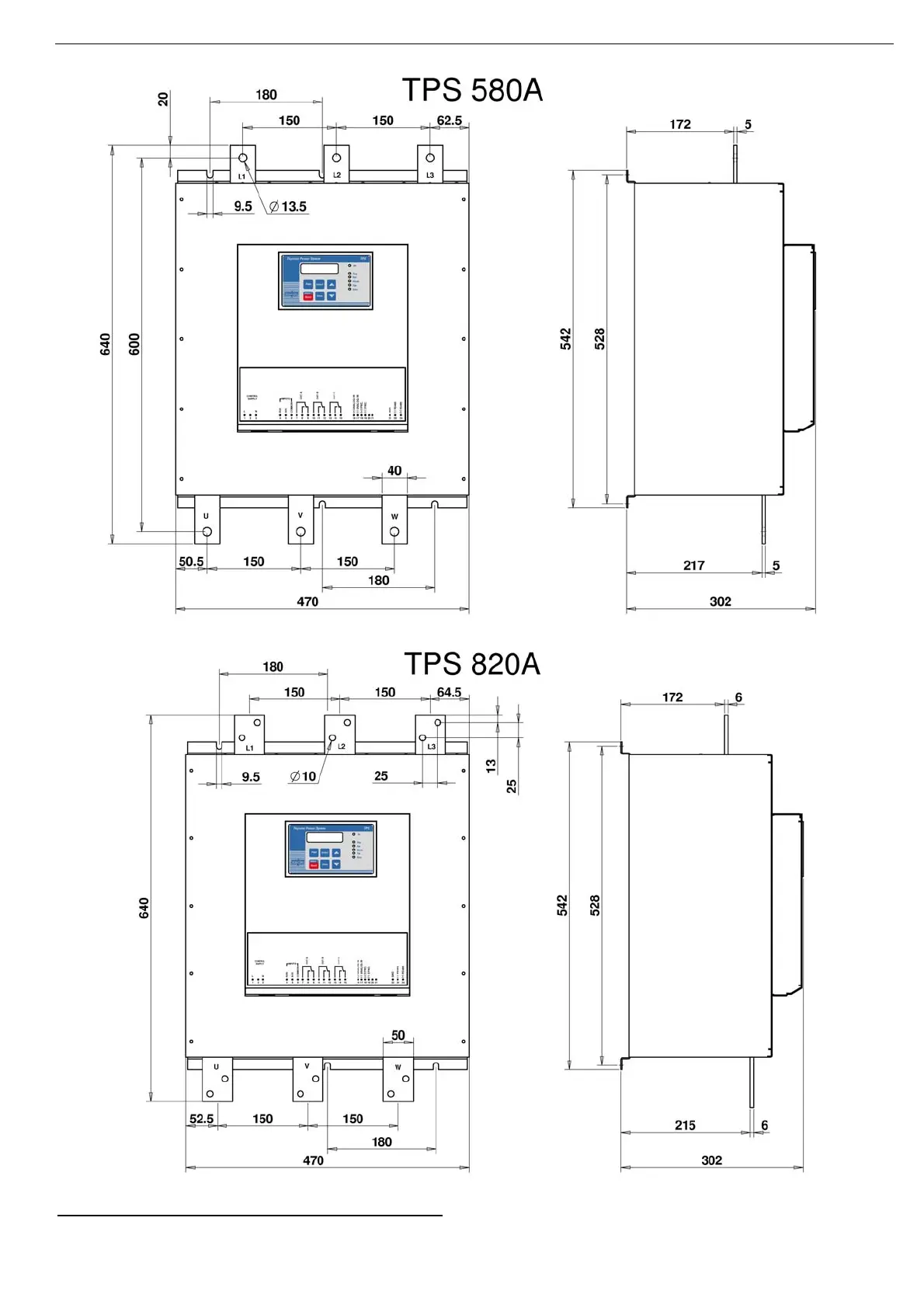

General Specifications| rated current | 8-1500A |
|---|---|
| rated voltage | 120 - 1000VAC +10% -15% |
| control voltage | 120 or 230VAC, 110VDC+10% -15% |
| frequency | 50 / 60 Hz |
| controlled phases | Three |
| short-circuit current | 25kA |
| rated insulation voltage | 690V (120-690V mains models), 1000V (1000V mains models), 250V (control circuits) |
| rated impulse withstand | 6kV (Mains), 2.5kV (control) |
| degree of protection | IP00 |
| pollution degree | 3 |
| ambient temperature operating | -10 – + 50°C |
| ambient temperature storage | -20 – + 70°C |
| altitude | To 1000 m ASL W/O de-rating |
| cooling | Forced air (fans) |
| number of CTs | Three |
| connection modes | Wye - Neutral connected / not connected |
Control Specifications| control method | Digital |
|---|---|
| firing method | Zero crossing, Phase control, Phase control-power |
| on-off time cycle | 1000 – 10000 mSec. |
| analog input | 0-10V >100KΩ / 4-20 mA, 0-20mA <100Ω |
| control inputs | Start/Stop (with internal 0-60 sec time delays), Aux. contact |
| output relays | 3 programmable (1-C/O) (8A/250VAC) |
| maximum breaking capacity AC | 2000 VA |
| max. DC load breaking capacity | 8A at 30VDC. |
| synchronization | One master and 2-9 connected slaves |
Fan and TPS Consumption Ratings| TPS 8-31A consumption | 21W |
|---|---|
| TPS 44-72A consumption | 36W |
| TPS 85-105A consumption | 26W |
| TPS 145-170A consumption | 35W |
| TPS 210-460A consumption | 64W |
| TPS 580-820A consumption | 100W |
| TPS 55-200A 1000V consumption | 40W |
