Solcon TPS User Manual

22 • Installation
________________________________________________________________________________________________
Analogue value can be programmed via the key pad in I/O PROGRAMMING SETTINGS page to one of the
values as follows (refer to section
7.7.2 on page 30.):
A. Power, 0-100% OF Pn (Default setting)
B. I average, 0-100% OF LOAD RATED CURRENT.
C. I1, 0-100% OF LOAD RATED CURRENT.
D. I2, 0-100% OF LOAD RATED CURRENT.
E. I3, 0-100% OF LOAD RATED CURRENT.
F. ANALOG INPUT (reflection of analogue input to the TPS)

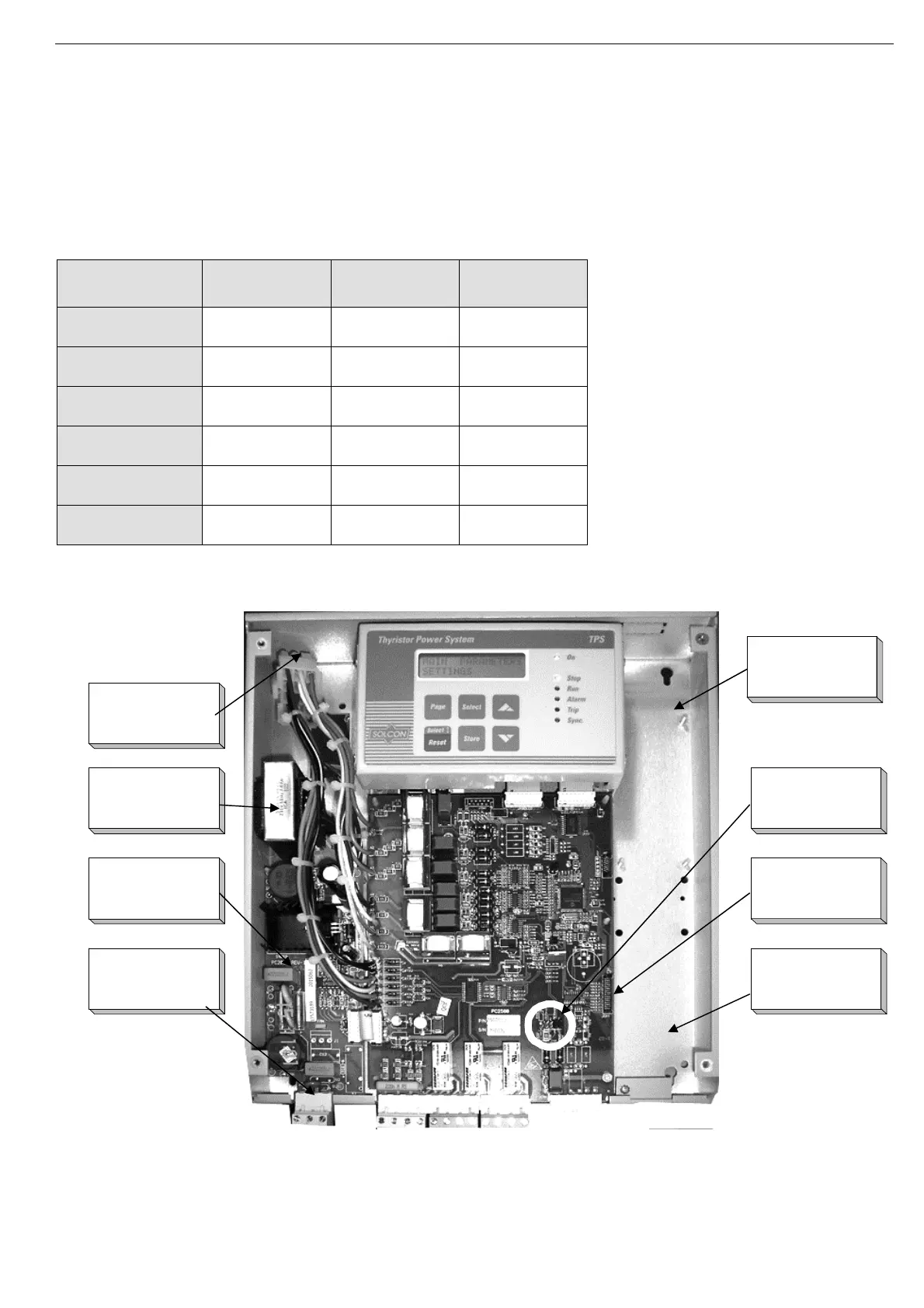

Dip No.
4-20 mA*
0-20 mA 0-10VDC
Dip-Sw. S1 # 1 On On Off
Dip-Sw. S1 # 2 On On Off
Dip-Sw. S1 # 3 Off Off On
Dip-Sw. S1 # 4 Off Off On
Dip-Sw. S2 # 1 On Off Off
Dip-Sw. S2 # 2 No use No use No use
* Factory default setting
Board
Power Supply
Ca
r
d
Transformer
Plug to the
Power Unit
Supply
V
o
l
tage
Main
Jumper
Selection
Optional
Co
mm. B
oa
r
d
Optional
analogue Board

Solcon TPS Specifications

General Specifications

rated current	8-1500A
rated voltage	120 - 1000VAC +10% -15%
control voltage	120 or 230VAC, 110VDC+10% -15%
frequency	50 / 60 Hz
controlled phases	Three
short-circuit current	25kA
rated insulation voltage	690V (120-690V mains models), 1000V (1000V mains models), 250V (control circuits)
rated impulse withstand	6kV (Mains), 2.5kV (control)
degree of protection	IP00
pollution degree	3
ambient temperature operating	-10 – + 50°C
ambient temperature storage	-20 – + 70°C
altitude	To 1000 m ASL W/O de-rating
cooling	Forced air (fans)
number of CTs	Three
connection modes	Wye - Neutral connected / not connected

Control Specifications

control method	Digital
firing method	Zero crossing, Phase control, Phase control-power
on-off time cycle	1000 – 10000 mSec.
analog input	0-10V >100KΩ / 4-20 mA, 0-20mA <100Ω
control inputs	Start/Stop (with internal 0-60 sec time delays), Aux. contact
output relays	3 programmable (1-C/O) (8A/250VAC)
maximum breaking capacity AC	2000 VA
max. DC load breaking capacity	8A at 30VDC.
synchronization	One master and 2-9 connected slaves

Fan and TPS Consumption Ratings

TPS 8-31A consumption	21W
TPS 44-72A consumption	36W
TPS 85-105A consumption	26W
TPS 145-170A consumption	35W
TPS 210-460A consumption	64W
TPS 580-820A consumption	100W
TPS 55-200A 1000V consumption	40W
