Sony F65 - SKC-4065 + CA4000 Docking System

13

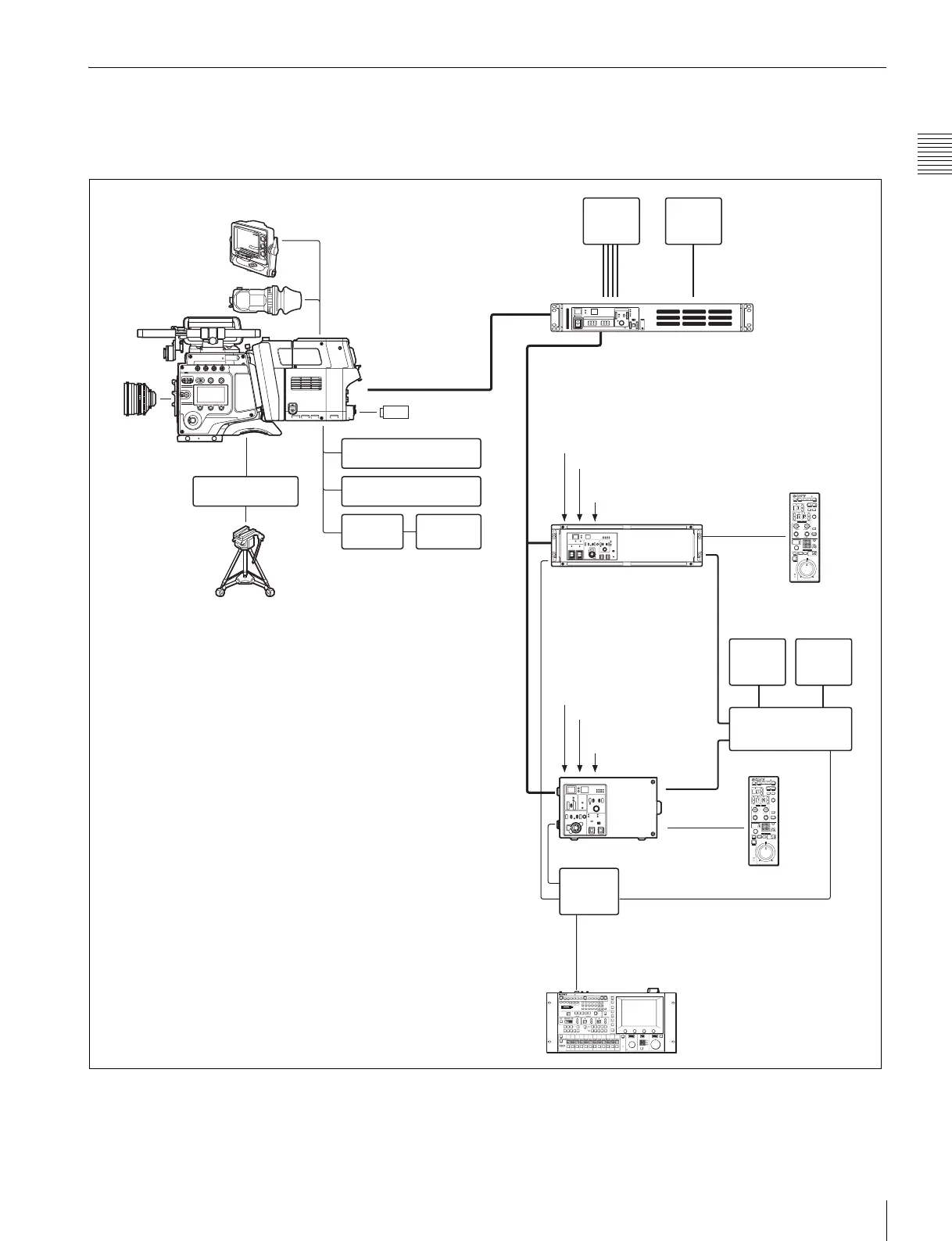

Example of System Configuration
Chapter 1 Overview
1-2-2 SKC-4065 + CA4000 Docking System
Mount an SKC-4065 on which a CA4000 is attached onto the rear of the camera.
When an SKC-PB40 (option) is attached to the CA4000, using the dedicated cable to connect the camera to the CA4000
allows you to supply power to the camera from the CCU.
Lens
BP-8 Bridge Plate
(ARRIFLEX)
Tripod
HDVF-EL75
DVF-L700
Viewfinder
Optical fiber cable
DVF-EL100
Viewfinder
HDCU2000
Camera Control Unit
BNC
HDCU2500
Camera Control Unit
MSU-1000 series
Master Setup Unit
RCP-1000 series
Remote Control Panel
BNC
Video
Monitor
Waveform
Monitor
Video Router
CCA-5
LAN cable
Optical fiber cable
Hub
RCP-1000 series
Remote Control Panel
CCA-5
CAC-6 Return Video
Selector
Intercom Headset
CAC-12
Microphone
Holder
Microphone
USB flash drive
Sync signal input
Return video input
Intercom microphone
input
F65
BPU4000
Baseband Processor Unit
BNC × 4
2K Video
Monitor
BNC
4K Video
Monitor
LAN cable
Sync signal input
Return video input
Intercom microphone
input
SKC-4065+CA4000
+SKC-PB40
