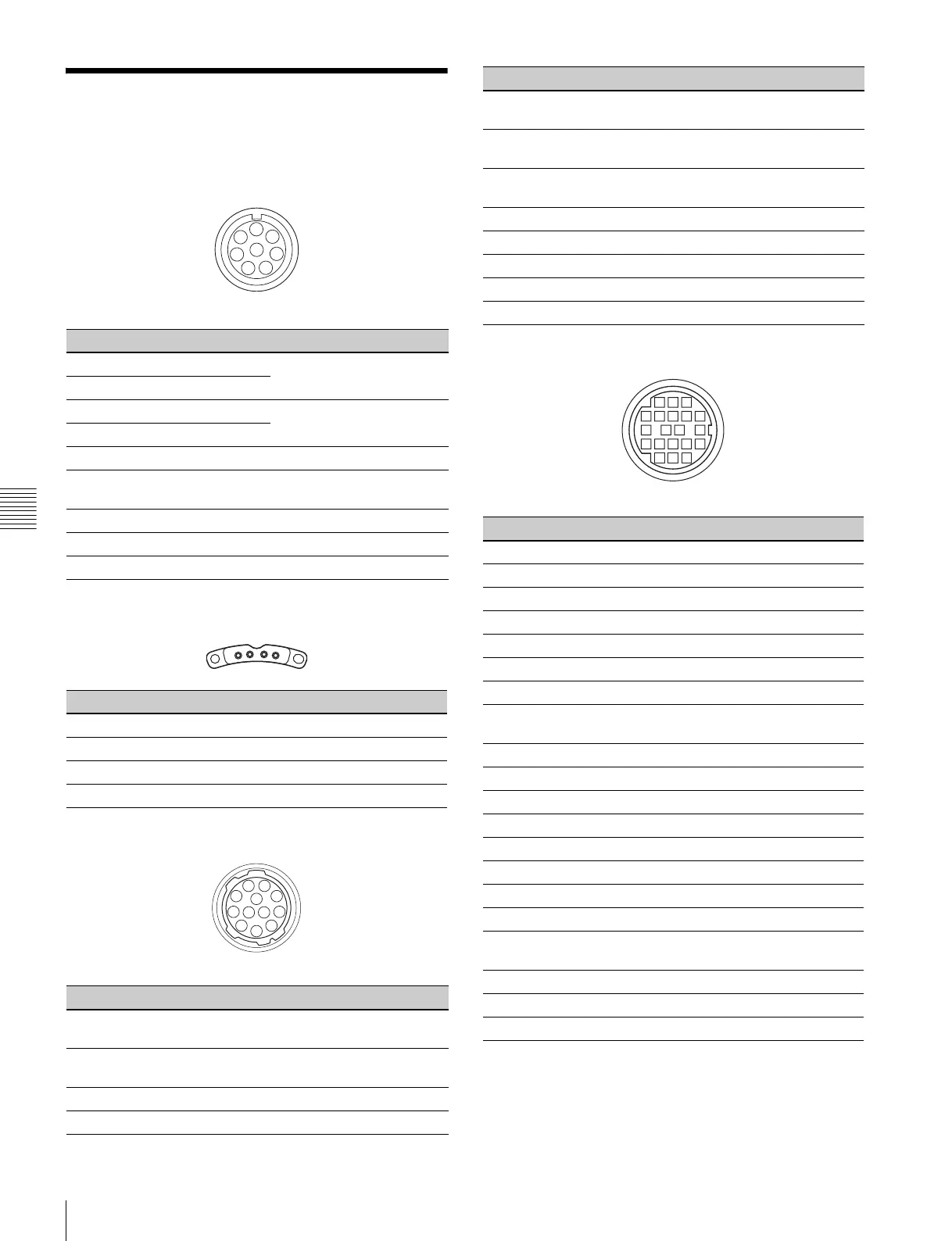

Connector Pin Assignments
Appendix
Connector Pin
Assignments
REMOTE (8-pin female)
Lens-mount hot shue (4-pin)
LENS (12-pin female)
VF (20-pin female)
No. Signal I/O Specifications
1TX (+) OUT SERIAL Data out
2TX (–)OUT
3RX (+) IN SERIAL Data in
4RX (–)IN
5 TX-GND — GND for TX
6 UNREG OUT +10.5 to +17 V dc, 200mA
(max)
7 UNREG-GND — GND for UNREG
8VIDEO OUT75Ω, 1.0 Vp-p
CHASSIS GND — CHASSIS GND
No. Signal I/O Specifications
1 RX IN SERIAL DATA in
2 TX OUT SERIAL DATA out
3 GND GND for +24 V
4 +24 V OUT +24 V, 200 mA (MAX)
No. Signal I/O Specifications
1 RET VIDEO
ENABLE
IN Not used
2 VTR START/
STOP
IN Not used
3 GND — GND for UNREG
4 — — Not used
1
7
8
2
54
36
(External View)
1
23
4
19
28
3
10
12 11
4
7
6
5
(External View)
5 IRIS CONT OUT +3.4 V (F16) to +6.2 V
(F2.8)
6 UNREG OUT +10.5 V to +17 V
500 mA (MAX)
7IRIS
POSITION
IN +3.4 V (F16) to +6.2 V
(F2.8)
8 — — Not used
9 — — Not used
10 — — Not used
11 NC No connection
12 NC No connection
No. Signal I/O Specifications
1 S-DATA IN/OUT TTL level
2 NC No connection
3 NC No connection
4 SCK OUT TTL level
5 NC No connection
6 NC No connection
7 NC No connection
8G TALLY OUT ON: 5 V
OFF: GND
9 NC No connection
10 NC No connection
11 NC No connection
12 Y VIDEO OUT 1.0 Vp-p, Zo=75Ω
13 VIDEO GND — GND for VIDEO
14 Pb VIDEO OUT ±0.35 Vp-p, Zo=75Ω
15 Pr VIDEO OUT ±0.35 Vp-p, Zo=75Ω
16 NC No connection
17 R TALLY OUT ON: 5 V
OFF: GND
18 NC No connection
19 UNREG GND — GND for UNREG
20 UNREG OUT +10.5 V to +17 V
No. Signal I/O Specifications
(External View)
123
181920
45678
1314151617
9101112
