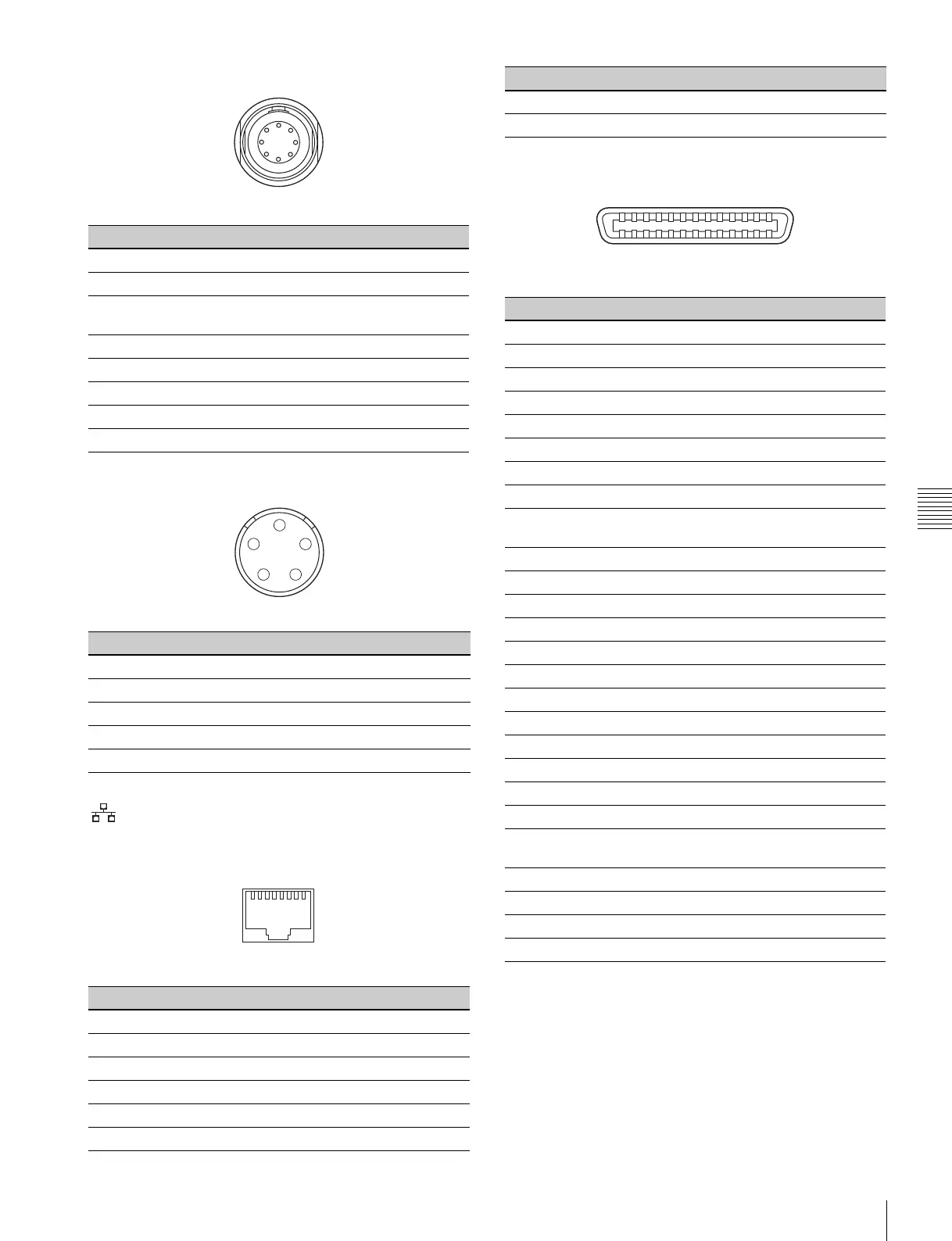

Connector Pin Assignments
Appendix
DC IN (8-pin male)
EXT I/O (5-pin female)
(Modular jack)
Conforming to IEEE 802.3u (100BASE-TX), IEEE802.3
(10BASE-T)
VF (for DVF-EL100) (26-pin)
No. Signal I/O Specifications
1 UNREG_GND — GND for +12 V
2 UNREG_GND — GND for +12 V
3 UNREG_GND (24
V)
— GND for +24 V
4 UNREG_24 V_IN IN +24 V
5 UNREG_12 V_IN IN +12 V
6 UNREG_12 V_IN IN +12 V
7 UNREG_12 V_IN IN +12 V
8 UNREG_GND — GND for +12 V
No. Signal I/O Specifications
1 EXT_CMD1_OUT OUT RS-232C
2 EXT_CMD0_OUT OUT
3 EXT_CMD1_IN IN
4 EXT_CMD0_IN IN
5GND —
No. Signal I/O Specifications
1TXD (+)OUT
2TXD (–)OUT
3RXD (+)IN
4NC —
5NC —
6RXD (–)IN
1
2
8
3
4
7
6
5
(External View)
1
2
3
4
5
(External View)
(External View)
18
7NC —
8NC —
No. Signal I/O Specifications
1SHIELD GND — GND
2 LVDS 1– OUT LDVS (–) output
3 LVDS 2– OUT LDVS (–) output
4 LVDS 3– OUT LDVS (–) output
5 LVDS CLK– OUT LDVS clock (–) output
6 LVDS 4– OUT LDVS (–) output
7 LVDS 5– OUT LDVS (–) output
8 VF ON IN VF ON signal input
9 SDAT I/O Serial data signal input/
output
10 UNREG OUT UNREG output
11 UNREG OUT UNREG output
12 GND — GND
13 GND — GND
14 GND — GND
15 LVDS 1+ OUT LDVS (+) output
16 LVDS 2+ OUT LDVS (+) output
17 LVDS 3+ OUT LDVS (+) output
18 LVDS CLK+ OUT LDVS clock (+) output
19 LVDS 4+ OUT LDVS (+) output
20 LVDS 5+ OUT LDVS (+) output
21 SRX OUT SDI signal output
22 SCLK OUT Serial data clock signal
output
23 UNREG OUT UNREG output
24 UNREG OUT UNREG output
25 GND — GND
26 SHIELD GND — GND
No. Signal I/O Specifications
(External View)
13 1
26 14
