– 10 –
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

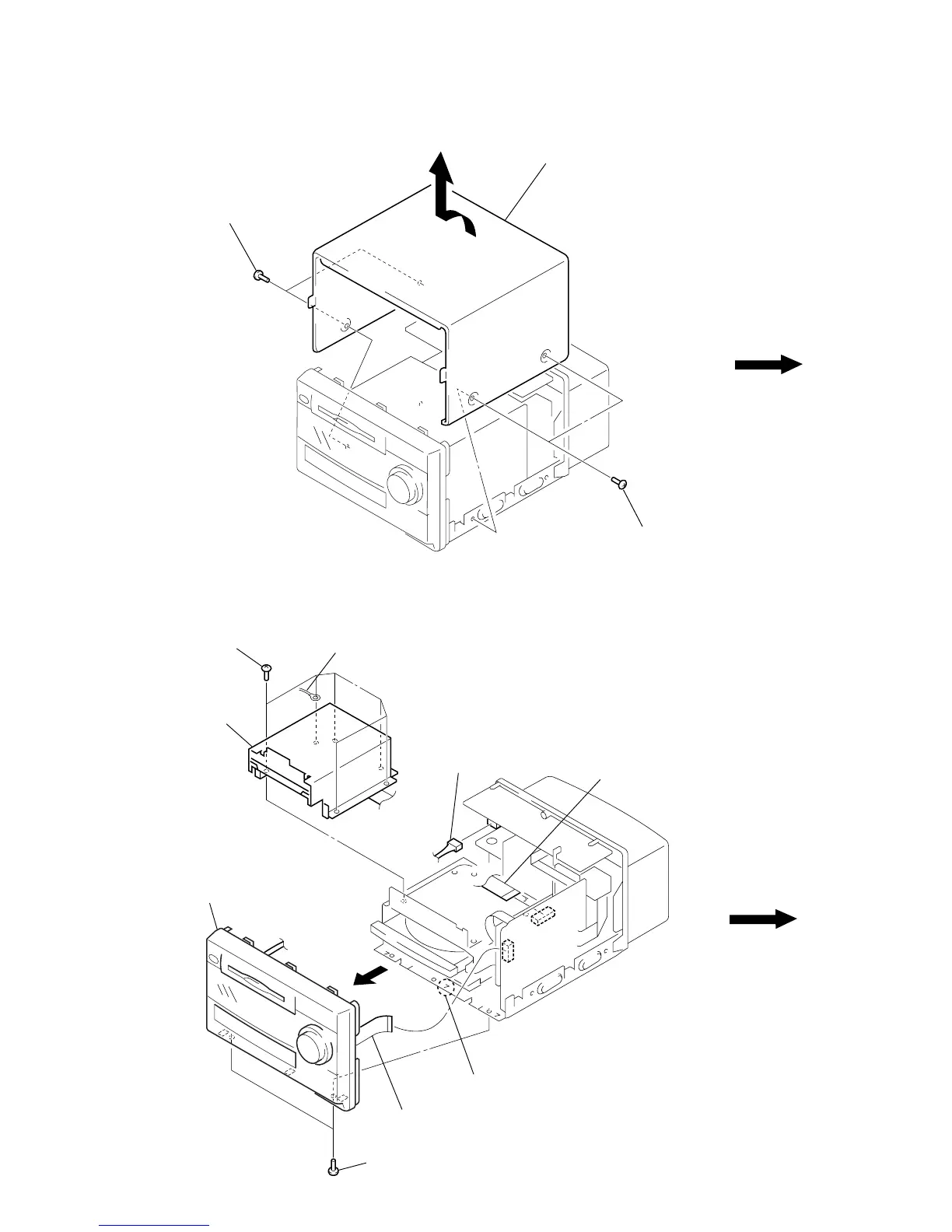

3-1. CASE
3-2. FRONT PANEL/MD MECHANISM DECK SECTION
1
Two screws
(CASE3 TP2)
2
Two screws
(CASE3 TP2)
3
Case
1
Two screws
(
BVTT3x6
)
2
Wire (flat type)(23core)
(CN873)
3
Connector
(CN490)
4
Claw
5
Front panel
6
Wire (flat type)(25core)
(CN820)
7
Six screws (BVTT3x6)
8
Wire
9
MD mechanism
