HCD-MD333
– 67 – – 68 –

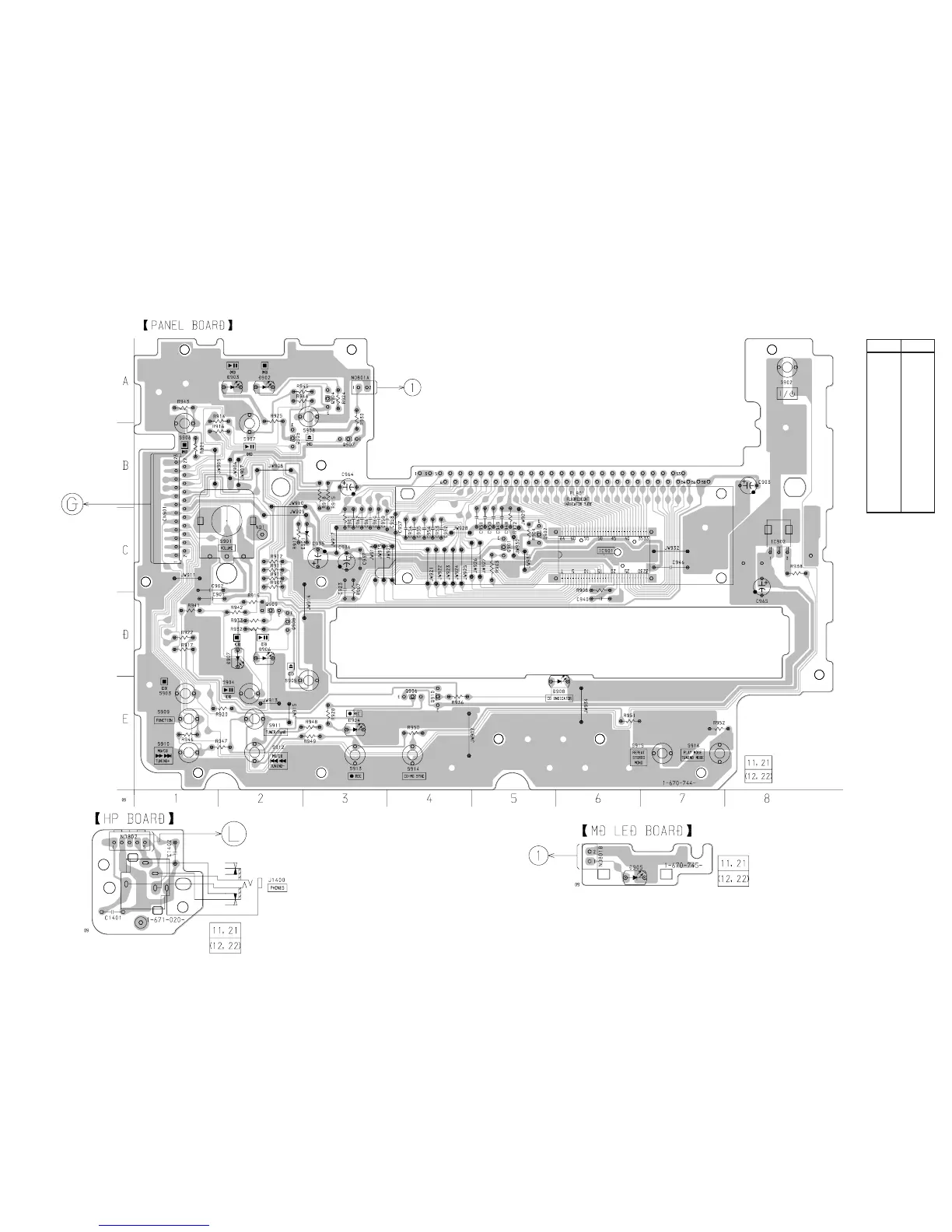

7-17. PRINTED WIRING BOARD – PANEL SECTION –
• See page 31 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D901 C-3
D902 A-2
D903 A-2
D904 E-3
D906 D-2
D907 D-2
D908 E-6
IC901 C-6
IC902 C-8
Q901 C-5
Q902 C-5
Q904 A-3
Q905 B-2
Q906 E-4
Q907 B-3
Q908 D-2
Q909 D-2
Q910 E-4
(Page 59)
(Page 71)
