– 12 –

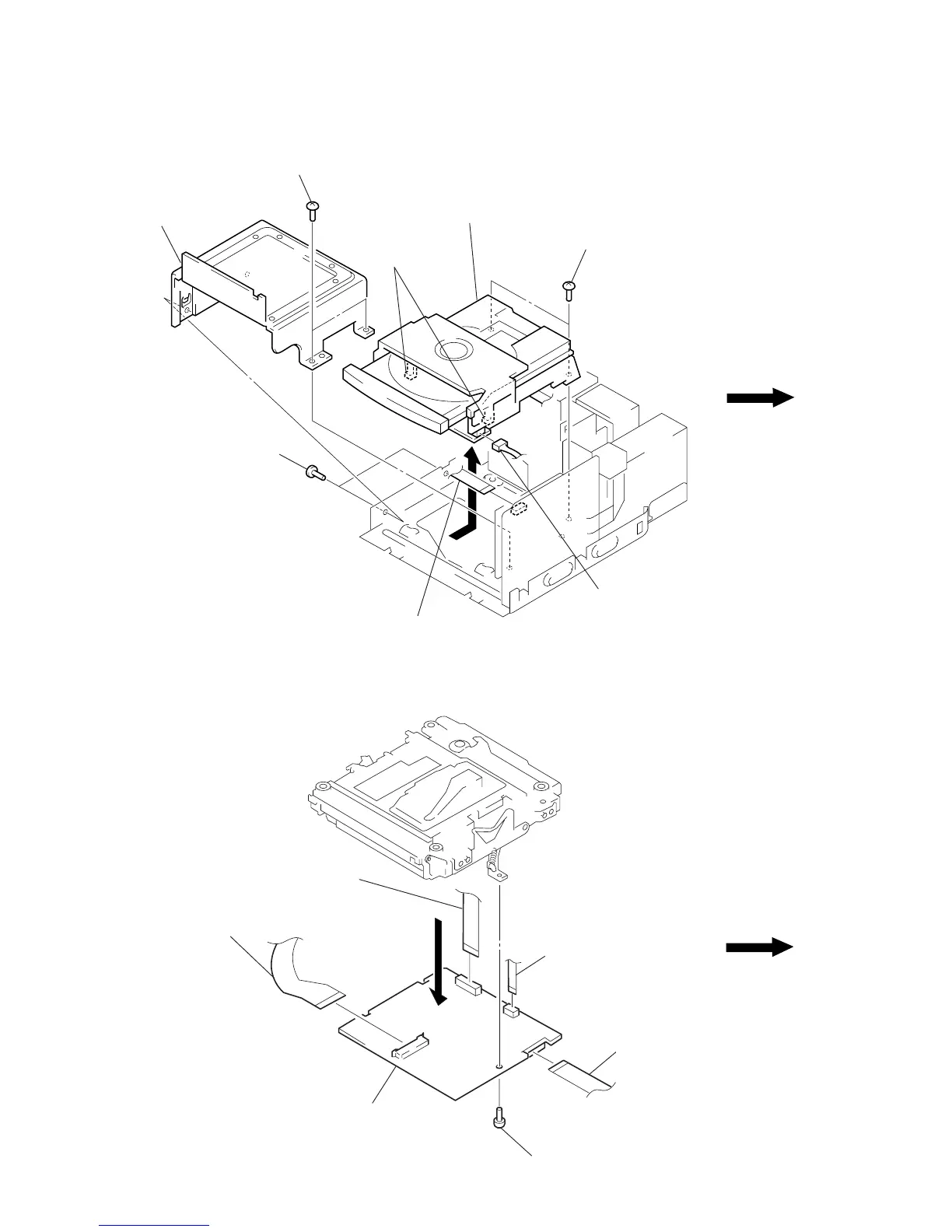

3-6. BD (MD) BOARD
3-5. CD MECHANISM DECK (CDM13C-5BD19)
1
Wire (flat type)(19core)
(CN801)
2
Connector
(CN291)
3
Two screws
(BVTT3x6)
4
Two screws
(BVTT3x6)
5
Bracket (CD)
6
Two screws
(BVTT3x6)
8
CD mechanism deck
(CDM13C-5BD19)
7
Two hooks
1
Wire (flat type)(25core)
(CN107)
3
Wire (flat type)(14core)
(CN106)
5
OP relay flexible board
(CN101)
6
BD board(MD)
4
Screw (BVTP2x4)
2
Flexible board
(over write head)
(CN104)
