HCD-MD333
– 51 – – 52 –
Ref. No. Location
• Semiconductor Location
D181 B-1
D183 B-1
IC101 B-3
IC103 B-4
IC121 C-4
IC124 D-4
IC152 A-4
IC153 A-1
IC171 A-3
IC181 B-1
IC201 D-3

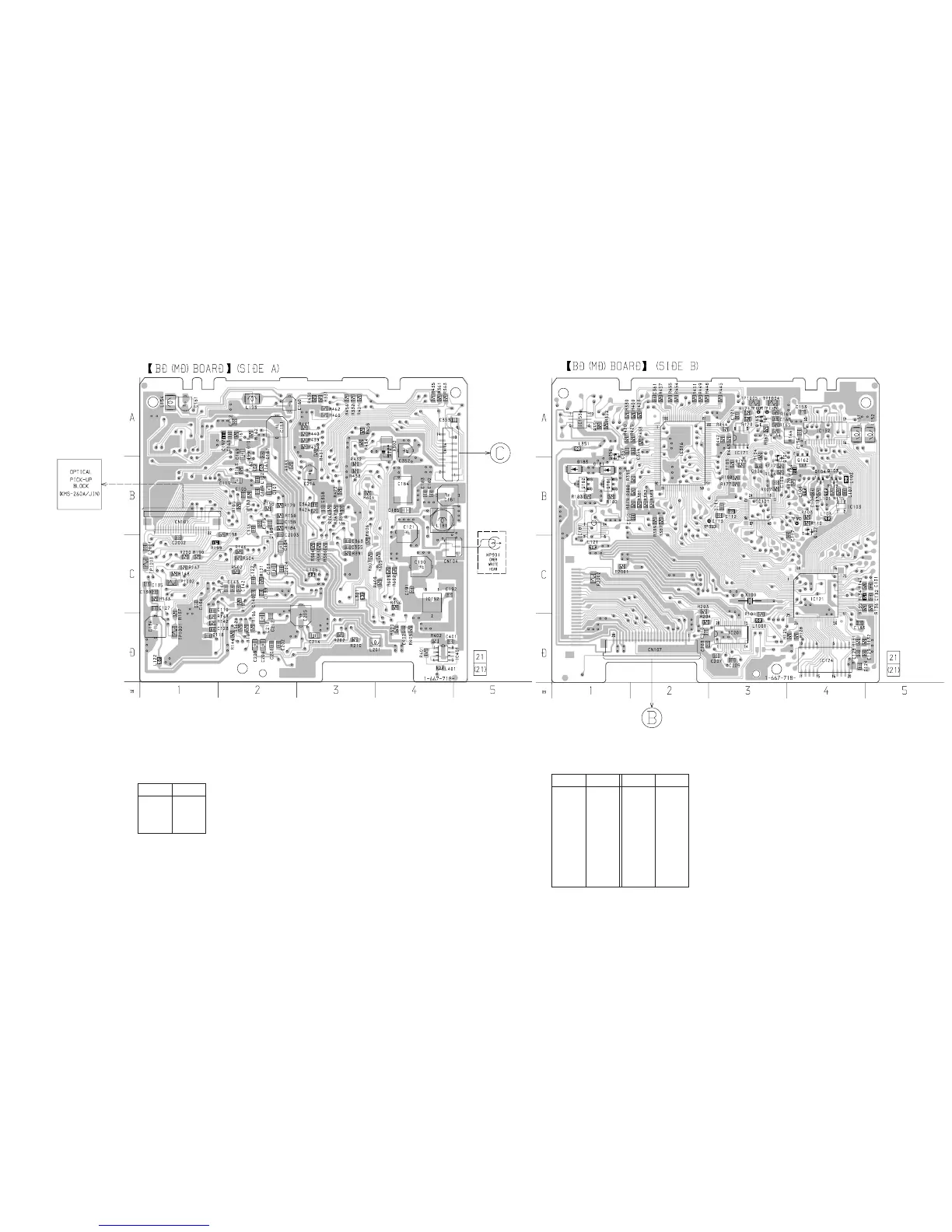

7-8. PRINTED WIRING BOARD – MD SECTION –
• See page 31 for Circuit Boards Location.
IC316 A-2
Q101 B-3
Q102 B-4
Q103 B-4
Q104 B-4
Q162 B-4
Q163 A-3
Q181 B-1
Q182 B-1
Q350 A-1
Ref. No. Location
• Semiconductor
Location
Ref. No. Location
D101 A-2
IC192 C-4
IC401 D-4
(Page 54)
(Page 59)
