– 16 –

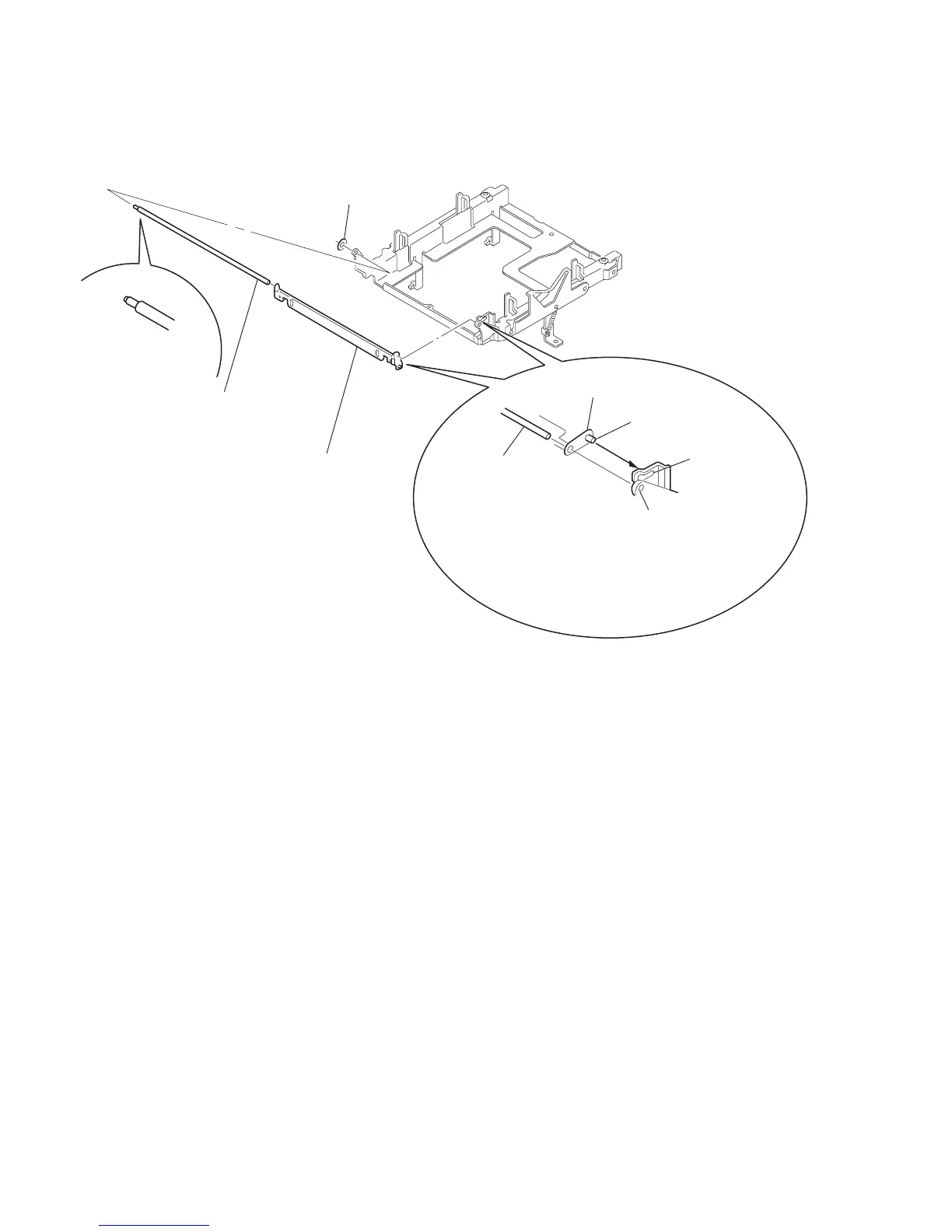

3-12. SHUTTER ASSY
1
Stopper washer
2
Shaft (shutter) A
3
Shutter assembly
Shaft (shutter) A
shutter assembly
Shaft (shutter) B
Hole B
Hole A
When installing, install the shaft (shutter) A into the hole as
show in the figure before installing the shaft (shutter) B into
the hole B.
