HCD-MD333
– 47 – – 48 –

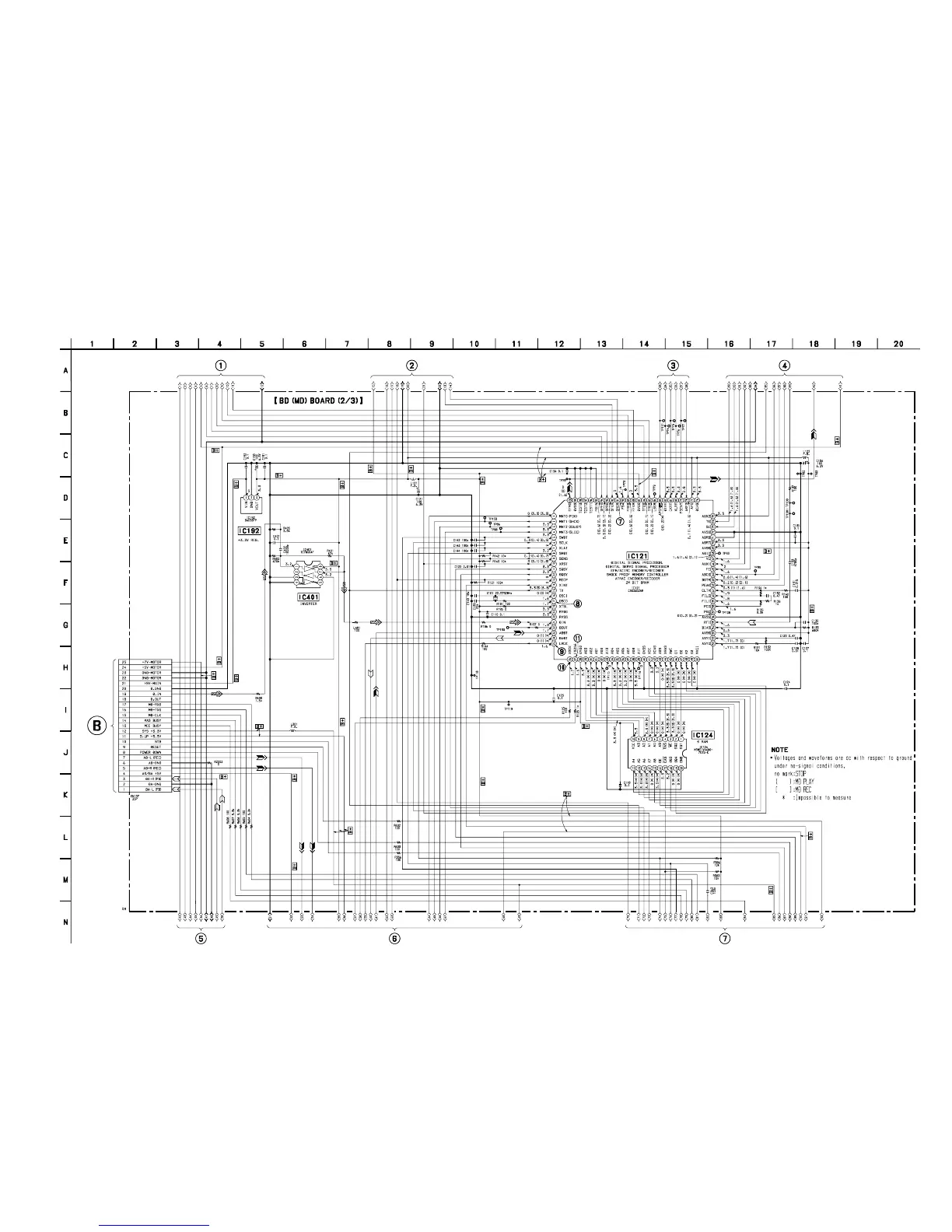

7-6. SCHEMATIC DIAGRAM – MD (2/3) SECTION –
• See page 40 for Waveforms.
• See page 51 for Printed Wiring Board.
• See page 85 for IC Block Diagrams.
• See page 89 for IC Pin Functions.
(Page 45) (Page 45) (Page 46) (Page 46)
(Page 49) (Page 49) (Page 50)
(Page 55)
