– 99 –

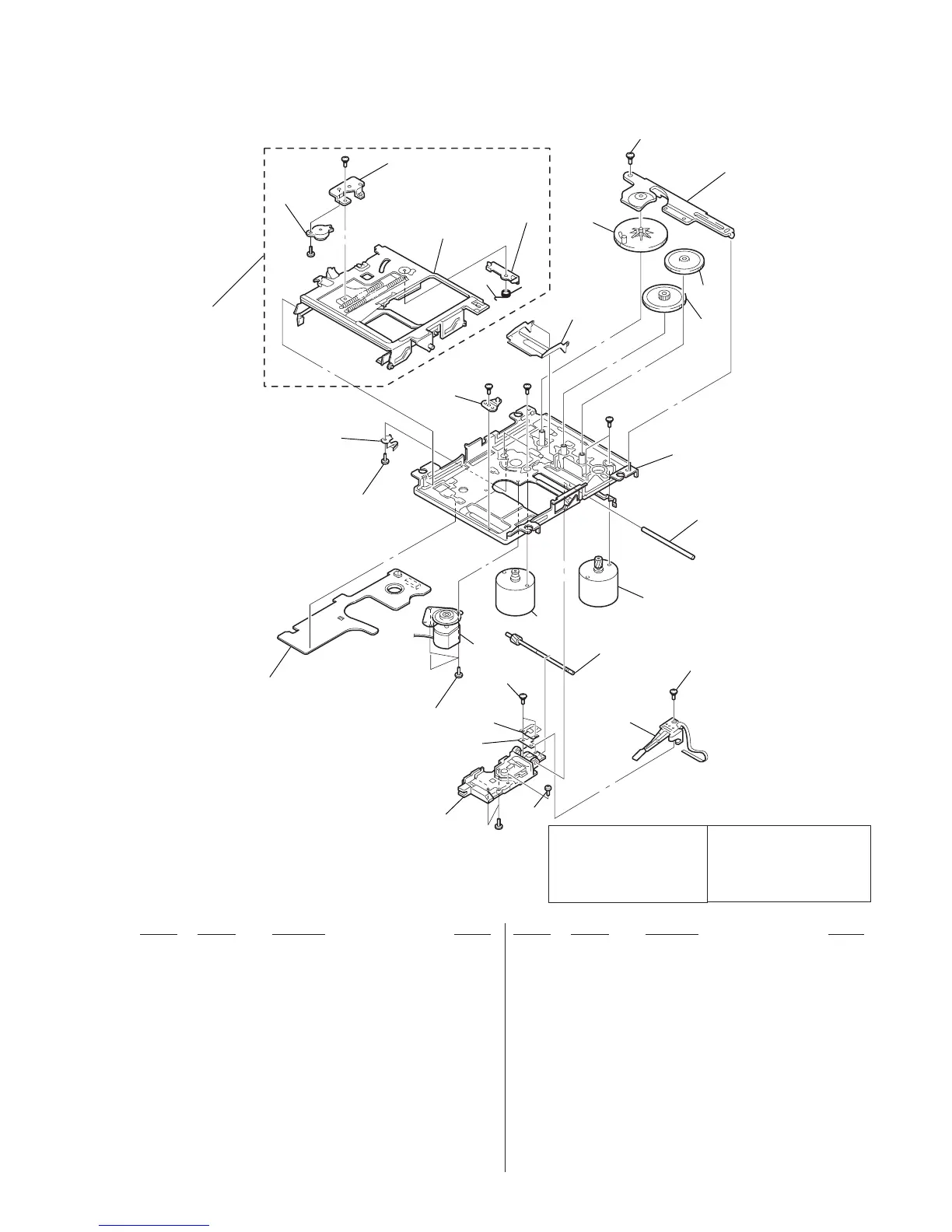

8-4. MD MECHANISM DECK SECTION-2 (MDM-3J)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-4672-138-A SLIDER COMPLETE ASSY
* 152 4-983-439-01 BRACKET (DAMPER)
153 3-953-235-01 DAMPER, OIL
154 4-979-901-21 LEVER (LIMITTER)
155 3-342-375-11 SCREW (M1.7X1.4), SPECIAL
156 4-979-890-11 RET AINER (GEAR)
157 4-979-898-01 GEAR (LB)
158 4-979-899-01 GEAR (LC)
159 4-979-897-01 GEAR (LA)
160 4-979-885-01 LEVER (HEAD UP)
161 4-979-906-11 SPRING (LEAD SCREW)
162 4-984-556-01 SHAFT (MAIN SHAFT)
* 163 1-667-719-11 SW BOARD
164 A-3304-200-A SCREW ASSY , LEAD
165 4-963-914-02 RACK (INSER TER)
166 3-366-890-11 SCREW (M1.4)
!167 8-583-028-02 OPTICAL PICK-UP KMS-260A/J1N (for MD)
168 4-987-061-01 SPACER (RACK)
169 4-988-560-01 SCREW (+P 1.7X6)
170 4-955-841-11 SCREW
171 4-979-914-01 SPRING (CLV), TORSION
* 172 4-983-511-02 PIN (OUTSER T)
* 173 4-983-437-01 SLIDER (CAM)
HR901 1-500-396-11 HEAD, OVER LIGHT (RF325-74A)
M901 A-4672-135-A MOTOR ASSY , SPINDLE
M902 A-4672-133-A MOTOR ASSY , SLED
M903 A-4672-134-A MOTOR ASSY , LOADING (MD)
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
151
153
152
154
173
161
155
163
155
165
168
167
170
166
164
162
160
171
159
155
156
158
157
169
HR901
#8
M901
M903
#7
#7
#13
172
#5
#5
M902
not supplied
Ver 1.1 2001.06
