– 97 –

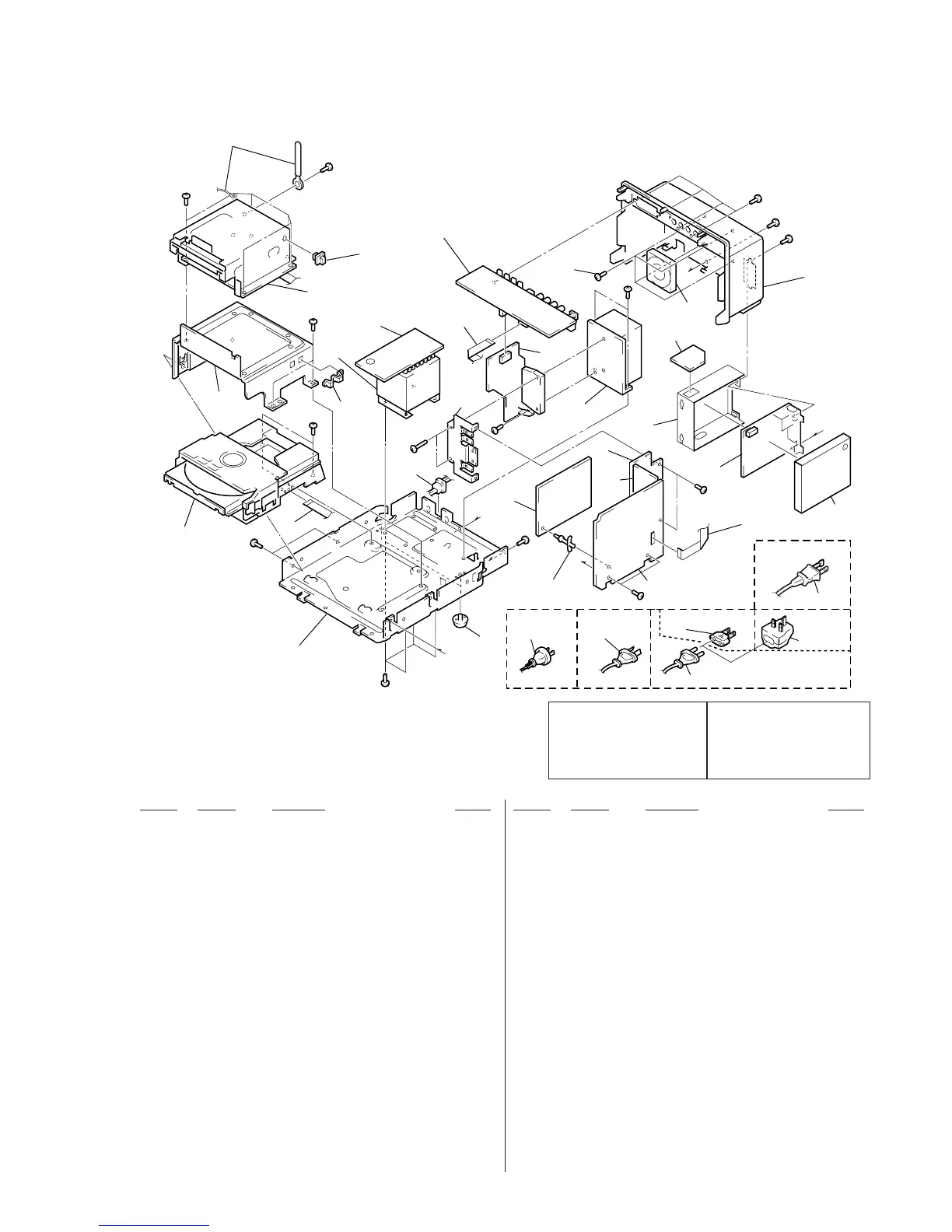

8-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
* 63 4-984-204-11 PLATE (ST-B), SHIELD
64 1-783-213-11 WIRE (FLAT TYPE) (15 CORE)
* 65 A-4417-124-A MAIN BOARD, COMPLETE (AEP,UK,EE)
* 65 A-4417-128-A MAIN BOARD, COMPLETE (MY,SP,JE,HK,AR,AUS)
* 65 A-4417-132-A MAIN BOARD, COMPLETE (US,CND)
* 66 4-924-098-91 HOLDER, PC BOARD
* 67 A-4414-818-A AUDIO BOARD, COMPLETE (AEP,UK,EE)
* 67 A-4414-821-A AUDIO BOARD, COMPLETE
(MY,SP,JE,HK,AR,AUS)
* 67 A-4414-824-A AUDIO BOARD, COMPLETE (US,CND)
! 68 1-569-008-21 ADAPTOR, CONVERSION 2P (MY,SP,JE)
! 69 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)
* 70 4-988-533-01 HOLDER, PWB
! CNP1601 1-696-847-11 CORD, POWER (AUS)
! CNP1601 1-769-744-11 CORD, POWER (EXCEPT US,CND,AR,AUS)
! CNP1601 1-783-532-11 CORD, POWER (US,CND)
! CNP1601 1-783-941-11 CORD, POWER (AR)
FAN901 1-698-997-11 FAN, D.C.
! T1600 1-431-498-11 TRANSFORMER, POWER (MY,SP,JE,HK,AR,AUS)
! T1600 1-431-988-11 TRANSFORMER, POWER (AEP,UK,EE)
! T1600 1-431-989-11 TRANSFORMER, POWER (US,CND)
51 4-993-867-01 FOOT (8)
52 1-782-990-11 WIRE (FLAT TYPE) (19 CORE)
53 3-703-244-00 BUSHING (2104), CORD
* 54 1-666-904-11 TRANS BOARD
* 55 A-4417-126-A POWER AMP BOARD, COMPLETE (AEP,UK,EE)
* 55 A-4417-130-A POWER AMP BOARD, COMPLETE
(MY,SP,JE,HK,AR,AUS)
* 55 A-4417-134-A POWER AMP BOARD, COMPLETE (US,CND)
56 1-782-991-11 WIRE (FLAT TYPE) (15 CORE)
* 57 A-4414-823-A JACK BOARD, COMPLETE (MY,SP,JE,HK,AR,AUS)
* 57 A-4414-826-A JACK BOARD, COMPLETE (US,CND)
* 57 A-4414-830-A JACK BOARD, COMPLETE (AEP,UK,EE)
58 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
* 59 4-993-849-52 PANEL, BACK (AEP,UK,EE)
* 59 4-993-849-61 PANEL, BACK (MY,SP,JE,HK,AR,AUS)
* 59 4-993-849-71 PANEL, BACK (US,CND)
* 60 1-666-905-11 ST TERMINAL BOARD
* 61 4-984-203-21 PLATE (ST-A), SHIELD
62 1-233-544-21 ENCAPSULATED COMPONENT (US,CND)
62 1-233-546-21 ENCAPSULATED COMPONENT
(MY,SP,JE,HK,AR,AUS)
62 1-693-387-21 TUNER (FM/MW/LW)(AEP,UK,EE)
MDM-3J
not
supplied
not
supplied
not supplied
CDM13C-5BD19
#4
#1
CNP1601
CNP1601
#2
T1600
#2
#4
EXCEPT US,CND,ARARAUS
MY, SP, JE
UK,HK
US,CND
#4
#1
#1
FAN901
#4
#4
#2
#2
#2
not
supplied
not
supplied
#3
#4
not supplied
52
53
54
70
56
55
58
59
63
64
69
68
65
(including r A, r B)
62
61
60
57
51
66
67
B
A
B
C
A
C
r A
r B
CNP1601CNP1601
