HCD-MD333
– 45 – – 46 –

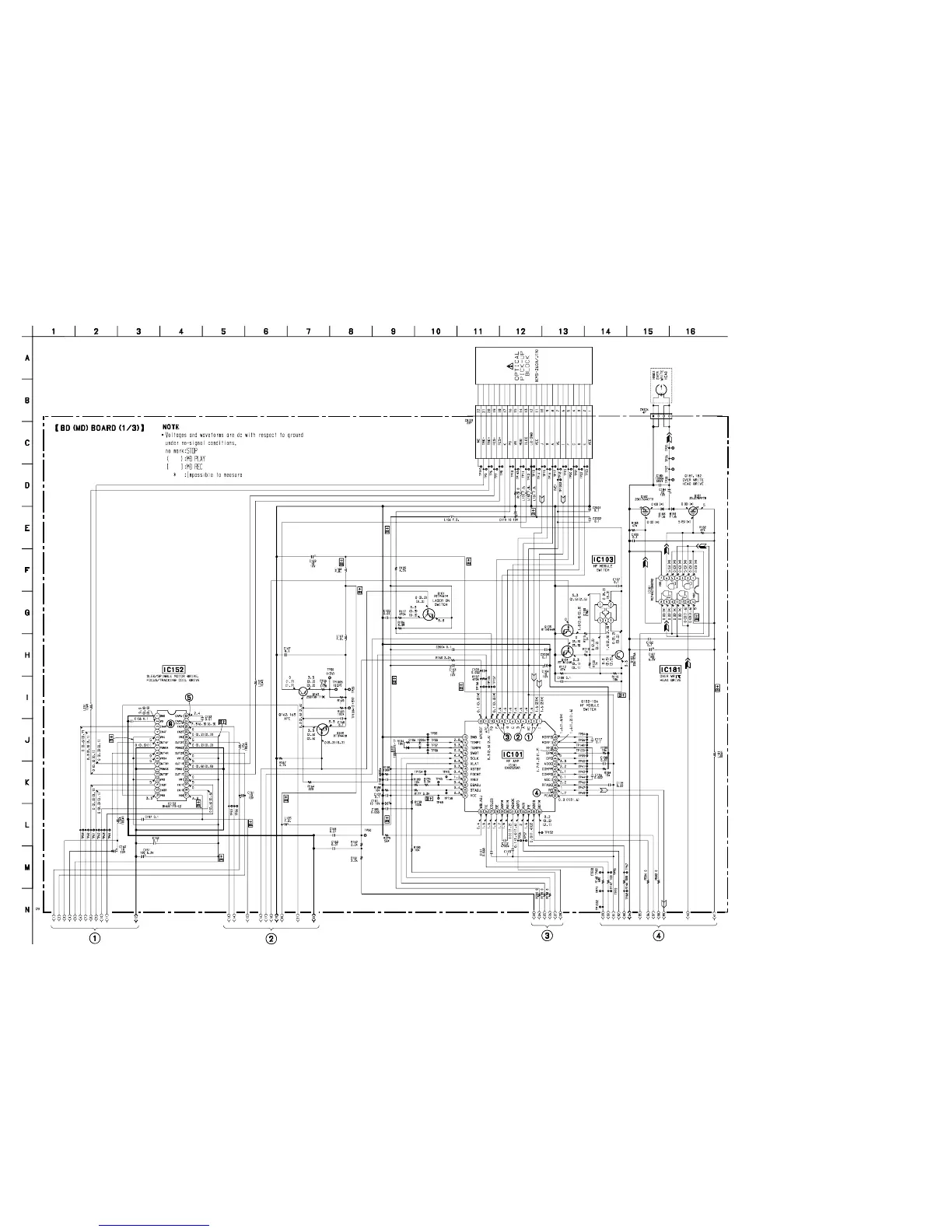

7-5. SCHEMATIC DIAGRAM – MD (1/3) SECTION –
• See page 40 for Waveforms.
• See page 51 for Printed Wiring Board.
(Page 47) (Page 47)
(Page 48) (Page 48)
• See page 84 for IC Block Diagrams.
• See page 88 for IC Pin Functions.
