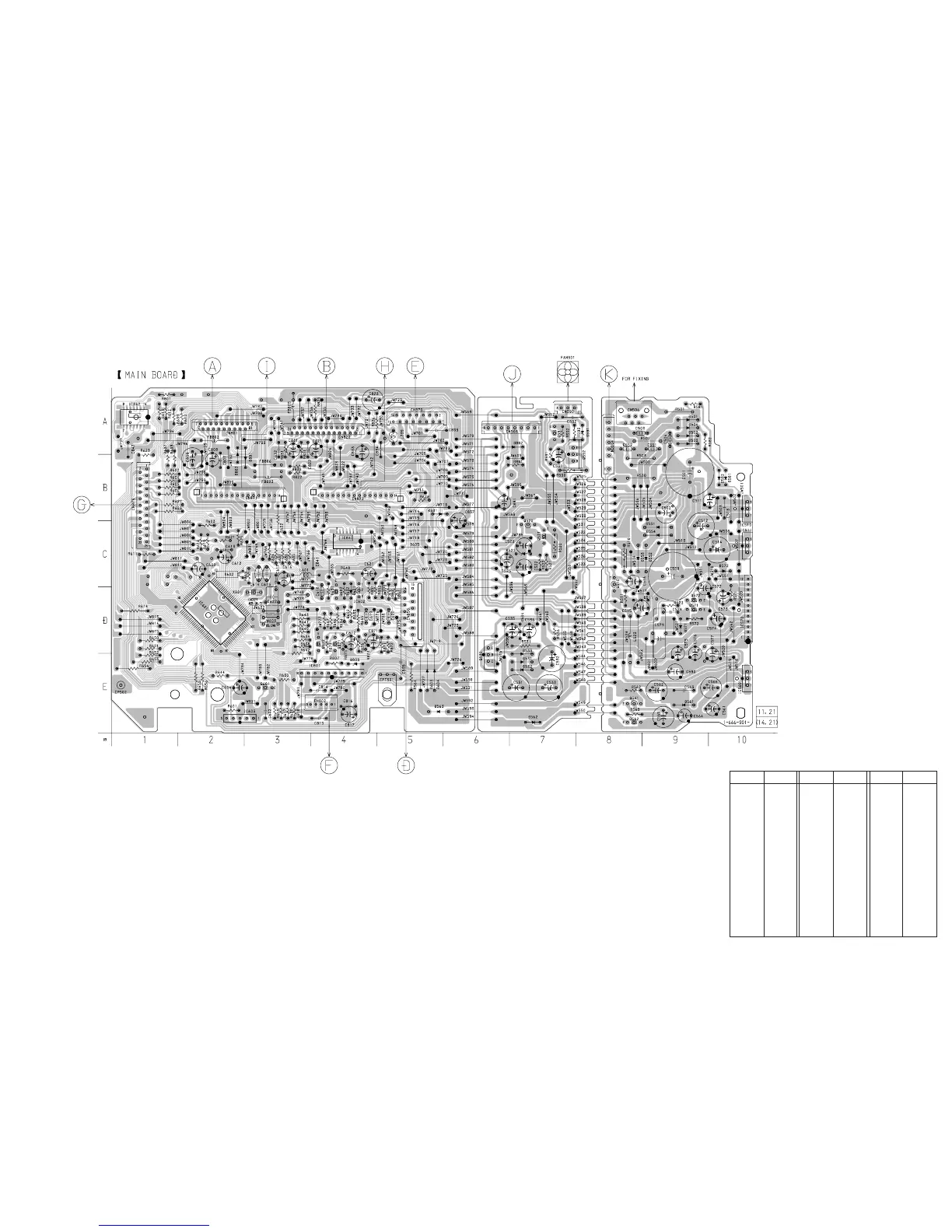

7-13. PRINTED WIRING BOARD – MAIN SECTION –
• See page 31 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
D501 A-9
D502 A-9
D503 A-9
D504 A-9
D511 D-9
D521 C-7
D531 E-7
D532 E-7
D533 D-7
D534 D-7
D551 C-9
D552 C-9
D553 C-9
D554 C-9
D561 E-9
D562 E-7
D563 E-5
D571 D-9
D572 C-10
D581 B-10
D582 B-10
D591 A-8
D601 D-4
D602 D-4
D603 E-5
D604 E-5
D605 C-5
D801 A-3
D802 B-2
D803 D-4
D881 B-5
D882 A-7
IC510 C-10
IC511 C-10
IC560 E-10
IC601 D-2
IC602 D-4
Ref. No. Location
IC603 E-3
IC801 E-4
IC840 C-4
IC842 A-1
Q510 C-8
Q520 C-7
Q521 C-7
Q530 E-6
Q561 E-8
Q562 E-8
Q571 D-9
Q572 D-9
Q591 A-7
Q592 A-8
Q601 E-3
Q602 D-4
Q871 D-4
Q872 D-4
Ref. No. Location
(Page 44) (Page 63) (Page 52) (Page 64) (Page 72)
(Page 79) (Page 76)
(Page 67)
(Page 74) (Page 74)
