HCD-MD333
– 43 – – 44 –

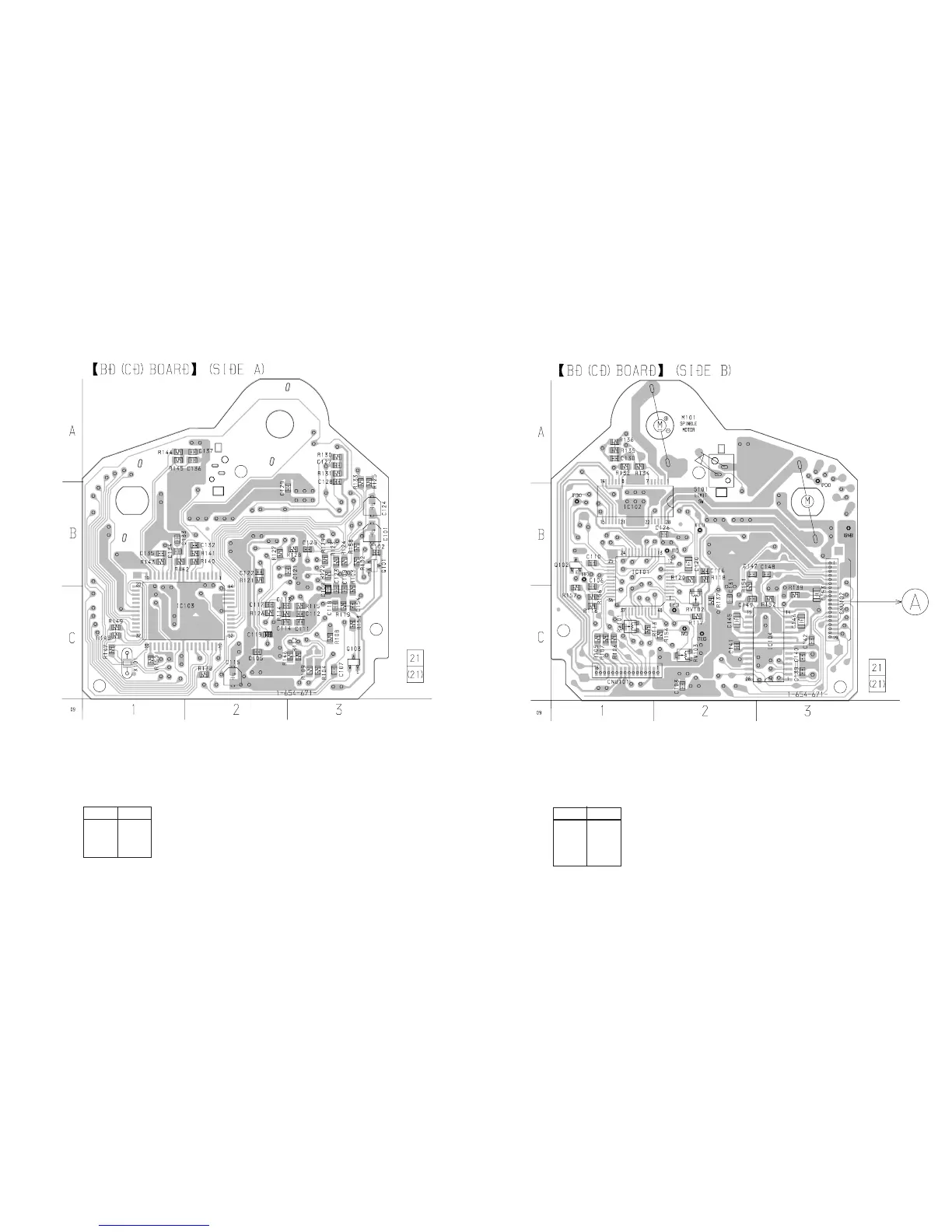

7-4. PRINTED WIRING BOARD – CD SECTION –
• See page 31 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
IC103 C-1
Q101 B-3
Q103 C-3
Ref. No. Location
• Semiconductor
Location
IC101 B-1
IC102 B-1
IC104 C-3
Q102 B-1
(Page 59)
