– 101 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

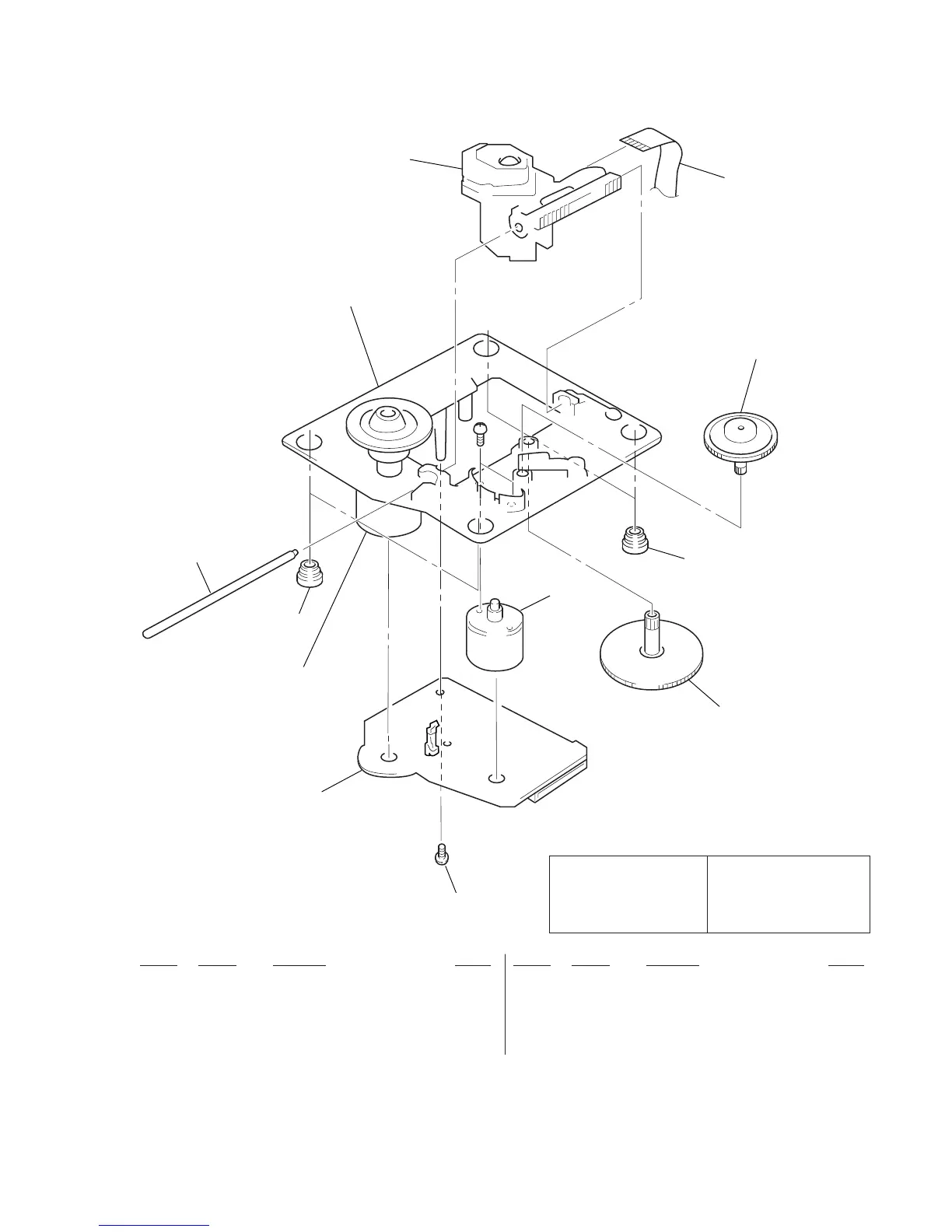

8-6. CD MECHANISM DECK SECTION-2 (BU-5BD19)
251 4-951-620-01 SCREW (2.6X8), +BVTP
* 252 A-4673-402-A BD (CD) BOARD, COMPLETE
253 4-917-565-01 SHAFT, SLED
254 4-951-940-01 INSULATOR (BU)
! 255 8-848-379-31 OPTICAL PICK-UP KSS-213B/K-N (for CD)
256 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
257 4-917-567-01 GEAR (M)
258 4-917-564-01 GEAR (P), FLATNESS
M101 X-4917-523-4 BASE (OUTSART) ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
255
256
257
254
M102
258
251
252
254
M101
(including
r
C)
253
r
C
#12
