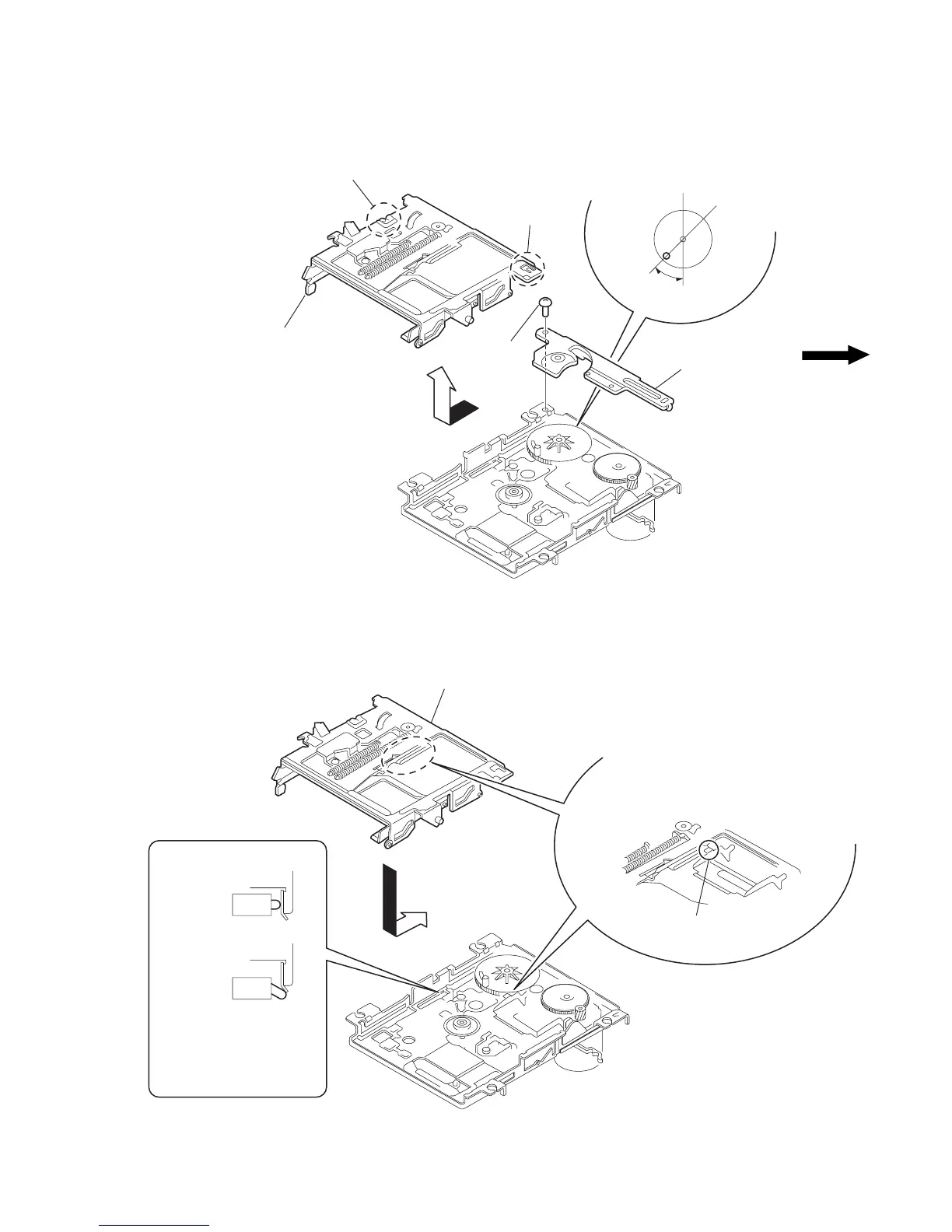

3-11. SLIDER COMPLETE ASSY
• Note for installation of Slider complete assembly
1
Special screw
(M1.7x1.4)
2
Retainer (gear)
3
Set the shaft of gear (LB) to be at the
position in the figure.
4
Remove the slider complete assembly
in the direction of arrow with putting out
of two claws.
45˚
Claw
Claw
Slider assembly
Part A
Install the part A of lever (head up)
to pass over the slider complete assembly.
OK
NG
Take care not to damage the
detective switch.
