HCD-MD333
– 63 – – 64 –

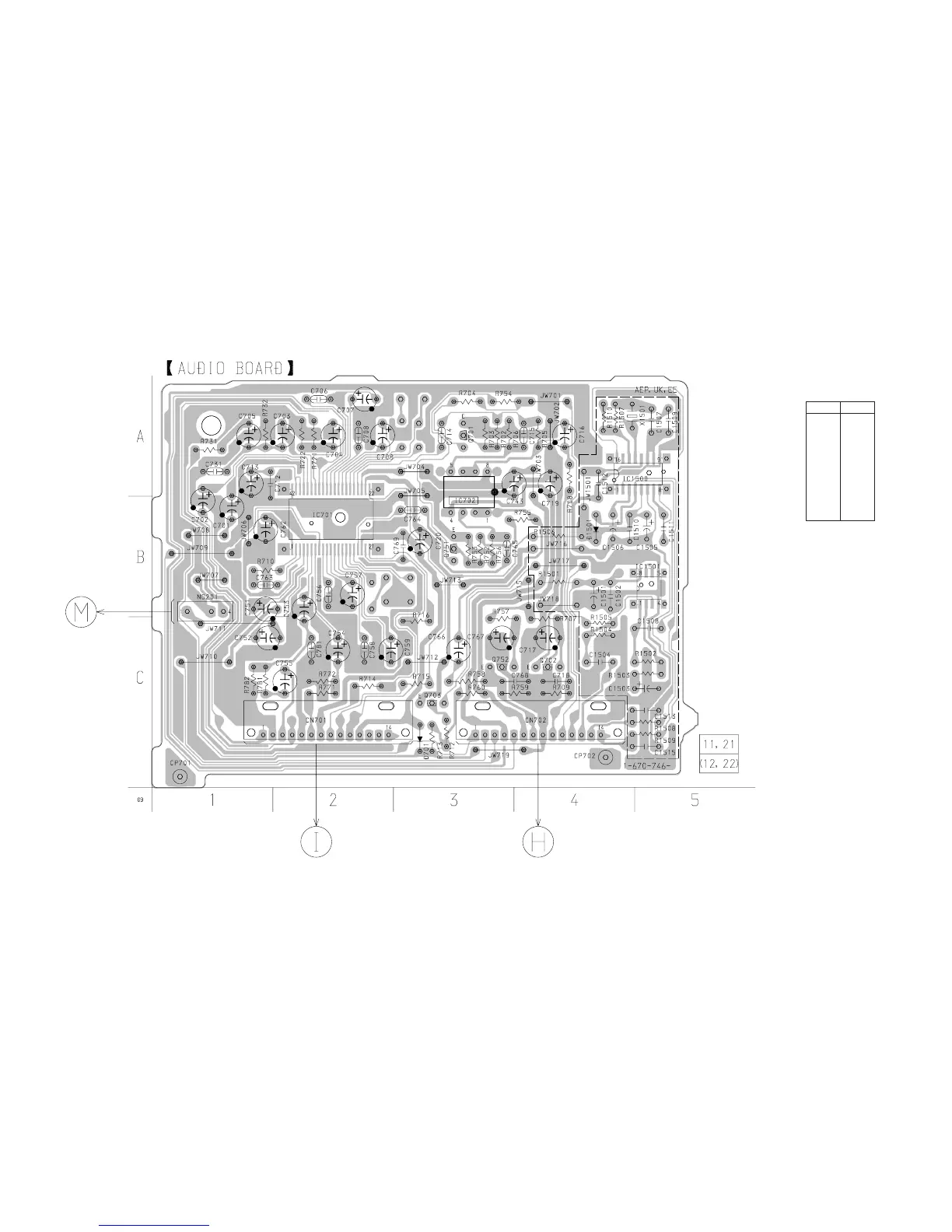

7-15. PRINTED WIRING BOARD – AUDIO SECTION –
• See page 31 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D701 C-3
D1501 B-4
IC701 B-2
IC702 B-3
IC1500 A-4
IC1501 B-5
Q701 A-3
Q702 C-4
Q703 C-3
Q751 B-3
Q752 C-3
(Page 72)
(Page 59) (Page 59)
