– 96 –
SECTION 8
EXPLODED VIEWS

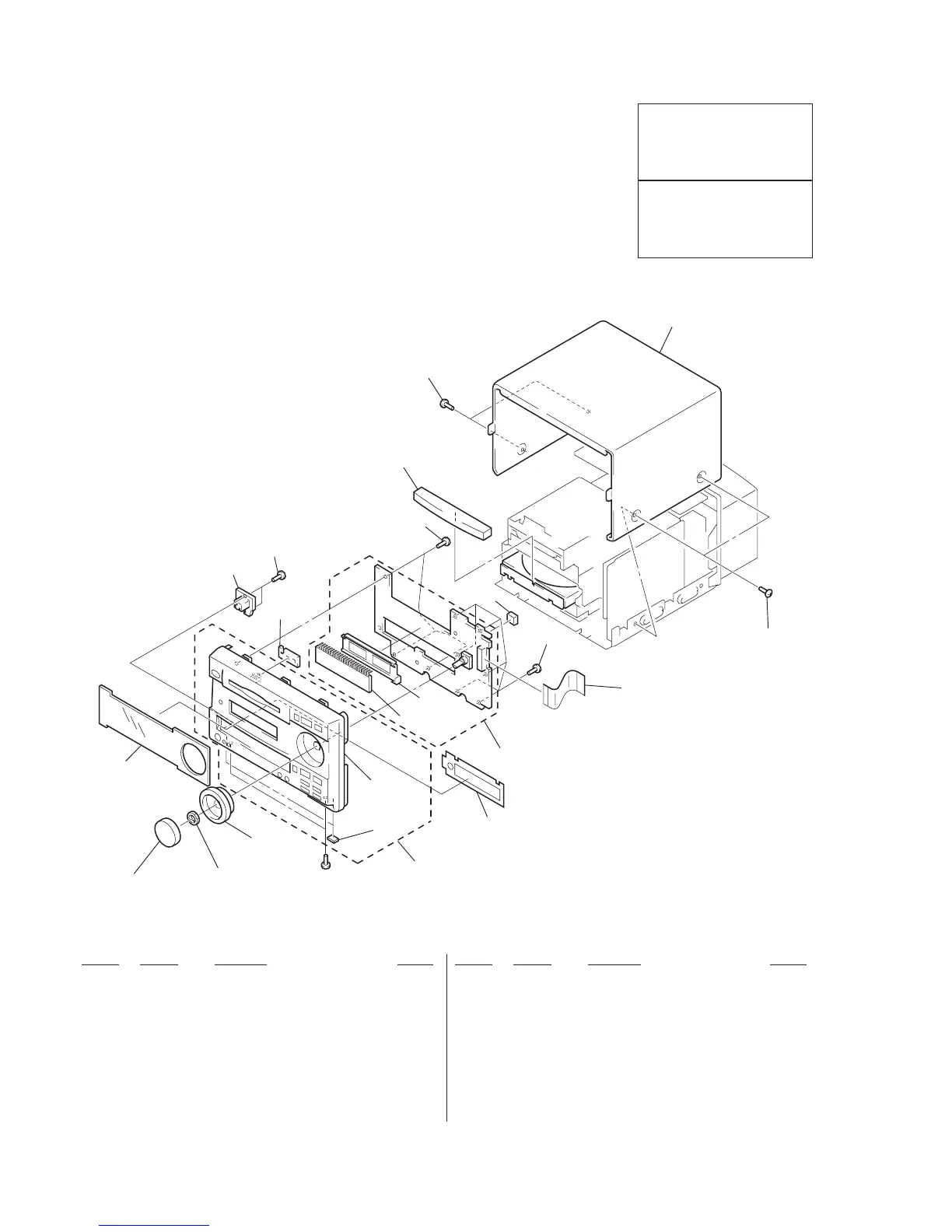

8-1. FRONT PANEL SECTION
NOTE:
Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
The mechanical parts with no reference number in
the exploded views are not supplied.
Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
Abbreviation
CND : Canadian model
EE : East European model
HK : Hong Kong model
SP : Singapore model
MY : Malaysia model
AR : Argentine model
AUS : Australian model
JE : Tourist model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
10 1-782-793-11 WIRE (FLAT TYPE) (23 CORE)
11 4-210-902-01 PANEL, LOADING
12 3-363-099-11 SCREW (CASE 3 TP2)
* 13 4-993-866-21 HOLDER (FL)
14 4-212-098-01 FILTER
15 4-210-890-11 WINDOW (FL)(AEP,UK,EE)
15 4-210-890-21 WINDOW (FL)(EXCEPT AEP,UK,EE)
FL901 1-517-687-11 INDICATOR TUBE, FLUORESCENT
1 4-210-901-01 KNOB (VOL)
2 4-210-903-01 ORNAMENT (VOL)
* 3 4-993-842-01 CASE
4 X-4950-225-1 PANEL ASSY, FRONT
* 5 1-671-020-21 HP BOARD
* 6 4-930-336-71 FOOT (FELT)
* 7 1-670-745-21 MD LED BOARD
8 4-951-620-01 SCREW (2.6X8), +BVTP
* 9 A-4417-317-A PANEL BOARD, COMPLETE
1
2
4
15
6
9
13
8
10
14
5
8
11
12
3
12
not
supplied
FL901
not
supplied
supplied with S901
#4
7
8
