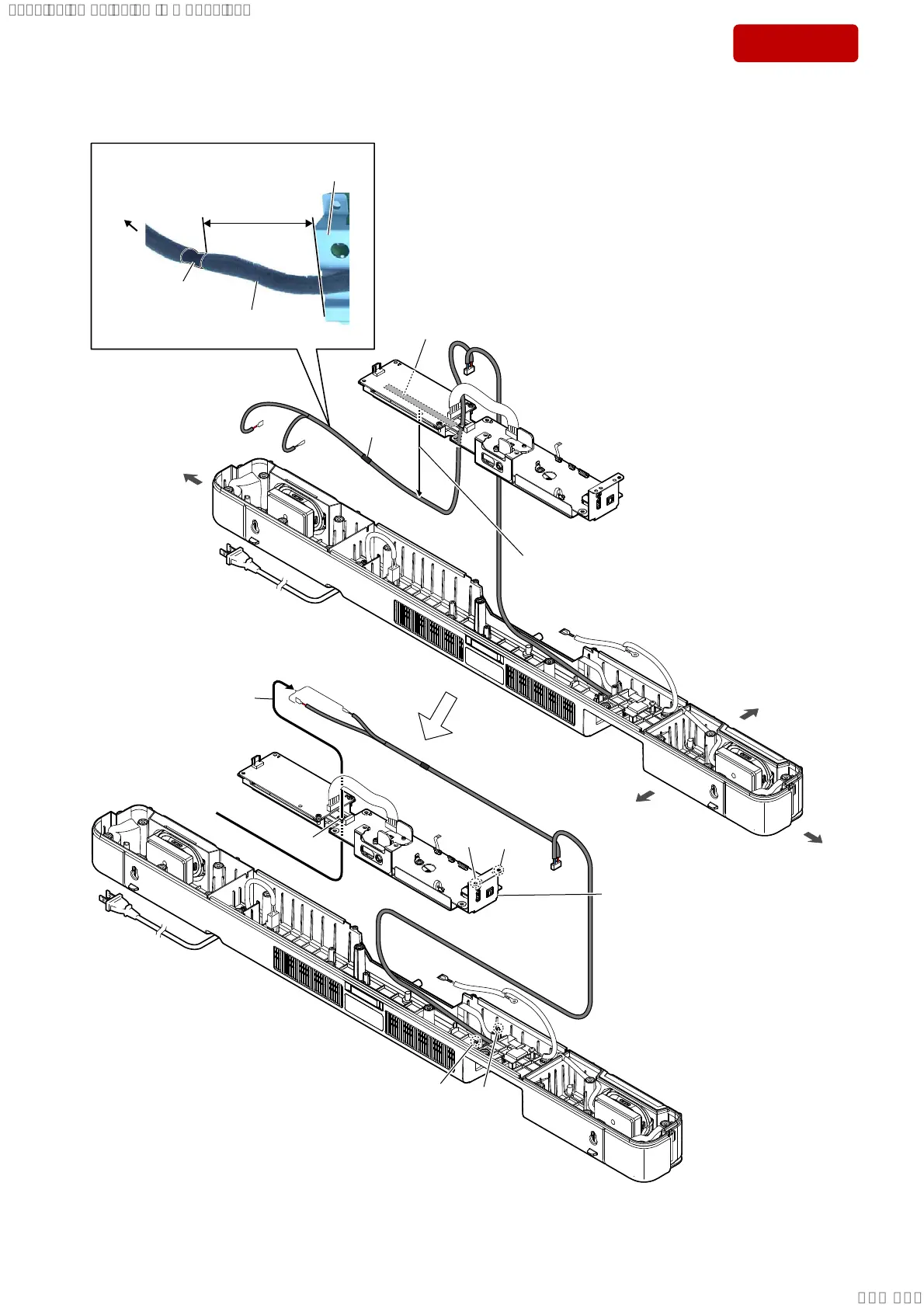

2-13. CHASSIS BLOCK-3
2 Draw the speaker cable
out of the hole.
hole
hole
boss
boss
hole
left side
90 ± 3 mm
tape portion
speaker unit
(for R-ch)
metal chassis
speaker cable
– Bottom view –
double-sided
tape
 3DVtiQJ SoVitioQ oI tKe VSeDNeU FDEOe
front side
rear side
right side
1 Peel the speaker cable
off of the metal chassis.
tape
portion
3 chassis block
Note:
When installing the chassis block,
align the two bosses and two holes.
