Sony SA-SD35 - Speaker Unit (CA1_SW)

SA-WS350/WSD35
18
Sony CONFIDENTIAL
For Authorized Servicer

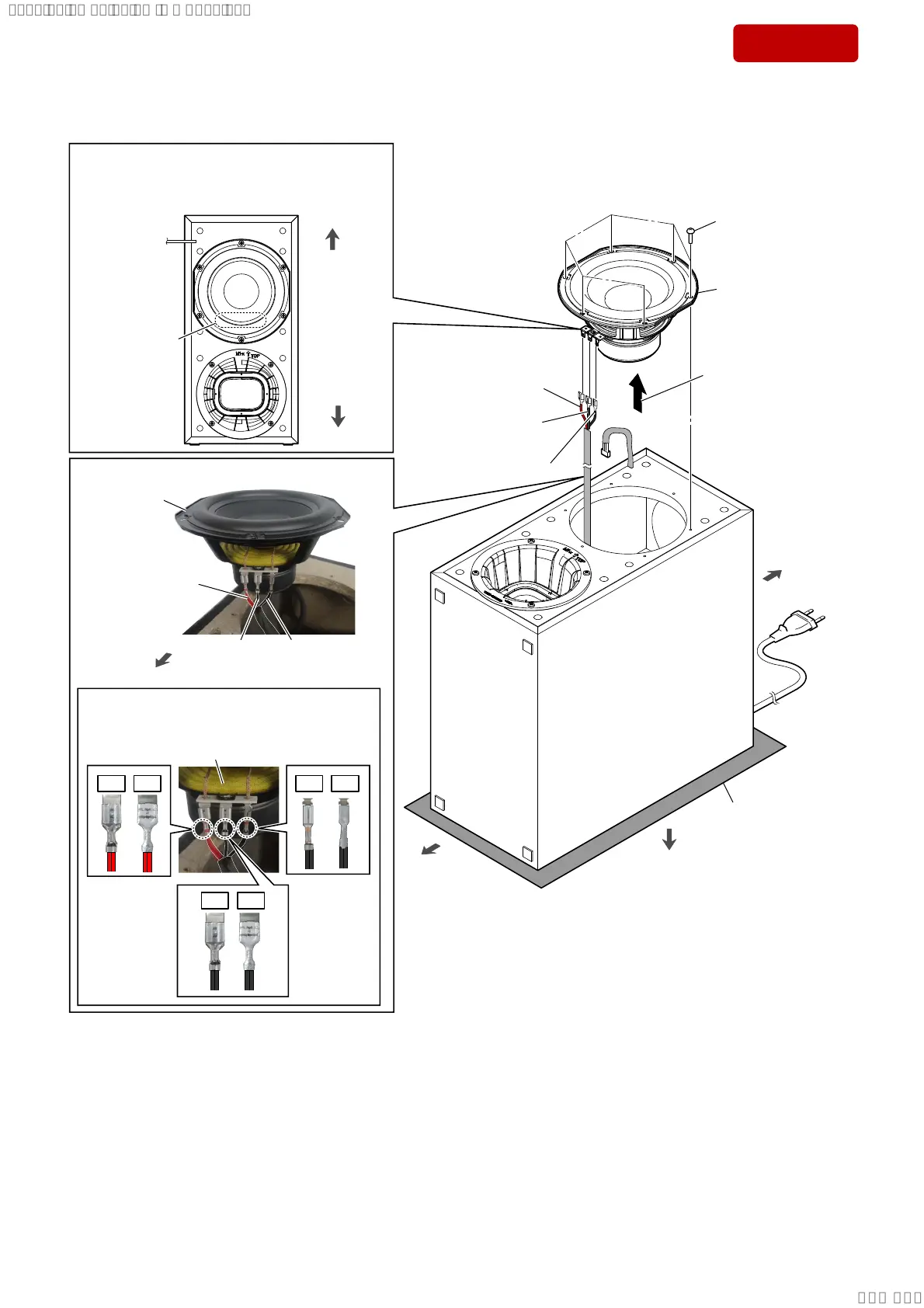

2-11. SPEAKER UNIT (CA1_SW)
rear side
bottom side
soft cloth, etc.
top side
3 terminal (wide)
[red]
3 terminal (wide)
[black]
,QVWDOODWLRQGLUHFWLRQIRUWKHVSHDNHUXQLW&$B6:
6SHDNHUFRQQHFWLRQFDEOHVHWWLQJ
Note 1:
When installing the speaker unit (CA1_SW),
make the position of terminals as shown in
the figure below.
Note 2:
When connecting the speaker connection cable
terminal to the speaker unit (CA1_SW), take care
for the direction of the terminal and connect it.
1 six screws
(BVTP4 u 25)
4 speaker unit
(CA1_SW)
2 Lift up the speaker
unit (CA1_SW) in the
direction of the arrow.
3 terminal (narrow)
[black]
speaker unit
(CA1_SW)
speaker unit (CA1_SW)
terminals position
terminal
(wide)
[red]
terminal
(wide)
[black]
terminal
(narrow)
[black]
top side
bottom side
bottom side
OK
NG
OK
NG
OK
NG
