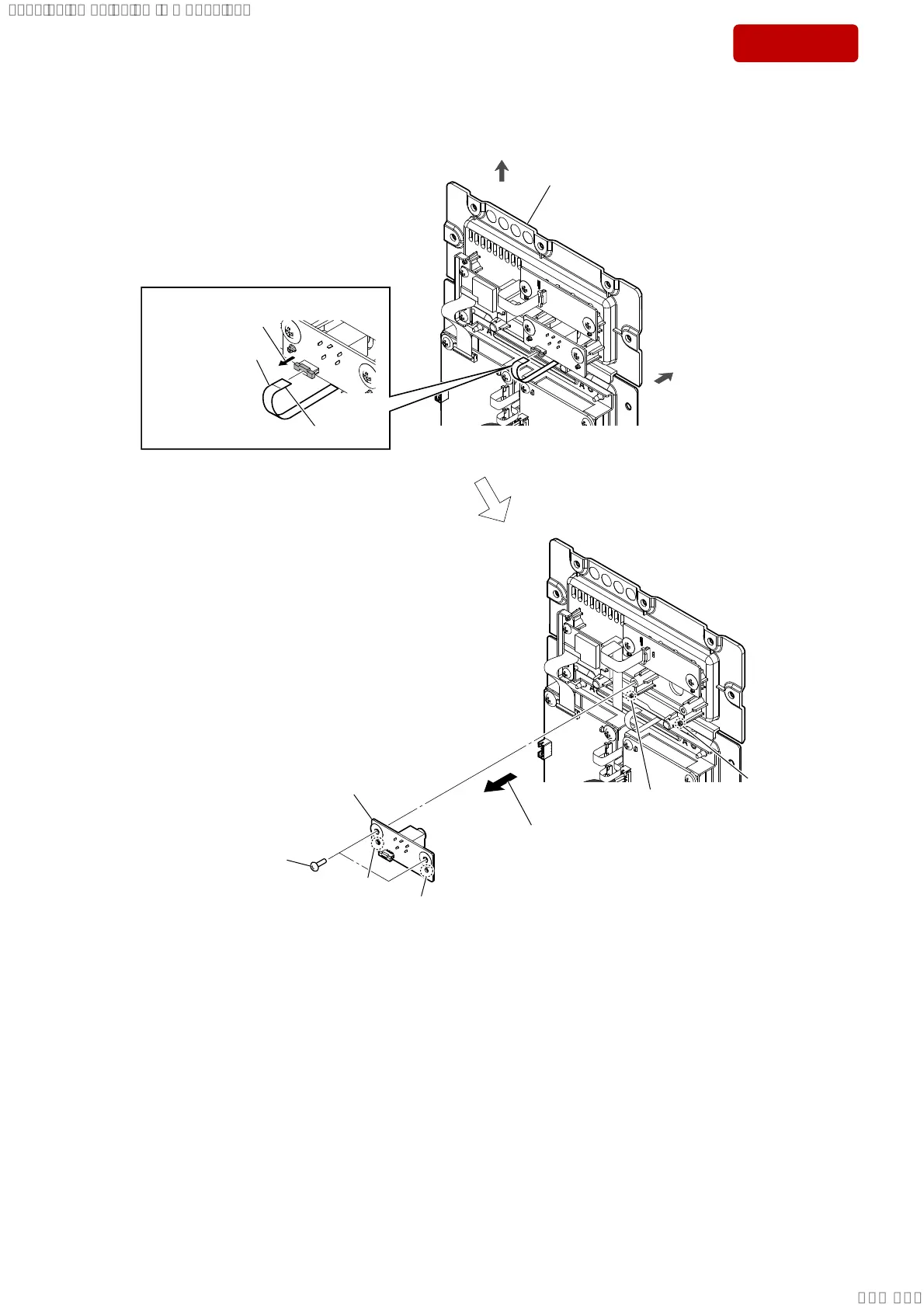

2-7. MINI JACK BOARD
3 two screws
(BVTP3 u 8)
4 Remove the MINI JACK board
in the direction of the arrow.
5 MINI JACK board
Note:
When installing the MINI JACK board,
align the two bosses and two holes.
rear side
top side
AMP block
hole
hole
boss
boss
1 Unlock the connector
(CN1).
2 FFC cable (6 core)
(L = 182.5 mm)
(CN1)
terminal side
