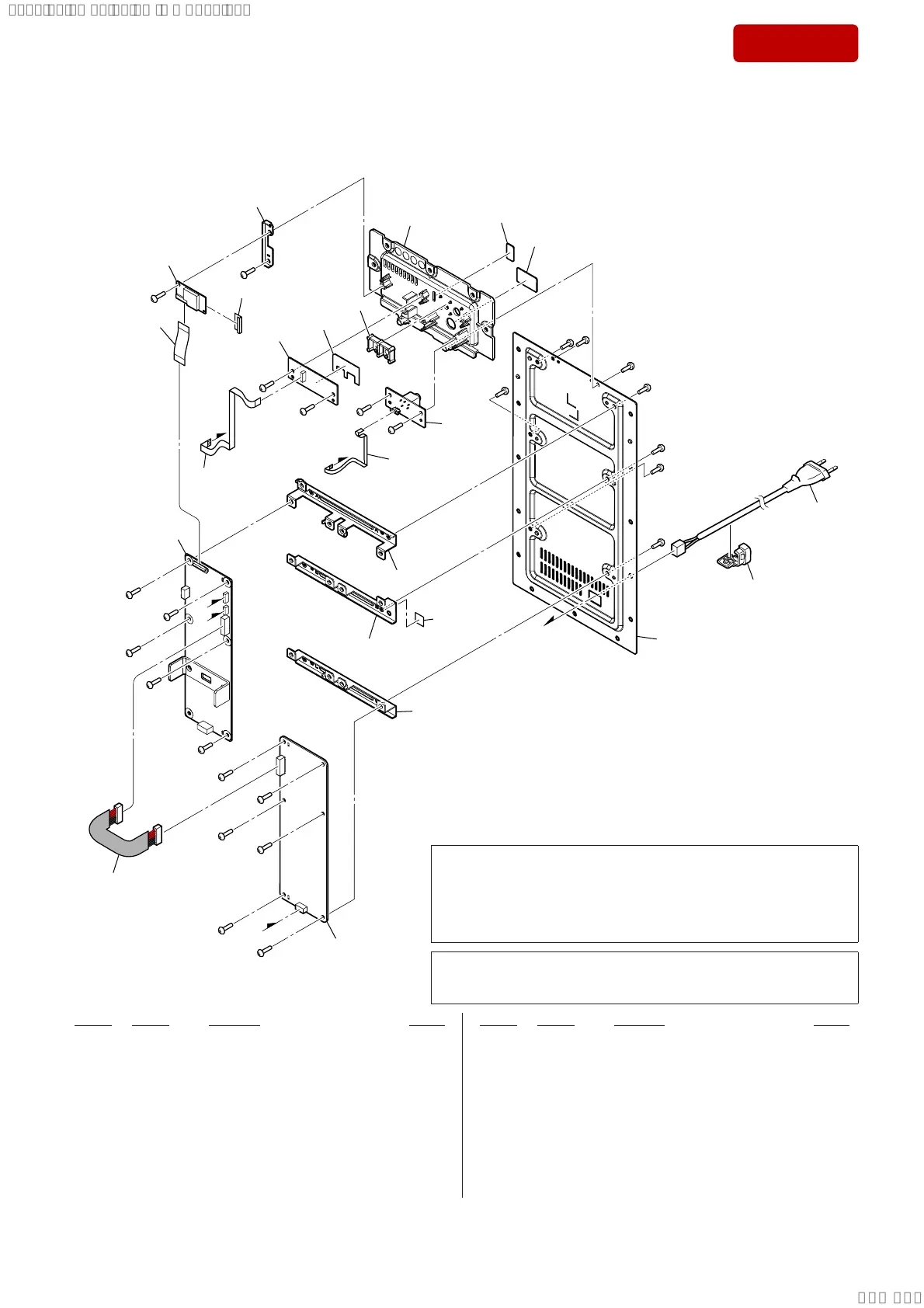

Sony SA-SD35 - Amplifier Section Exploded View

32
SA-WS350/WSD35
Sony CONFIDENTIAL
For Authorized Servicer
AC1
E
C
C
D
D
55
54
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
52
(See Note 1)
51
53
not supplied
BT1
(See Note 1)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
FFC2
(See Note 2)
FFC1
(See Note 2)
FFC3
(See Note 2)
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
E
4-2. AMP SECTION
0 51 930100070 POWER BOARD, COMPLETE
(WS350: US, CND/WSD35: US)
0 51 930100071 POWER BOARD, COMPLETE
(WS350: AEP, UK/WSD35: AEP, UK)
52 930100074 MAIN BOARD, COMPLETE (Including Heat sink)
(See Note 1)
53 930100069 KEY BOARD, COMPLETE
54 930100066 MINI JACK BOARD, COMPLETE
0 55 311306201 CORD BUSH (2104)
0 AC1 930100041 AC CORD -US (WS350: US, CND/WSD35: US)
0 AC1 930100042 AC CORD -EURO (WS350: AEP/WSD35: AEP)
0 AC1 930100043 AC CORD -13A (WS350: UK/WSD35: UK)
BT1 930100067 BT MODULE (SW) (See Note 1)
FFC1 930100075 FFC KIT (CA1_SW) (26 core, L = 60.0 mm)
(See Note 2)
FFC2 930100075 FFC KIT (CA1_SW) (12 core, L = 204.5 mm)
(See Note 2)
FFC3 930100075 FFC KIT (CA1_SW) (6 core, L = 182.5 mm)
(See Note 2)
#1 768564679 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 1: If complete MAIN board (Ref. No. 52) or BT module (SW) (Ref. No.
BT1) is replaced with a new part, refer to “RESET METHOD” on page 5,
be sure to perform the reset.
Also, after completing the reset, refer to “WIRELESS CONNECTION
(LINK) WORK OF THE BAR SPEAKER AND THE SUBWOOFER”
on page 6, perform the wireless connection of bar speaker and subwoofer.
Note 2: As for FFC KIT (CA1_SW), all fl exible fl at cables (Ref. No. FFC1,
FFC2, FFC3) will be 1 set. If FFC KIT (CA1_SW) is replaced, install it
after bending it in the same form as that before replacement.
SYSSET
2019/02/1301:37:00(GMT+09:00)
