Sony SA-SD35 - POWER Board

HT-S350/SD35
23
Sony CONFIDENTIAL
For Authorized Servicer

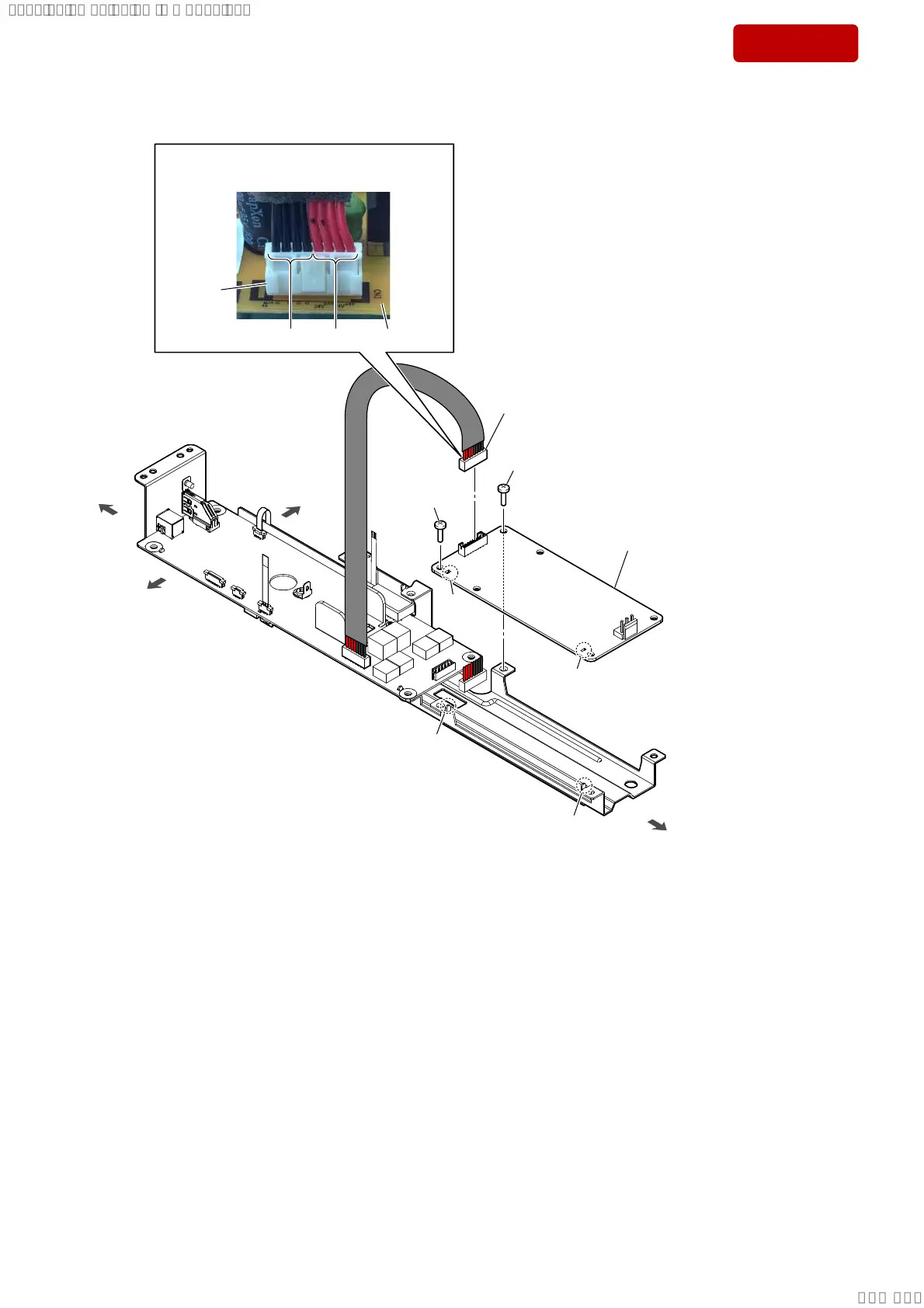

2-16. POWER BOARD
2 screw
(BTP3 u 10)
1 connector
(CN2)
front side
rear side
left side
right side
2 screw
(BTP3 u 10)
hole
rib
hole
rib
3 POWER board
Note:
When installing the POWER board,
align the two ribs and two holes.
,QVWDOODWLRQGLUHFWLRQIRUWKHFRQQHFWRU&1
–/HIWYLHZ–
POWER board
connector
(CN2)
[red][black]
SYSSET
