Sony SA-SD35 - Printed Wiring Board - POWER Board

HT-S350/SD35
40
Sony CONFIDENTIAL
For Authorized Servicer
4-18. PRINTED WIRING BOARD - POWER Board -
• : Uses unleaded solder.
• See page 26 for Circuit Boards Location.
A
B
C
D
E
F
1 2 3 4 5

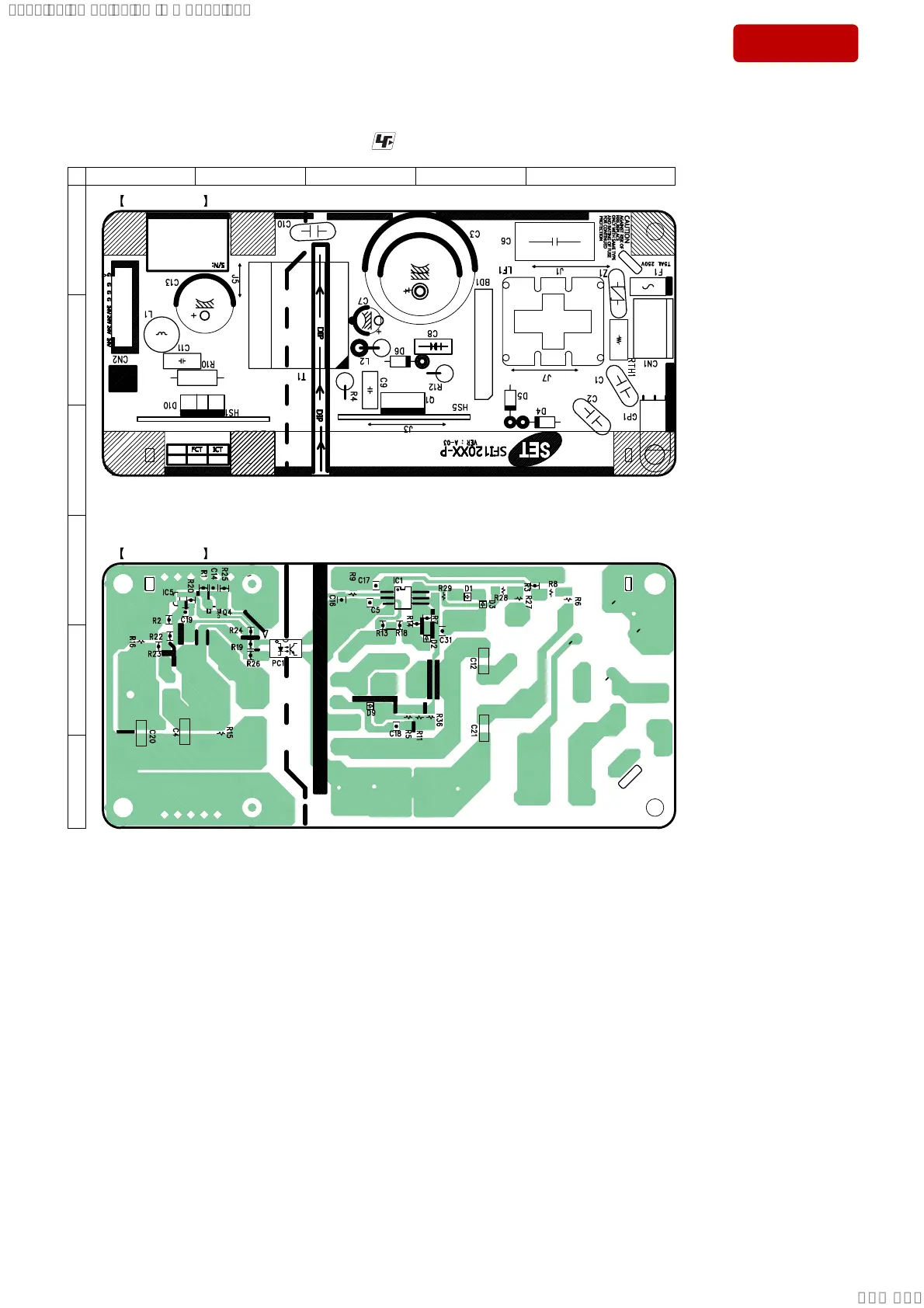

POWER BOARD (COMPONENT SIDE)
POWER BOARD (CONDUCTOR SIDE)
