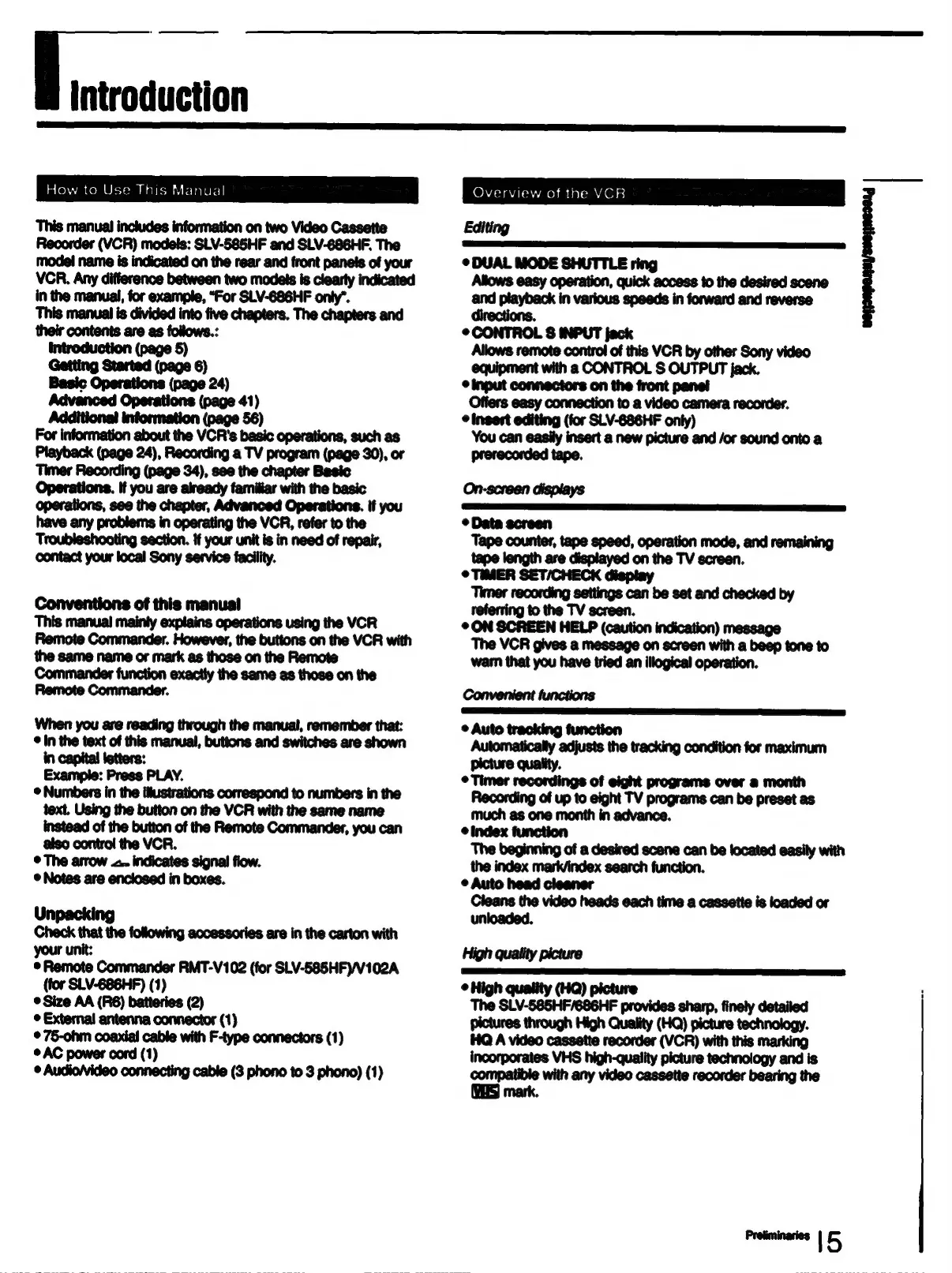

Introduction
moh acon Ol-temm Malta ftalert]|
This manual includes information on two Video Cassette
Recorder (VCR) models: SLV-585HF and SLV-686HF. The
model name is indicated on the rear and front panes of your
VCR. Any difference between two models is clearly indicated
in the manual, for example, “For SLV-686HF only’.
This manual is divided into five chapters. The chapters and
their contents are as follows.:
For information about the VCR's basic operations, such as
Playback (page 24), Recording a TV program (page 30), or
Timer Recording (page 34), see the chapter Basic
Operations. if you are already familiar with the basic
operations, see the chapter, Advanced Operations. if you
have any problems in operating the VCR, refer to the
Troubleshooting section. if your unit is in need of repair,
Contact your local Sony service facility.
Conventions of this manual
This manual mainly explains operations using the VCR
Remote Commander. However, the buttons on the VCR with
the same name or mark as those on the Remote
Commander function exactly the same as those on the
Remote Commander.
When you are reading through the manual, remember that:
© In the text of this manual, buttons and switches are shown
in capital letters:
Example: Press PLAY.
© Numbers in the illustrations correspond to numbers in the
text. Using the button on the VCR with the same name
instead of the button of the Remote Commander, you can
also control the VCR.
© The arrow <.. indicates signal flow.
© Notes are enclosed in boxes.
Unpacking
Check that the following accessories are in the carton with
your unit:
© Remote Commander RMT-V102 (for SLV-585HF)/V102A
(for SLV-686HF) (1)
© Size AA (R6) batteries (2)
© External antenna connector (1)
© 75-ohm coaxial cable with F-type connectors (1)
© AC power cord (1)
® Audio/video connecting cable (3 phono to 3 phono) (1)
Overview of the VCR
Editing
Ce se eee ee a TTD
¢DUAL MODE SHUTTLE ring
Allows easy operation, quick access to the desired scene
and playback in various speeds in forward and reverse
directions
®@ CONTROL 8 INPUT jack
Allows remote control of this VCR by other Sony video
equipment with a CONTROL S OUTPUT jack.
© input connectors on the front pane!
Offers easy connection to a video camera recorder.
© insert editing (for SLV-686HF onty)
You can easily insert a new picture and /or sound onto a
prerecorded tape.
On-screen displays
aa Fe et
© Data screen
Tape counter, tape speed, operation mode, and remaining
tape length are displayed on the TV screen.
© TIMER SET/CHECK display
Timer recording settings can be set and checked by
to the TV screen.
ON SCREEN HELP (caution indication) message
The VCR gives a message on screen with a beep tone to
warn that you have tried an illogical operation.
Convenient functions
a a a a I EET EI
© Auto tracking function
ma
picture quality.
© Timer recordings of eight programs over a month
Recording of up to eight TV programs can be preset as
much as one month in advance.
@ index function
The beginning of a desired scene can be located easily with
the index mark/index search function.
@ Auto head cleaner
Cleans the video heads each time a cassette is loaded or
unloaded.
High quality picture
Sa a Se
¢ High quality (HQ) picture
The SLV-585HF/686HF provides sharp, finely detailed
pictures through High Quality (HQ) picture technology.
HQ A video cassette recorder (VCR) with this marking
incorporates VHS high-quality picture technology and is
ma eee
