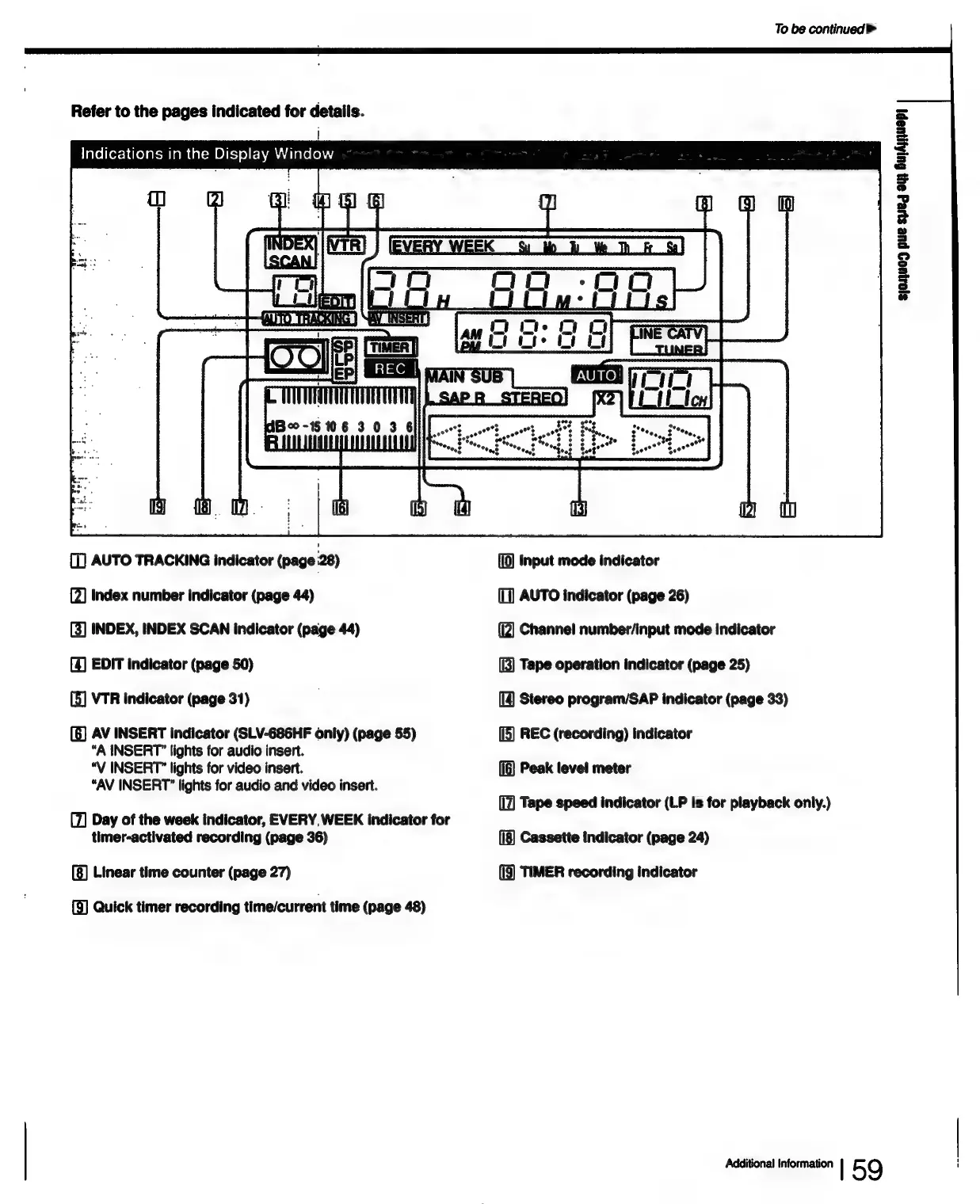

Sony SLV-686HF - Display Window Indications

To be continued ®
Refer to the pages indicated for details.
|
Take fori dfolatsmiem CalcmO)EJ elisha dalateceyui
O @ @ © &
NDEX | (WTR) ER
re EDT
ALTO TRACKING | al INSERT)
REC |
Ok TiMen]
IB~-15106 3036
(1) AUTO TRACKING indicator (page 28)
[2] Index number indicator (page 44)
(3) INDEX, INDEX SCAN indicator (page 44)
[4] EDIT indicator (page 50)
[5] VTR indicator (page 31)
(6) AV INSERT indicator (SLV-686HF only) (page 55)
“A INSERT” lights for audio insert.
“V INSERT” lights for video insert.
“AV INSERT” lights for audio and video insert.
[7] Day of the week indicator, EVERY, WEEK indicator for
tlmer-activated recording (page 36)
[8] Linear time counter (page 27)
(5) Quick timer recording time/current time (page 48)
Input mode indicator
[I] AUTO indicator (page 26)
Channel number/input mode Indicator
Tape operation indicator (page 25)
[4 Stereo program/SAP indicator (page 33)
REC (recording) indicator
Peak level meter
{7 Tape speed indicator (LP is for playback only.)
Cassette indicator (page 24)
TIMER recording indicator
Additional Information | 59
