indentifying
Parts
and
Controls
Refer
to
the
pages
indicated
for
details.

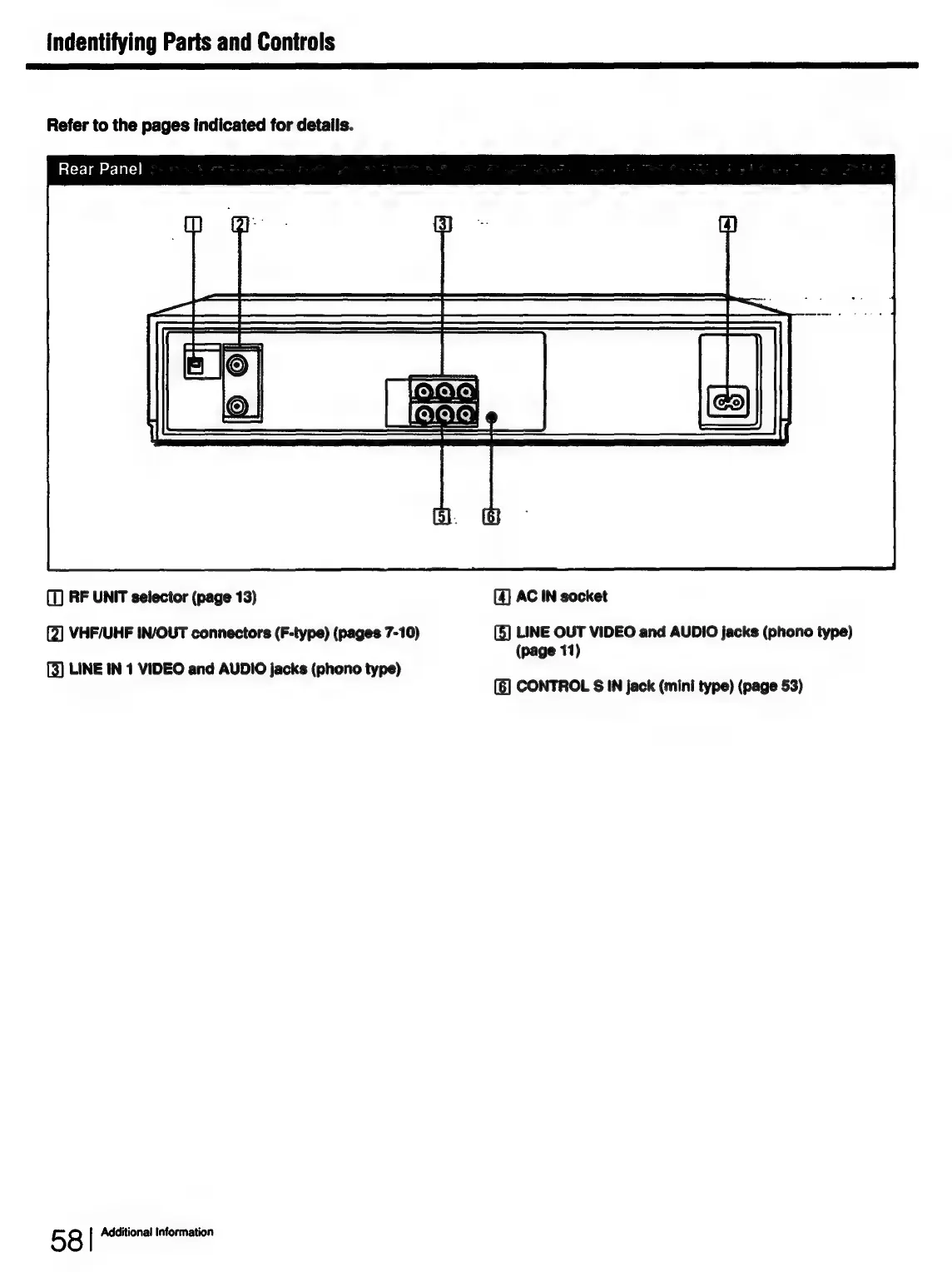

Rear
Pane!
(1)
RF
UNIT
selector
(page
13)
(@)
AC
IN
socket
(2]
VHF/UHF
IN/OUT
connectors
(F-type)
(pages
7-10)
(5)
LINE
OUT
VIDEO
and
AUDIO
jacks
(phono
type)
(page
11)
[3)
LINE
IN
1
VIDEO
and
AUDIO
jacks
(phono
type)
(6)
CONTROL
S
IN
jack
(mini
type)
(page
53)
58
|
Additional
Information
