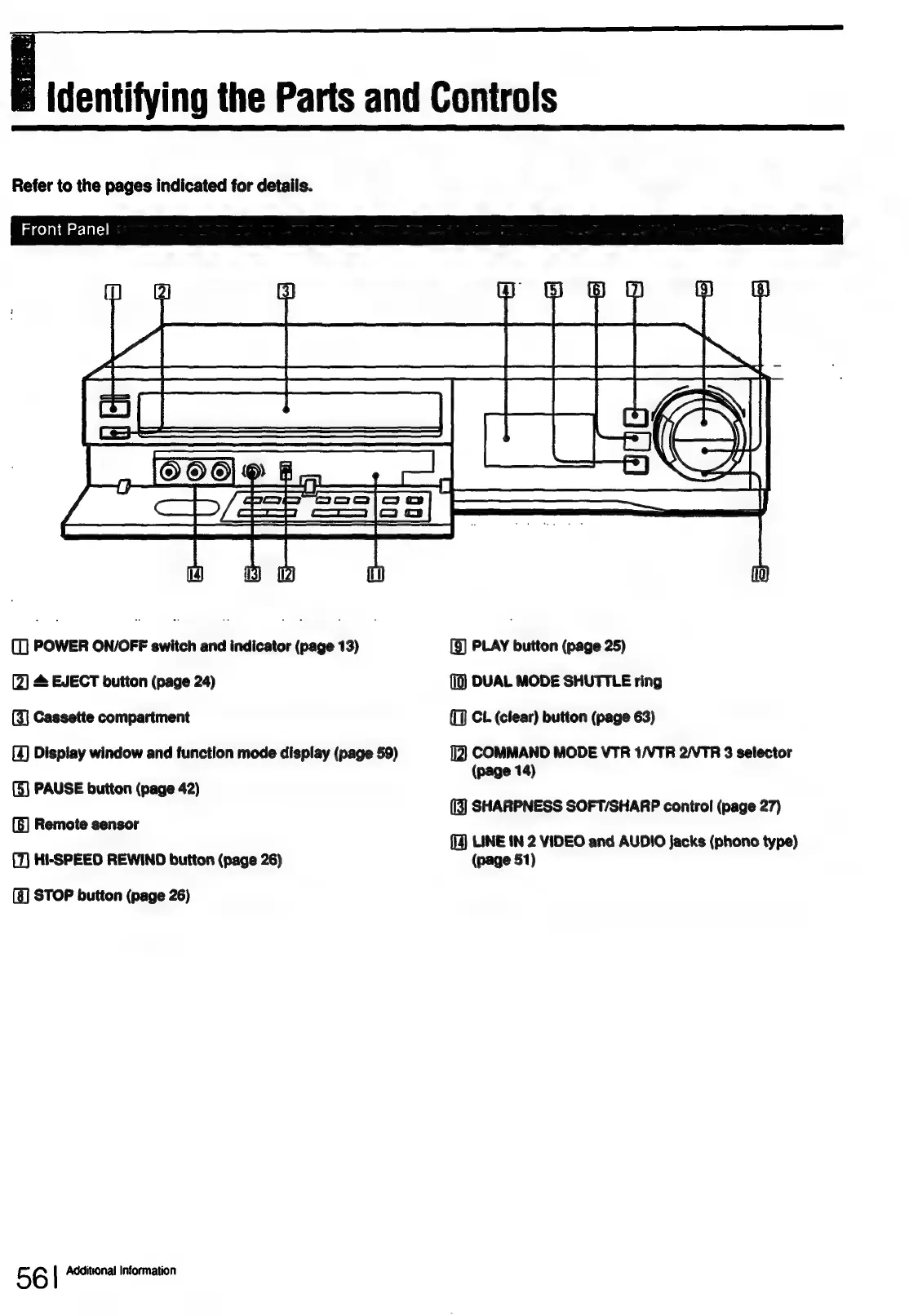

identifying the Parts and Controls
Refer to the pages indicated for details.
Front Panel
(] POWER ON/OFF switch and indicator (page 13)
(2) & EJECT button (page 24)
(3} Cassette compartment
[Z) Display window and function mode display (page 59)
(5] PAUSE button (page 42)
(6] Remote sensor
HI-SPEED REWIND button (page 26)
(8) STOP button (page 26)
56 | Additional Information
PLAY button (page 25)
DUAL MODE SHUTTLE ring
CL (clear) button (page 63)
COMMAND MODE VTR 1/VTR 2/VTR 3 selector
(page 14)
SHARPNESS SOFT/SHARP control (page 27)
LINE IN 2 VIDEO and AUDIO jacks (phono type)
(page 51)
