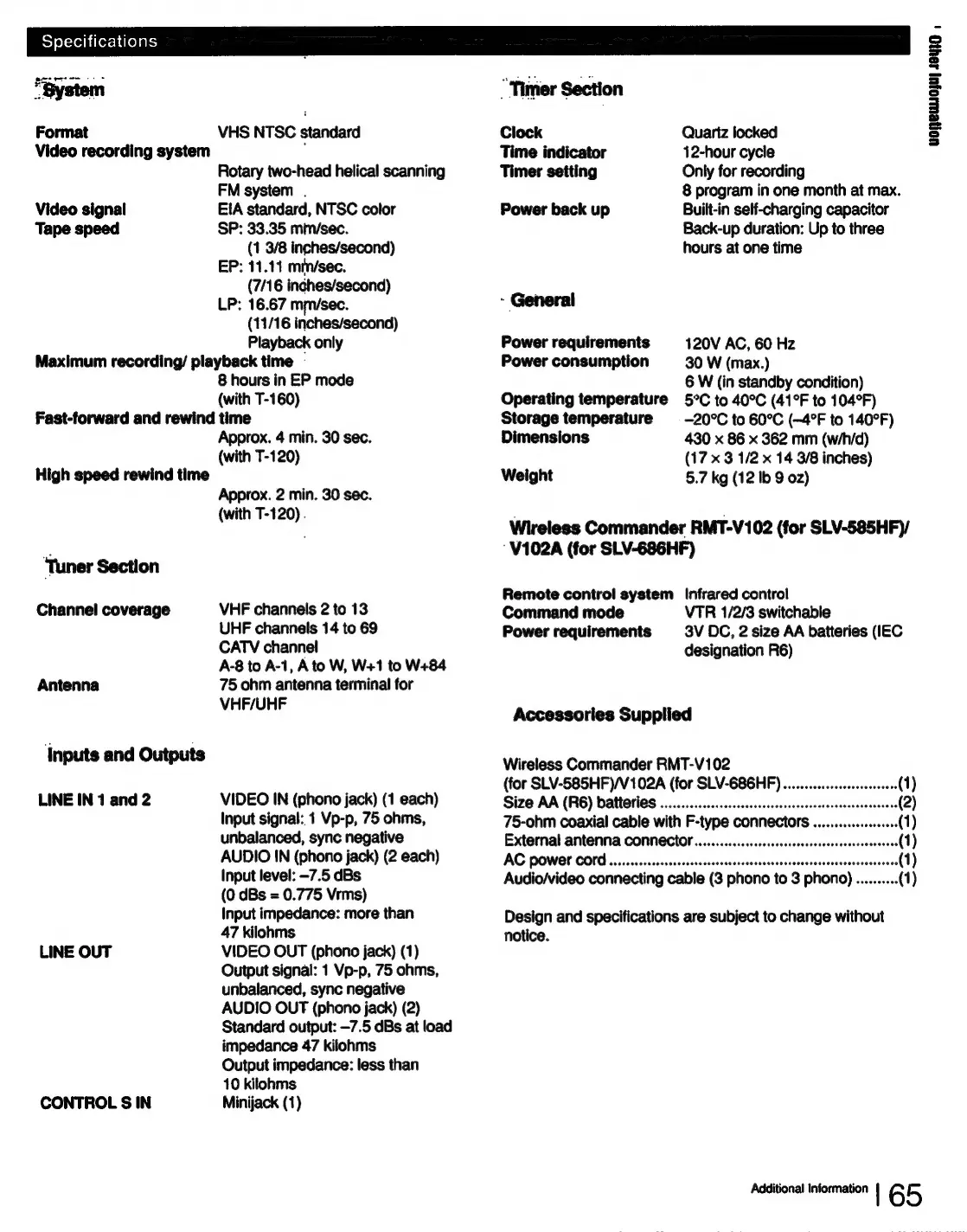

Specifications
_ System
Format VHS NTSC standard
Video recording system
Rotary two-head helical scanning
FM system .
Video signal EIA standard, NTSC color
Tape speed SP: 33.35 mim/sec.
(1 3/8 inches/second)
EP: 11.11 min/sec.
(7/16 inches/second)
LP: 16.67 mm/sec.
(11/16 inches/second)
Playback only
Maximum recording/ playback time -
8 hours in EP mode
(with T-160)
Fast-forward and rewind time
Approx. 4 min. 30 sec.
(with T-120)
High speed rewind time
Approx. 2 min. 30 sec.
(with T-120) .
‘Tuner Section
VHF channels 2 to 13
UHF channels 14 to 69
CATV channel
A-8 to A-1, A to W, W+1 to W+84
75 ohm antenna terminal for
VHF/UHF
Channel coverage
Antenna
Inputs and Outputs
LINE IN 1 and 2 VIDEO IN (phono jack) (1 each)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN (phono jack) (2 each)
Input level: -7.5 dBs
(0 dBs = 0.775 Vrms)
Input impedance: more than
47 kilohms
VIDEO OUT (phono jack) (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT (phono jack) (2)
Standard output: -7.5 dBs at load
impedance 47 kilohms
Output impedance: less than
10 kilohms
Minijack (1)
LINE OUT
CONTROL S IN
_ Timer Section
Clock Quariz locked
Time indicator 12-hour cycle
Timer setting Only for recording
8 program in one month at max.
Power back up Built-in self-charging capacitor
Back-up duration: Up to three
hours at one time
- General
Power requirements 120V AC, 60 Hz
Power consumption 30 W (max.)
6 W (in standby condition)
Operating temperature 5°C to 40°C (41°F to 104°F)
Storage temperature § -20°C to 60°C (—4°F to 140°F)
Dimensions 430 x 86 x 362 mm (w/h/d)
(17 x3 1/2 x 14 3/8 inches)
Weight 5.7 kg (12 Ib 9 oz)
Wireless Commander RMT-V102 (for SLV-585HF)/
-V102A (for SLV-686HF)
Remote control system Infrared control
Command mode VTR 1/2/3 switchable
Power requirements 8V DC, 2 size AA batteries (IEC
designation R6)
Accessories Supplied
Wireless Commander RMT-V102
(for SLV-S8SHF)/V102A (for SLV-686HP).............ccscsssssers (1)
Size AA (R6) batteries ............ ce sccsceresseecsersscesesesseee ne (2)
75-ohm coaxial cable with F-type CONNECTOFS ................00+ (1)
External antenna COMME CHOP .............cerssorsescrscessessccesesenes (1)
AC POWEF COI .........scccsscesescesercssercerecessensercrensseenrensseessenes (1)
Audio/video connecting cable (3 phono to 3 phono) .......... (1)
Design and specifications are subject to change without
notice.
