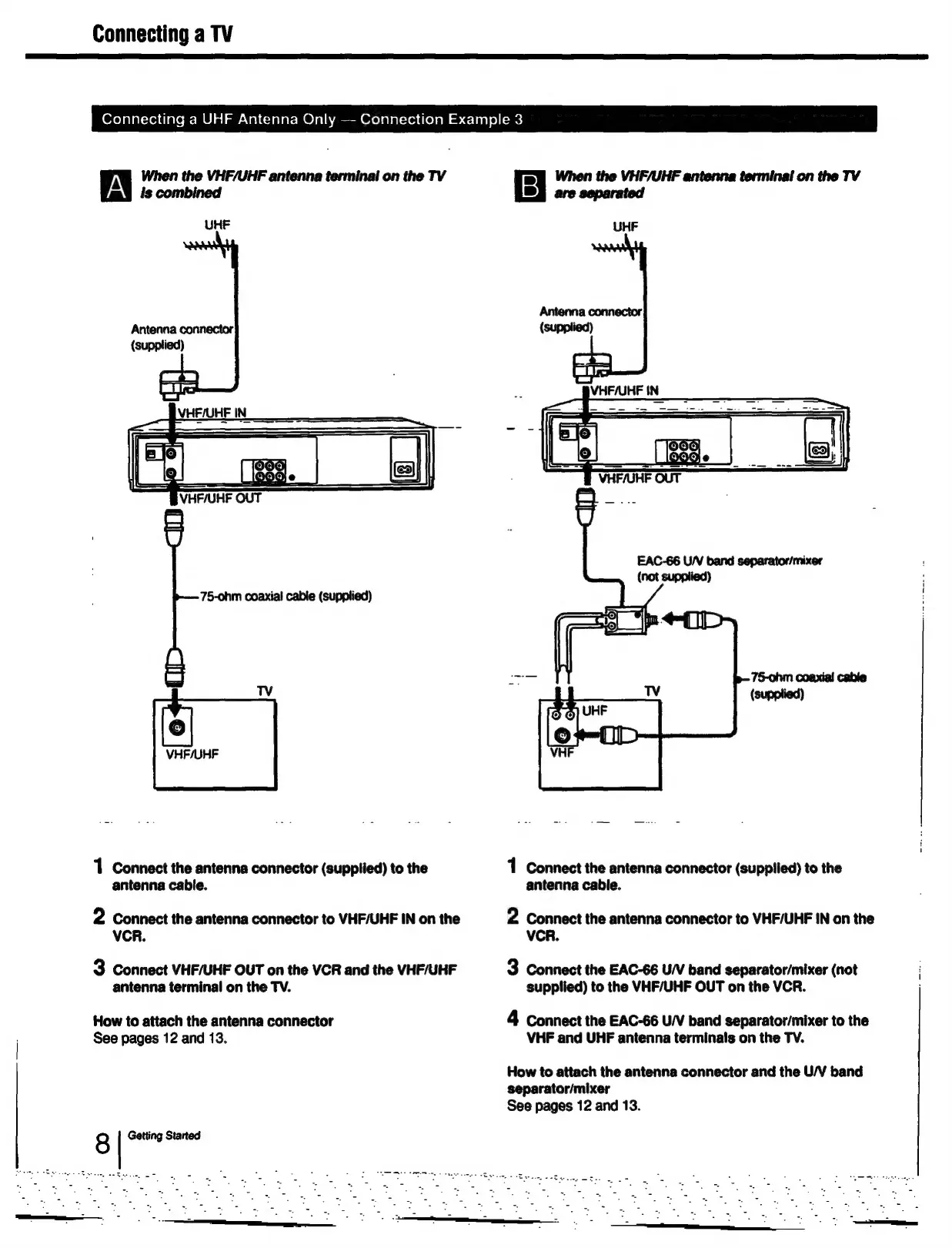

Connecting a TV
1Ofolalal-toi lave m-Melal am .lal(cialar- i Ola1h meeem Oxo) alal-ve1d(olal =>.¢-1n0) 0) (=a)
A When the VHF/UHF antenna terminal on the TV
is combined
UHF
Antenna connector
(supplied)
75-ohm coaxial cable (supplied)
1 Connect the antenna connector (supplied) to the
antenna cable.
2 Connect the antenna connector to VHF/UHF IN on the
VCR.
3 Connect VHF/UHF OUT on the VCR and the VHF/UHF
antenna terminal on the TV.
How to attach the antenna connector
See pages 12 and 13.
8 Getting Started
tee ee
When the VHF/UHF antenna terminal on the TV
are separated
1 Connect the antenna connector (supplied) to the
antenna cable.
2 Connect the antenna connector to VHF/UHF IN on the
VCR.
3 Connect the EAC-66 U/V band separator/mixer (not
supplied) to the VHF/UHF OUT on the VCR. j
4 Connect the EAC-66 U/V band separator/mixer to the
VHF and UHF antenna terminals on the TV.
How to attach the antenna connector and the U/V band
separator/mixer
See pages 12 and 13.
