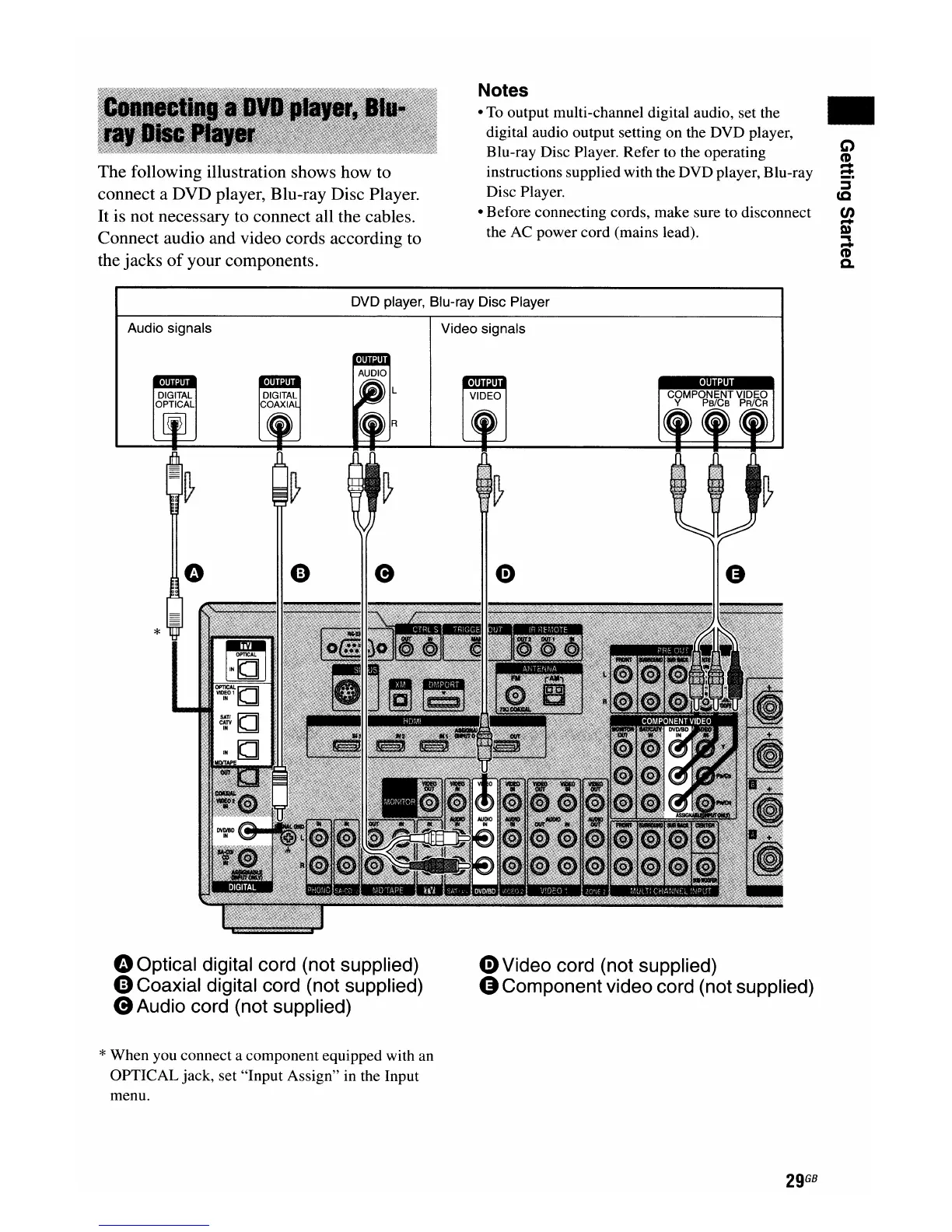

The following illustration shows how to
connect a DVD player, Blu-ray Disc Player.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks
of
your components.
Notes
• To output multi-channel digital audio, set the
digital audio output setting on the DVD player,
Blu-ray Disc Player. Refer to the operating
instructions supplied with the DVD player, Blu-ray
Disc Player.
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
III
C)
CD
~
::::J
(C
en
...
Q)
""I
...
CD
a.
Audio signals
DVD player, Blu-ray Disc Player
Video signals
oOptical digital cord (not supplied)
e Coaxial digital cord (not supplied)
eAudio cord (not supplied)
*When you connect a component equipped with an
OPTICAL jack, set "Input Assign" in the Input
menu.
oVideo cord (not supplied)
GComponent video cord (not supplied)
29
GB
