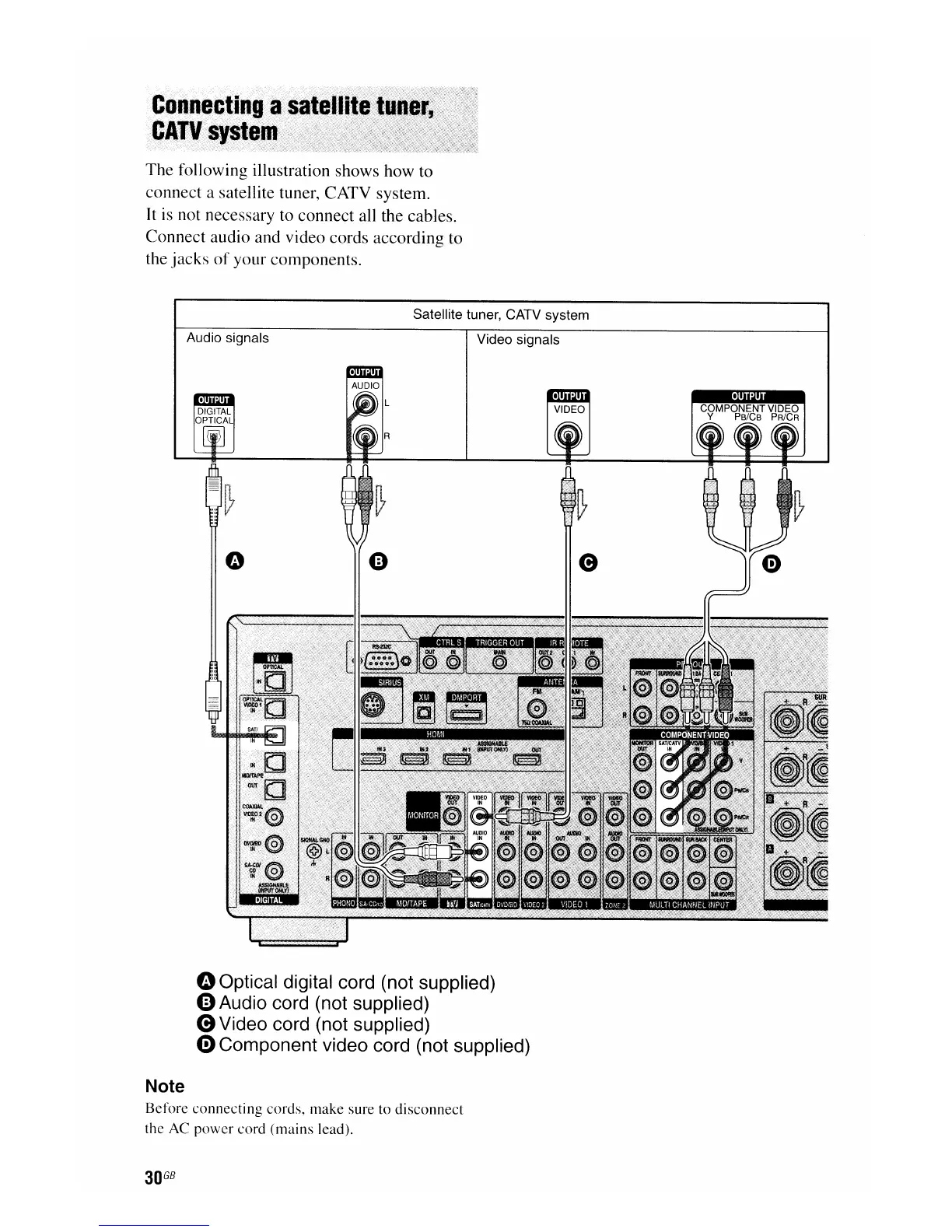

The following illustration shows how to
connect a satellite tuner, CATV system.
It
is
not necessary to connect all the cables.
Connect audio and video cords according to
the
jacks
of
your components.
Satellite tuner, CATV system
Audio signals Video signals
COMPONENT VIDEO
Y Ps/Cs
PRICR
..
o
Optical
digital
cord
(not
supplied)
o
Audio
cord
(not
supplied)
e
Video
cord
(not
supplied)
e Component
video
cord
(not
supplied)
Note
Before
connecting
cords~
make
sure to
disconnect
the AC
power
cord
(mains
lead).
30
GB
