Sony STR-DA5000ES - Front Panel Section-1

110
STR-DA5000ES

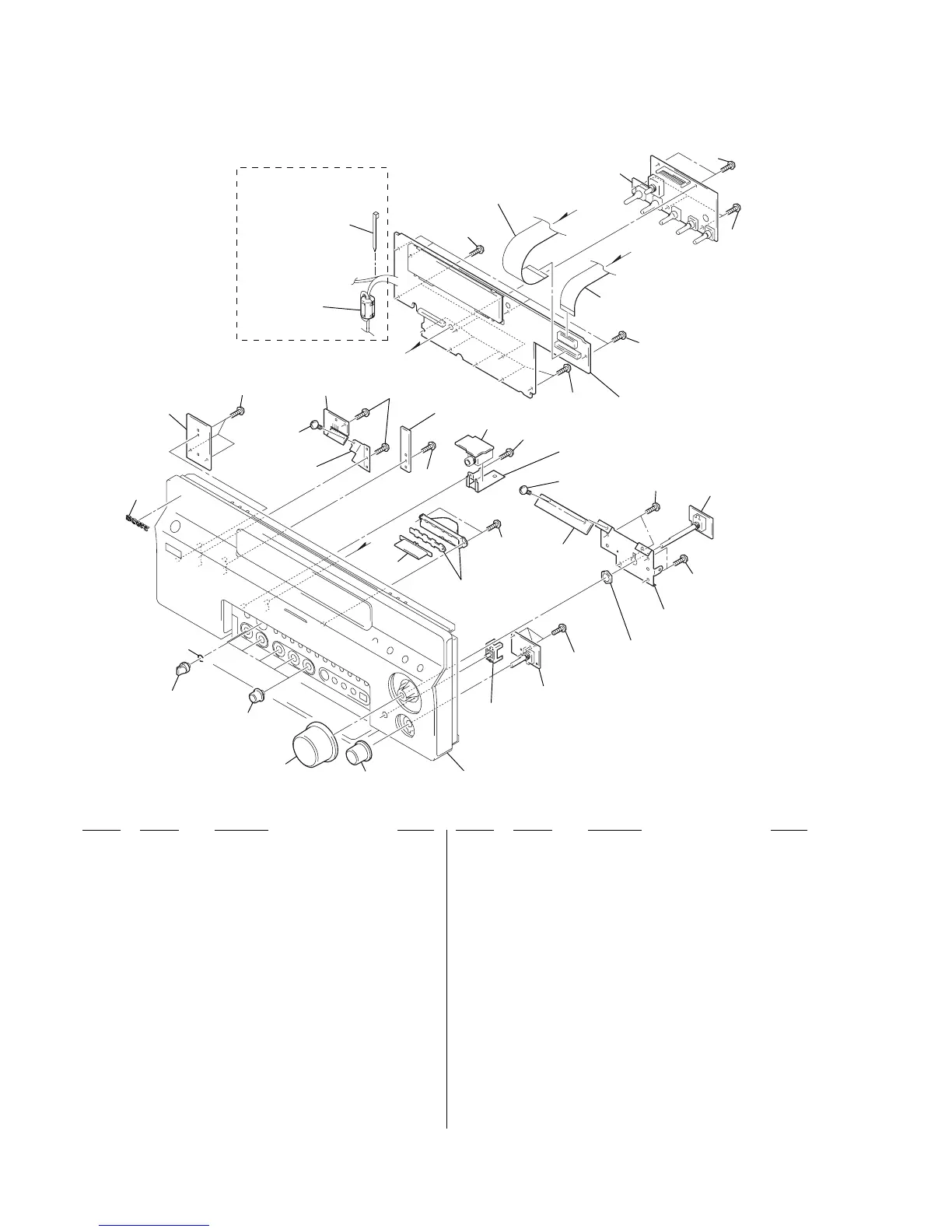

7-2. FRONT PANEL SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4955-651-1 KNOB (SEL) ASSY (SILVER)
51 X-4955-655-1 KNOB (SEL) ASSY (GOLD)
51 X-4955-656-1 KNOB (SEL) ASSY (BLACK)
52 X-4955-650-1 KNOB (VOL) ASSY (SILVER)
52 X-4955-654-1 KNOB (VOL) ASSY (GOLD)
52 X-4955-657-1 KNOB (VOL) ASSY (BLACK)
53 4-246-104-01 KNOB (MENU) (SILVER)
53 4-246-104-11 KNOB (MENU) (GOLD)
53 4-246-104-21 KNOB (MENU) (BLACK)
54 4-246-103-02 KNOB (SPEAKER) (SILVER)
54 4-246-103-12 KNOB (SPEAKER) (GOLD)
54 4-246-103-22 KNOB (SPEAKER) (BLACK)
55 3-354-981-01 SPRING (SUS), RING
56 4-942-568-41 EMBLEM (NO.5), SONY (for BLACK)
57 A-4733-995-A POWER SW BOARD, COMPLETE
58 4-951-620-01 SCREW (2.6X8), +BVTP
59 1-860-316-11 POWER SW SUB BOARD
60 1-500-249-21 BEAD, FERRITE (CASE) (EXCEPT US, CND)
61 3-655-653-21 BAND (TAITON), BINDING (EXCEPT US, CND)
62 1-688-731-11 LED BOARD
63 1-688-723-11 HP BOARD
64 4-246-109-01 INDICATOR (C)
65 1-688-729-11 KEY BOARD
66 1-688-727-11 VOL BOARD
67 1-688-726-11 FUNCTION BOARD
68 4-246-118-01 BUTTON (INPUT) (SILVER)
68 4-246-118-11 BUTTON (INPUT) (GOLD)
68 4-246-118-21 BUTTON (INPUT) (BLACK)
69 A-4733-990-A FL BOARD, COMPLETE (EXCEPT AEP: BLACK)
69 A-4734-079-A FL BOARD, COMPLETE (AEP: BLACK)
70 1-827-364-11 WIRE (FLAT TYPE) (23 CORE)
71 1-688-724-11 JOG BOARD
72 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
51
52
53
54
55
56
57
58
58
58
58
58
58
58
58
58
58
58
58
58
58
58
59
60
61
62
63
64
65
66
67
A
A
B
C
68
69
70
71
72
(Refer to page 113)
(Refer to page 113)
not supplied
not supplied
not supplied
not supplied
supplied with
RV1007
front panel section-2
(EXCEPT US, CND)
