STR-DA5000ES

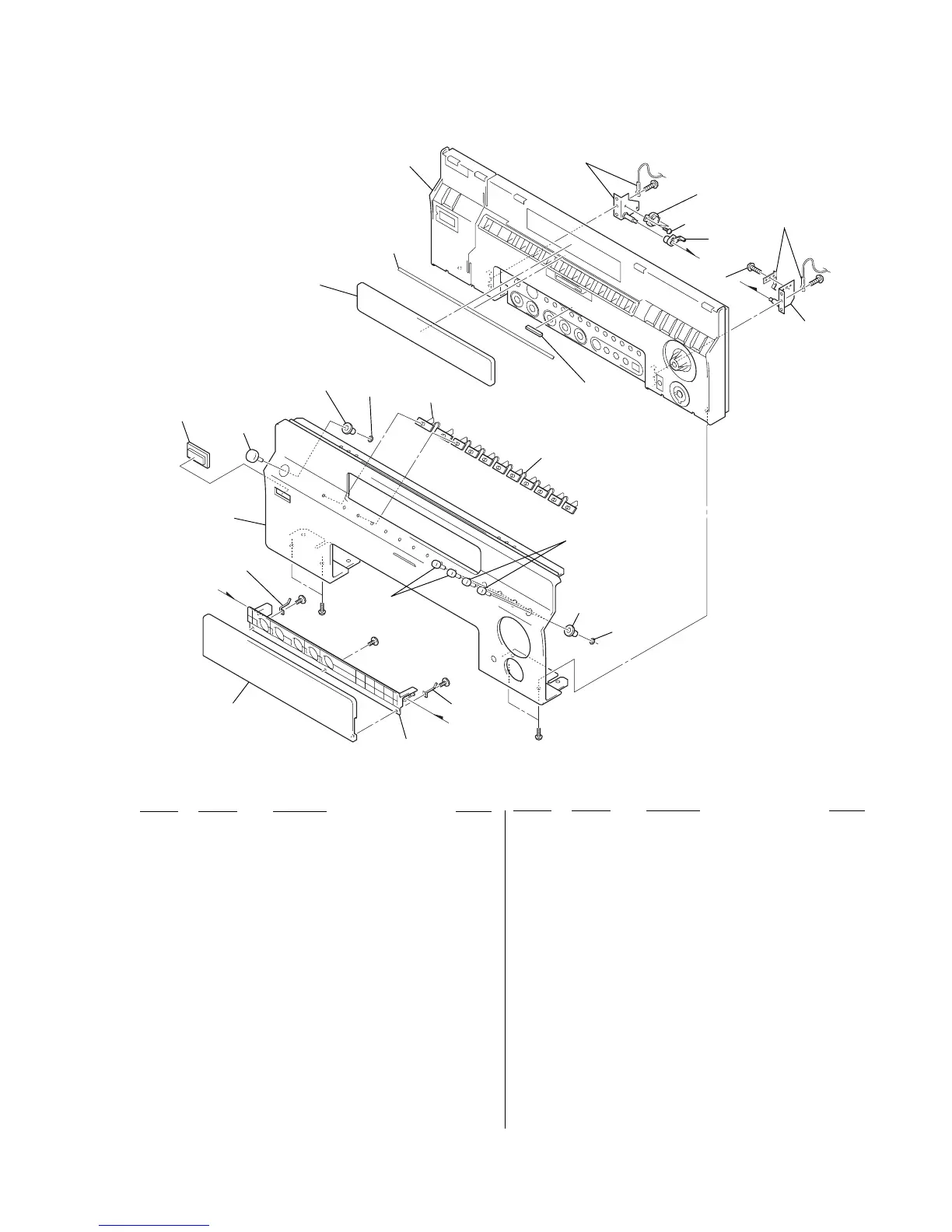

7-3. FRONT PANEL SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-246-526-02 LID (SILVER)
101 4-246-526-11 LID (GOLD)
101 4-246-526-21 LID (BLACK)
102 X-4955-632-1 ESCUTCHEON (LID) ASSY (SILVER)
102 X-4955-633-1 ESCUTCHEON (LID) ASSY (GOLD)
102 X-4955-634-1 ESCUTCHEON (LID) ASSY (BLACK)
103 3-325-697-01 WASHER
104 X-4955-653-1 ESCUTCHEON (DIA. 7) ASSY
105 4-246-100-03 BUTTON (DIA. 7) (SILVER)
105 4-246-100-13 BUTTON (DIA. 7) (GOLD)
105 4-246-100-23 BUTTON (DIA. 7) (BLACK)
106 4-246-102-02 WINDOW (REMOTECONTROL)
107 4-246-121-03 BUTTON (POWER) (SILVER)
107 4-246-121-13 BUTTON (POWER) (GOLD)
107 4-246-121-23 BUTTON (POWER) (BLACK)
108 X-4955-652-1 ESCUTCHEON (POWER) ASSY
109 4-246-509-01 PANEL, FRONT (SILVER)
109 4-246-509-11 PANEL, FRONT (GOLD: AEP)
109 4-246-509-21 PANEL, FRONT (BLACK)
109 4-246-509-81 PANEL, FRONT (GOLD: TW, CH)
110 4-246-107-01 INDICATOR (A)
111 4-249-861-01 PLATE, LIGHT INTERCEPTION
112 4-246-538-01 PLATE, INDICATION (for GOLD, SILVER)
112 4-246-538-11 PLATE, INDICATION (for BLACK)
113 4-240-391-01 DAMPER, OIL
114 4-246-743-01 GEAR (DAMPER)
115 4-951-620-01 SCREW (2.6X8), +BVTP
116 X-4955-639-2 BASE ASSY, PANEL (SILVER)
116 X-4955-640-2 BASE ASSY, PANEL (GOLD)
116 X-4955-641-2 BASE ASSY, PANEL (BLACK)
117 4-246-108-01 INDICATOR (B)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-536-19 SCREW +BTP 2.6X12 TYPE2 N-S
#4 7-621-770-87 SCREW +B 2.6X5 (for GOLD, SILVER)
#4 7-621-775-20 SCREW +B 2.6X5 (for BLACK)
#5 7-685-853-04 SCREW +BVTT 2X6 (S)
