Sony STR-DA5000ES - Chassis Section-4

115
STR-DA5000ES
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 4-860-518-00 CUSHION
303 1-500-753-11 CLAMP, FERRITE (EXCEPT US, CND)
304 1-469-969-11 CLAMP, FERRITE (US, CND)
305 1-400-061-11 CORE, FERRITE (CLAMP FILTER) (US, CND)
306 A-4734-003-A VIDEO BOARD, COMPLETE (US, CND)
306 A-4734-070-A VIDEO BOARD, COMPLETE (TW)
306 A-4734-084-A VIDEO BOARD, COMPLETE (AEP, CH)
307 A-4749-877-A ANALOG SUB BOARD, COMPLETE (US, CND)
307 A-4749-881-A ANALOG SUB BOARD, COMPLETE
(EXCEPT US, CND)
308 A-4734-001A AUDIO BOARD, COMPLETE (US, CND)
308 A-4734-086-A AUDIO BOARD, COMPLETE (EXCEPT US, CND)
309 4-974-510-11 SCREW (+BV 3X8 CU)
310 4-947-010-01 SCREW, FEEDER FIXED
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

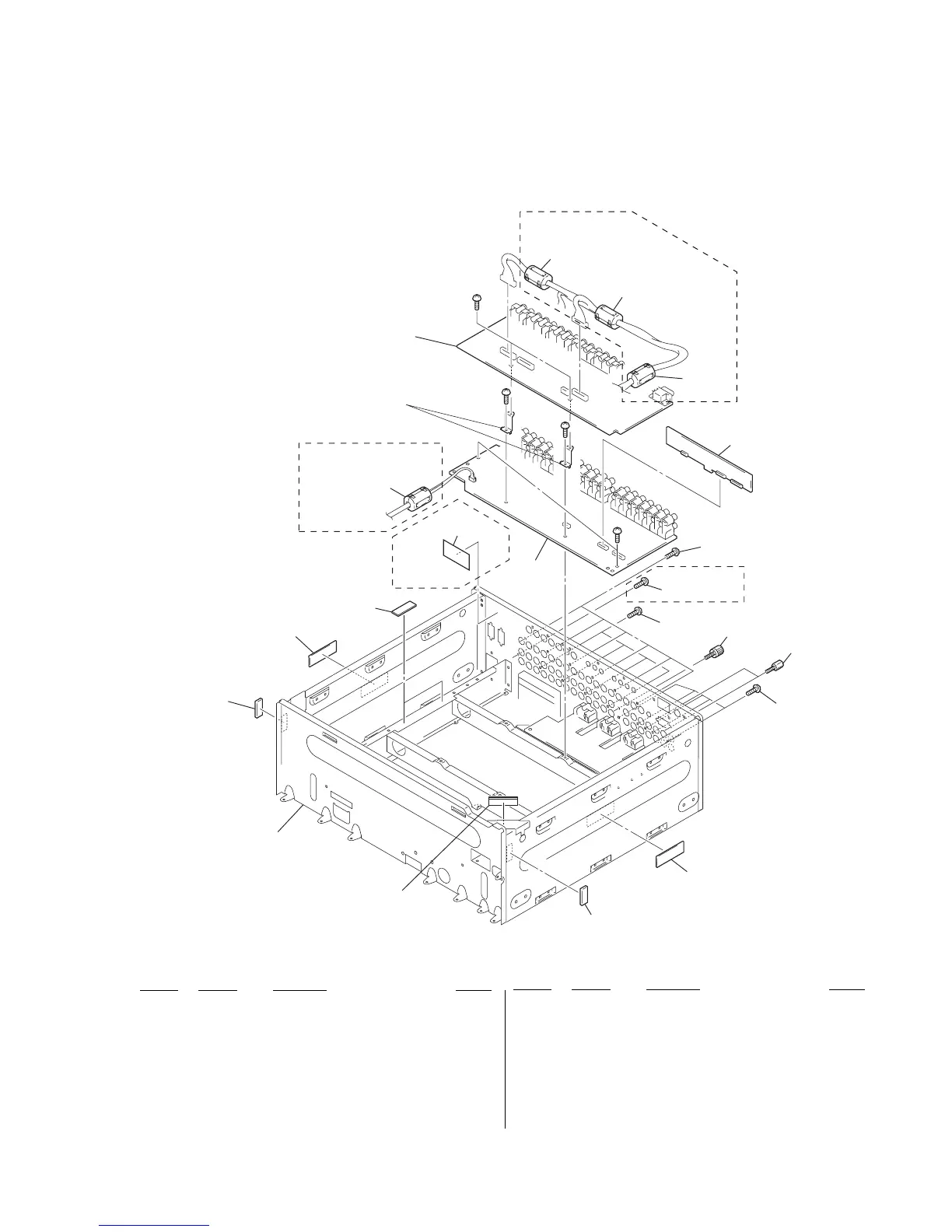

7-7. CHASSIS SECTION-4
301
301
303
304
305
305
306
307
308
309
309
309
309
310
not supplied
chassis section-5
not supplied
not supplied
not supplied
not supplied
not supplied
#1
supplied with J3201
#1
#1
#1
(EXCEPT US, CND)
(US, CND)
(US, CND)
(US, CND)
