Sony STR-DA5000ES - Chassis Section-2

113
STR-DA5000ES

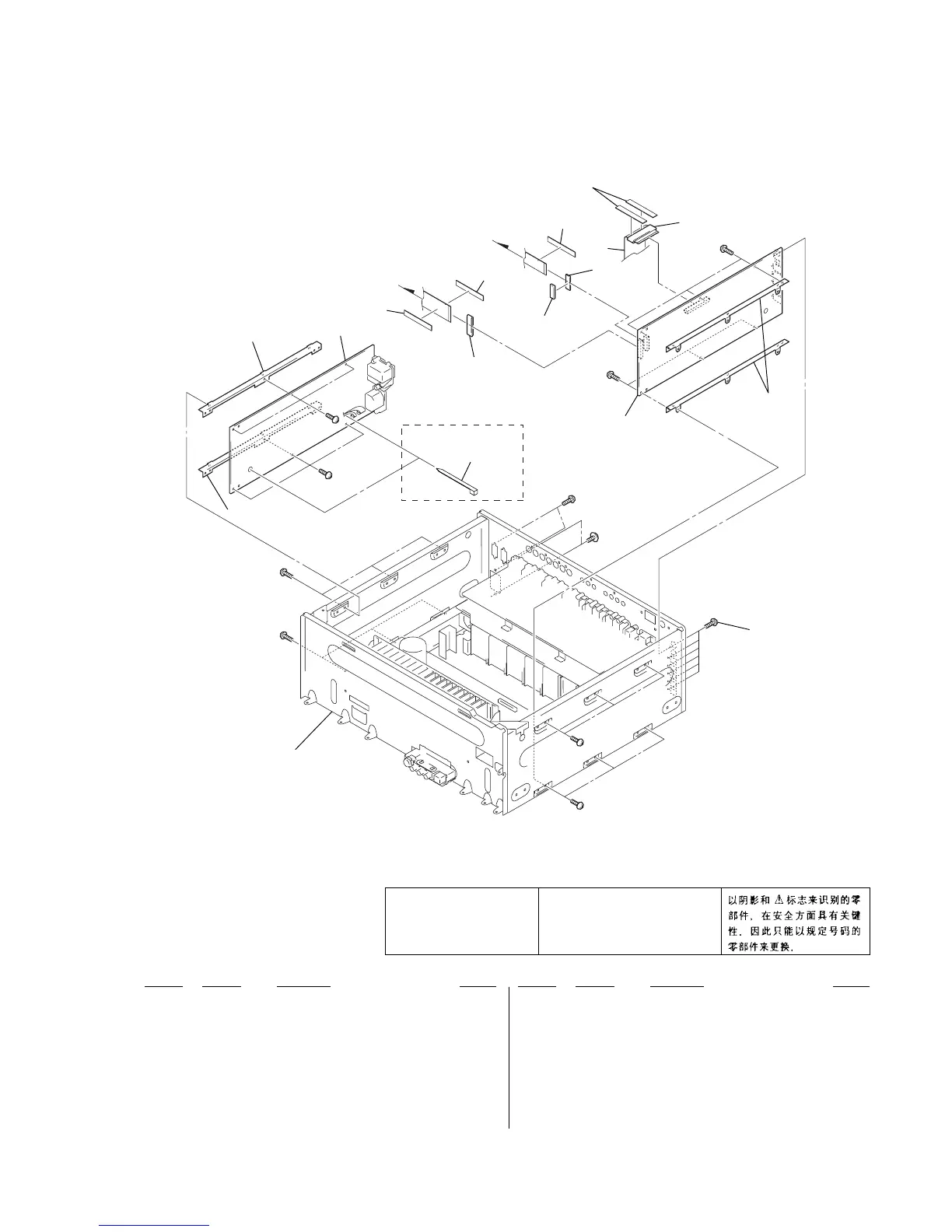

7-5. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
0 201 1-468-779-11 REGULATOR, SWITCHING (US, CND, TW)
0 201 1-468-780-11 REGULATOR, SWITCHING (AEP)
0 201 1-468-781-11 REGULATOR, SWITCHING (CH)
202 3-655-653-21 BAND (TAITON), BINDING (EXCEPT US, CND)
203 4-860-518-00 CUSHION
204 1-500-472-11 CORE, FERRITE
* 206 1-500-169-11 CORE (FPC)
207 1-773-390-11 WIRE (FLAT TYPE) (35 CORE)
208 1-400-583-11 CORE, FERRITE
209 A-4734-015-A DIGITAL BOARD, COMPLETE (US, CND)
209 A-4734-073-A DIGITAL BOARD, COMPLETE (TW, CH)
209 A-4734-091-A DIGITAL BOARD, COMPLETE (AEP)
210 4-974-510-11 SCREW (+BV 3X8 CU)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-685-659-79 SCREW +BVTP 4X8 TYPE2 IT-3
201
202
203
203
203
204
B
C
206
207
208
209
210
not supplied
not supplied
not supplied
not
supplied
#1
#1
(Refer to page 110)
(Refer to page 110)
not supplied
#1
#1
#1
#1
#1
#1
#6
#1
chassis section-3
(EXCEPT US, CND)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
