Sony STR-DA5000ES - Printed Wiring Board - AUDIO Board (Component Side)

STR-DA5000ES
3030
IC641
IC642
IC643
R654R644
IC618
IC617
IC616
IC615
IC614
IC613
IC612
IC611
IC653
IC651
R537
IC313
IC311
IC322
IC321
R342
IC231
IC131
IC327
Q651
R663
R662
R661
R633
R632
R631
Q661
Q632
C698
Q662
Q641
C631
IC692
IC652
R556
IC301
R436
R437
C632
R536
R341
IC619
R555
IC621
IC620
C598 C498
C497
C597
C599
C499
C496
C591
Q631
IC312
1
4
8
5
1
4
8
5
1
4
8
5
5
8
4
1
5
8
4
1
5
8
4
1
5
8
4
1
5
8
4
1
5
8
4
1
5
8
4
1
5
8
4
1
5
8
4
1
14
85
5
8
4
1
5
8
4
1
1
4
1
14
28
15
1
14
28
15
8
5
(US, CND)
5
8
4
1
1
7
14
8
5
8
4
1
5
8
4
1
1
14
85
4
85
14
85
14
85
1
4
8
5
(COMPONENT SIDE)
AUDIO BOARD
1-688-715-
11
(13)
E
E
E
E
E
E
A
B
C
D
E
F
1 2 3 4 5 6 7 8 9 10 11 12 13

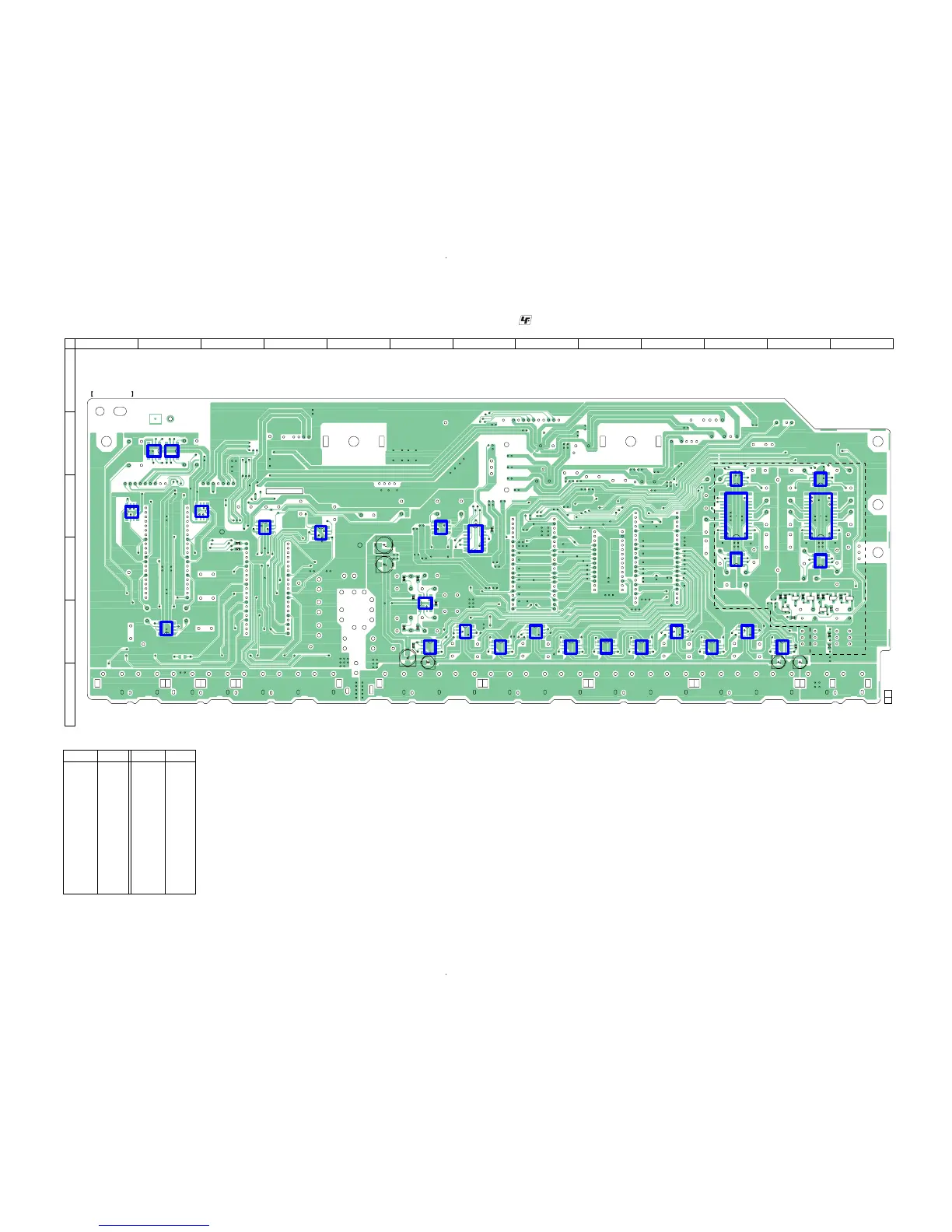

6-12. PRINTED WIRING BOARD – AUDIO Board (Component Side) – • See page 29 for Circuit Boards Location. :Uses unleaded solder.
IC619 E-11
IC620 E-11
IC621 E-12
IC641 C-11
IC642 C-11
IC643 D-11
IC651 C-12
IC652 C-12
IC653 D-12
IC692 D-7
Q631 D-12
Q632 D-12
Q641 D-12
Q651 D-13
Q661 D-12
Q662 D-12
IC131 A-1
IC231 C-3
IC301 E-6
IC311 C-4
IC312 C-4
IC313 C-6
IC321 B-2
IC322 B-2
IC327 E-2
IC611 E-6
IC612 E-7
IC613 E-7
IC614 E-8
IC615 E-8
IC616 E-9
IC617 E-10
IC618 E-10
• Semiconductor Location
Ref. No. Location Ref. No. Location
