Sony STR-DA5000ES - D-AMP Board

13
STR-DA5000ES

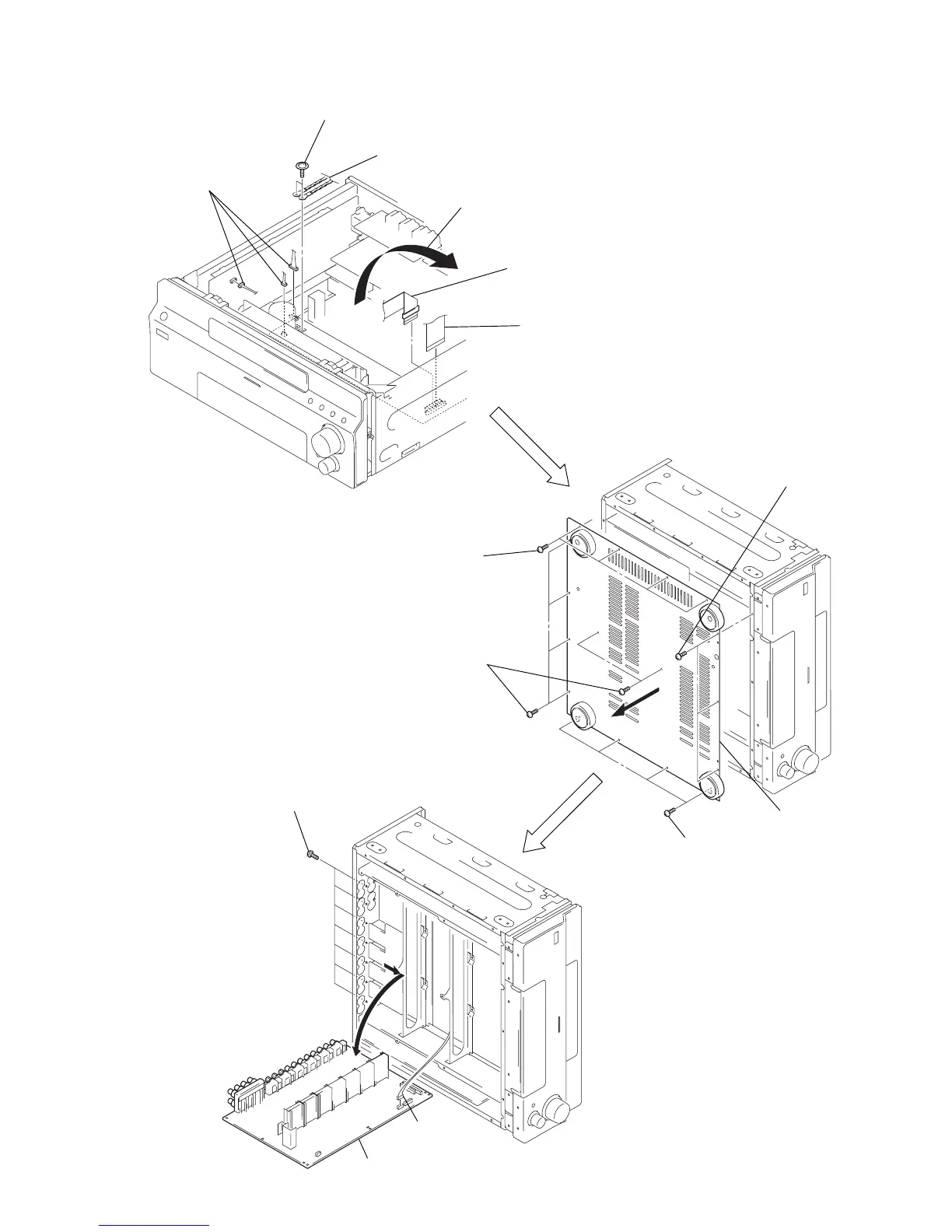

3-4. D-AMP BOARD
3 three connectors
(CN3, CN903, CN1480)
4 two screws
(PSW3
× 8)
5 two ground wires
6 Tur n over the set.
1 wire (flat type) (25 core)
(CN1902)
2 wire (flat type) (35 core)
(CN1901)
7 four screws
(BVTP3
× 8)
7 four screws
(BVTP3
× 8)
7 six screws
(BVTP3
× 8)
7 three screws
(BVTP3
× 8)
8 bottom plate
qd D-AMP board
qa
0
qs connector
(CN1853)
9 seven screws
(BV/RING)
