1. Introduction CRANEX Novus e

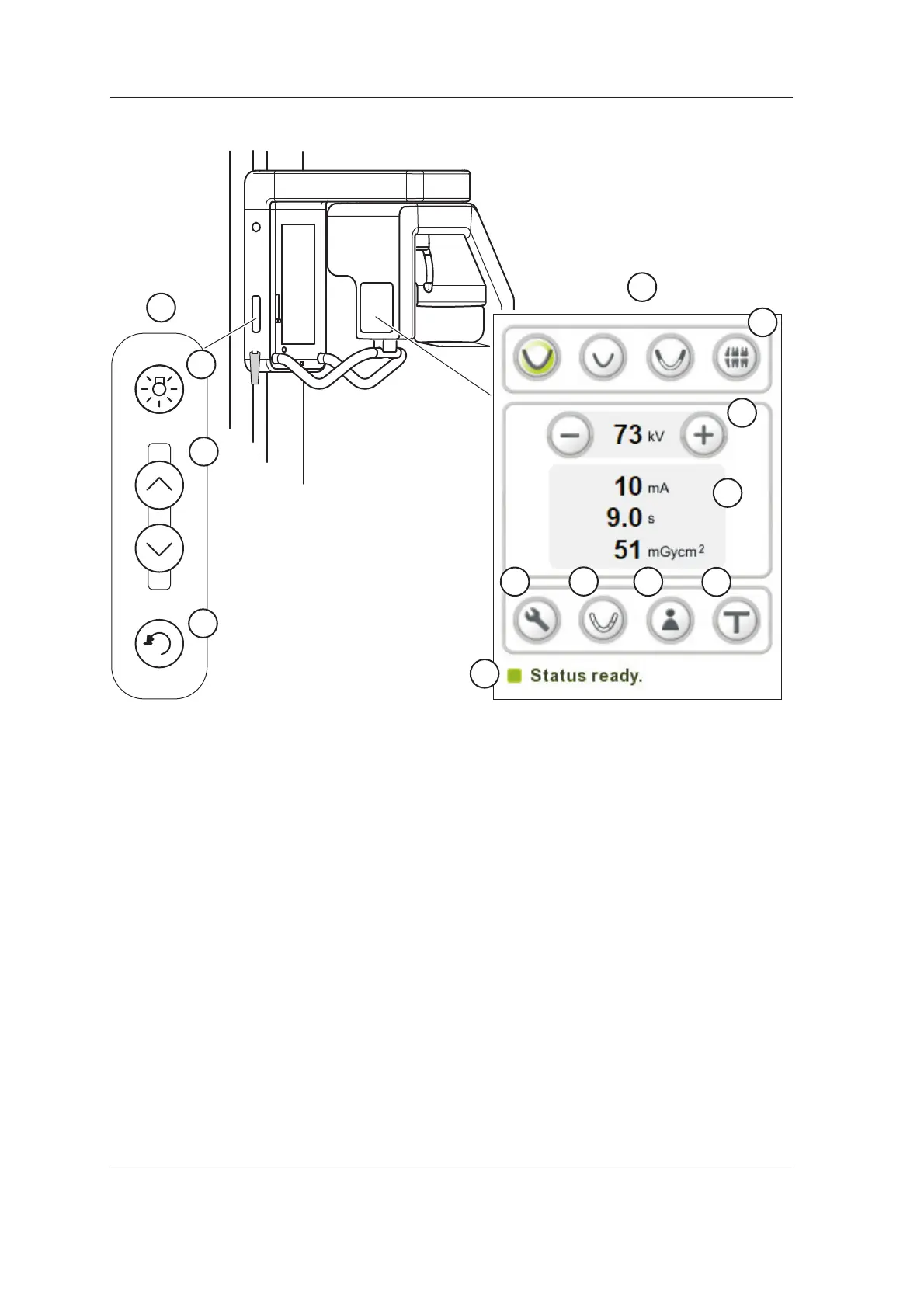

Unit controls
1. Side control panel
A. Lights key - switches the positioning lights on and off.
B. Up / down keys
C. Return key, drives rotating unit to the patient in/out position (PIO)
2. Main control panel
D. Program keys - Adult pan, Child pan, TMJ, bitewing (optional)
E. kV selection keys
F. Exposure values
G. Service key
H. Sectional Panoramic program selection key (optional)
I. Patient Name -key (visible only if patient name display is
supported by the dental imaging software)
J. Test exposure
K. Unit status indicator
1
A
B
C
2
I
D
E
G
F
J
K
H
