4. Checking the alignment and fi nishing the installation CRANEX Novus e
4.3 Checking the positioning lights
Midsagittal light

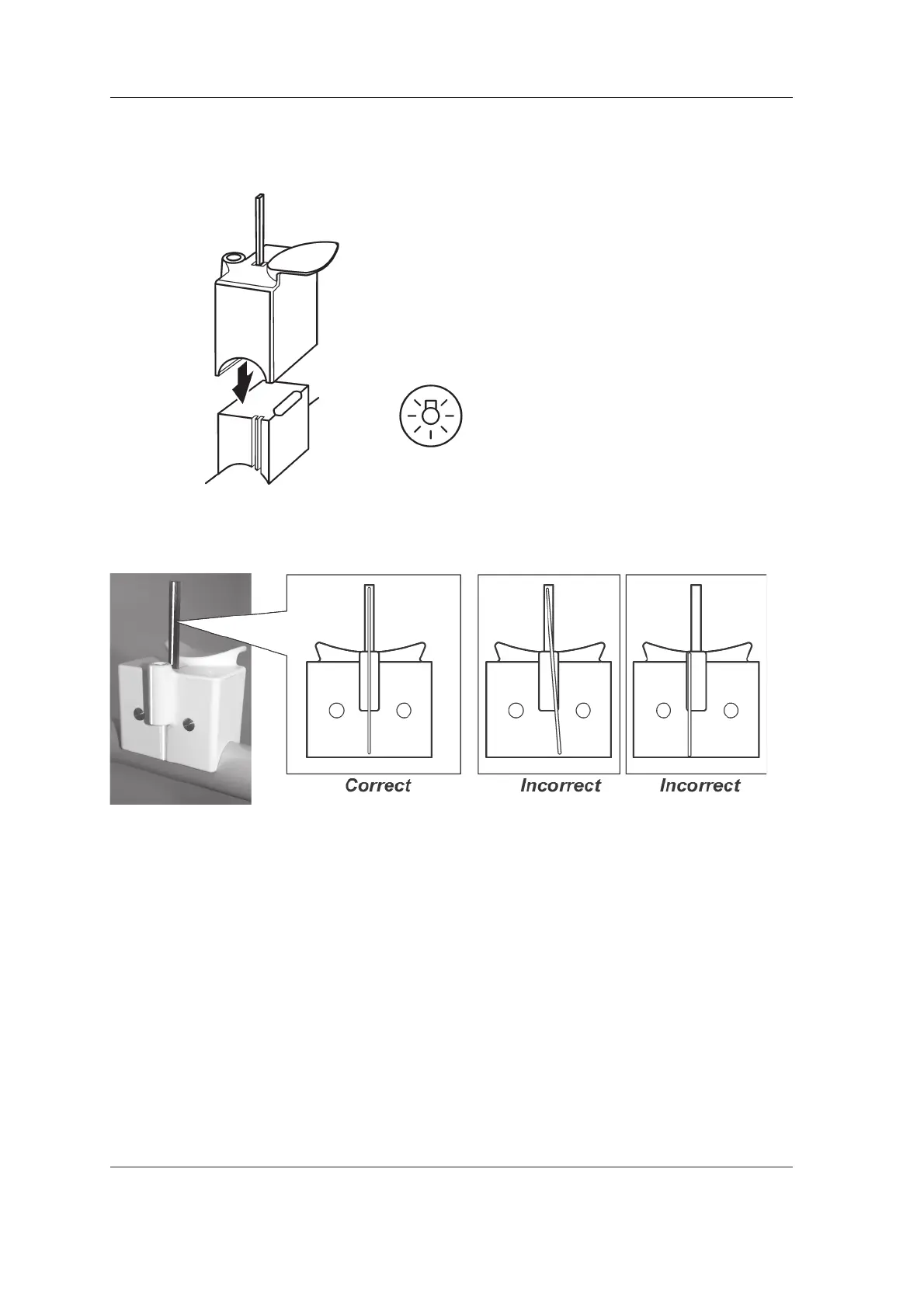

1. Attach the chinrest and a rod to the support
holder.
2. Press the light key to switch the patient
positioning lights on.
3. The light beam must be vertical and strike the
center of the rod
If the beam is not in the correct position it must
be adjusted. See 5.4 Aligning the positioning
lights.
