Installation and set-up manual 208668 61
CRANEX Novus e 5. Aligning the unit
5.5 Calibrating the CCD sensor
NOTE!
The CCD sensor is calibrated at the factory and
thus does not normally need to be calibrated
again.
However, if the error message "Please calibrate
the device" appears on startup, calibrate the CCD
sensor as described below.
Also, if you adjusted the alignment of the sensor
and/or adjusted the alignment of the beam
during installation then the CCD sensor must be
calibrated.
1. PC: Prepare the unit for an exposure.
2. Remove the chin rest or phantom from the unit
and make sure that there is nothing between
the sensor and tubehead.

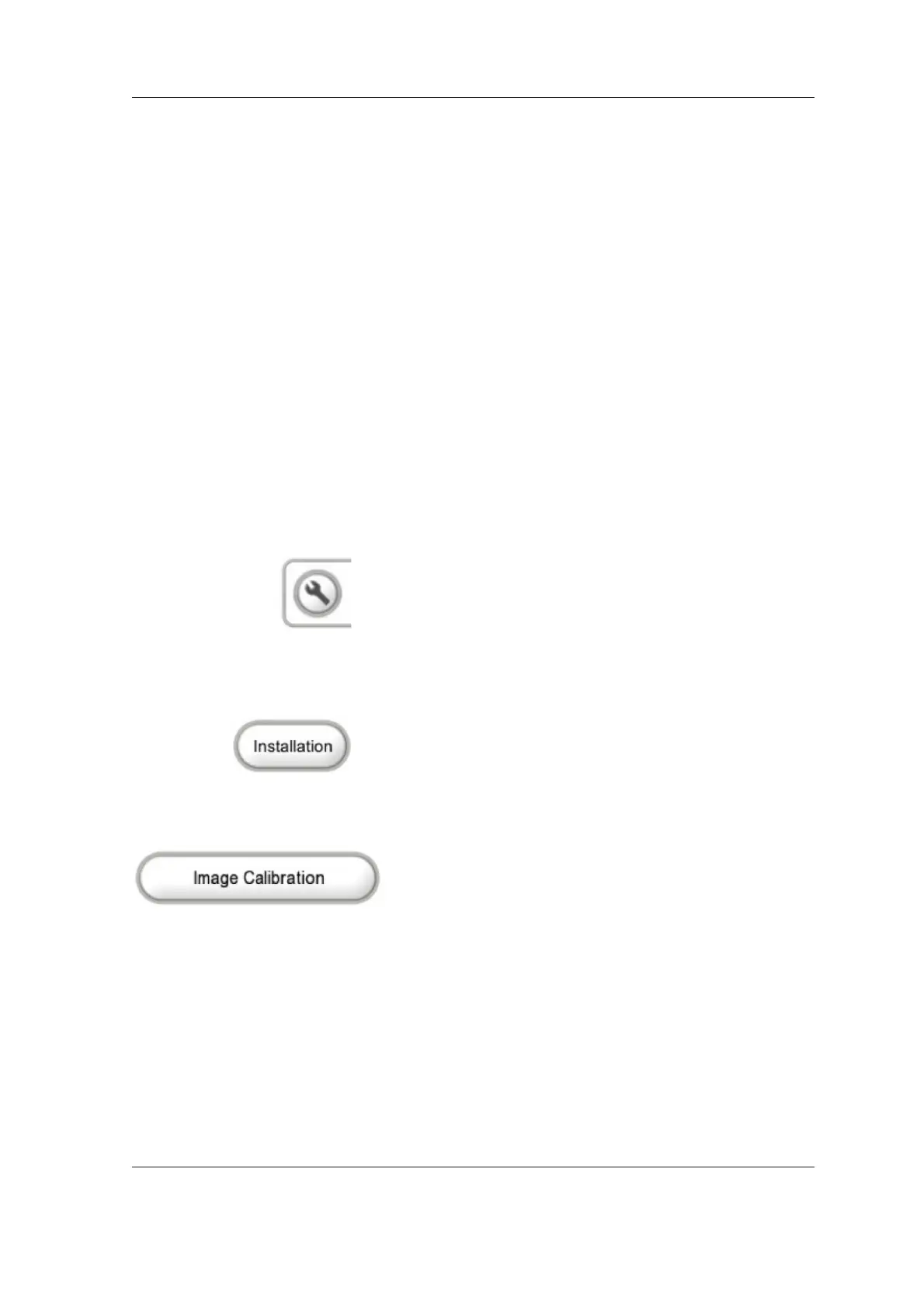

3. Touch the service key on the main control
panel of the unit to open the confi guration
screen.
4. Select Installation.
5. The personal identifi cation number (PIN)
screen will appear.
Key in 1204 and touch the OK (tick) key.
Then select Image Calibration.
