60 Installation and set-up manual 208668
5. Aligning the unit CRANEX Novus e
Focal trough light

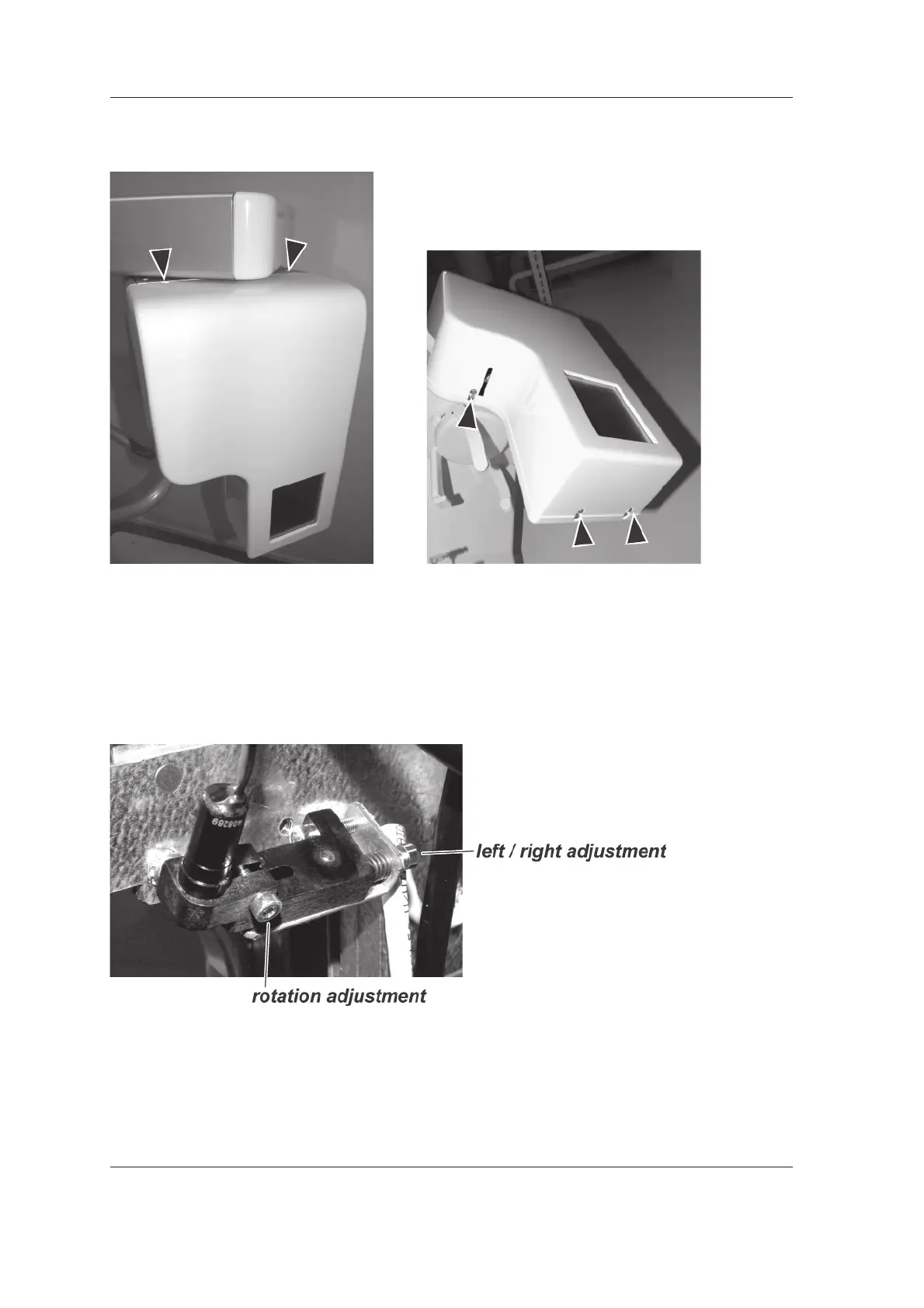

1. Loosen the fi ve (5) screws that hold the
aperture cover (the inner cover of the sensor
assembly) in place and then remove the cover.
2. Loosen the clamping screw on the light
module and then rotate the light to position
beam vertically. To adjust the beam in the up/
down left/right directions loosen the nuts/
screws that hold the light module bracket in
position and adjust the laser lights accordingly.
.
