Installation and set-up manual 208668 59
CRANEX Novus e 5. Aligning the unit

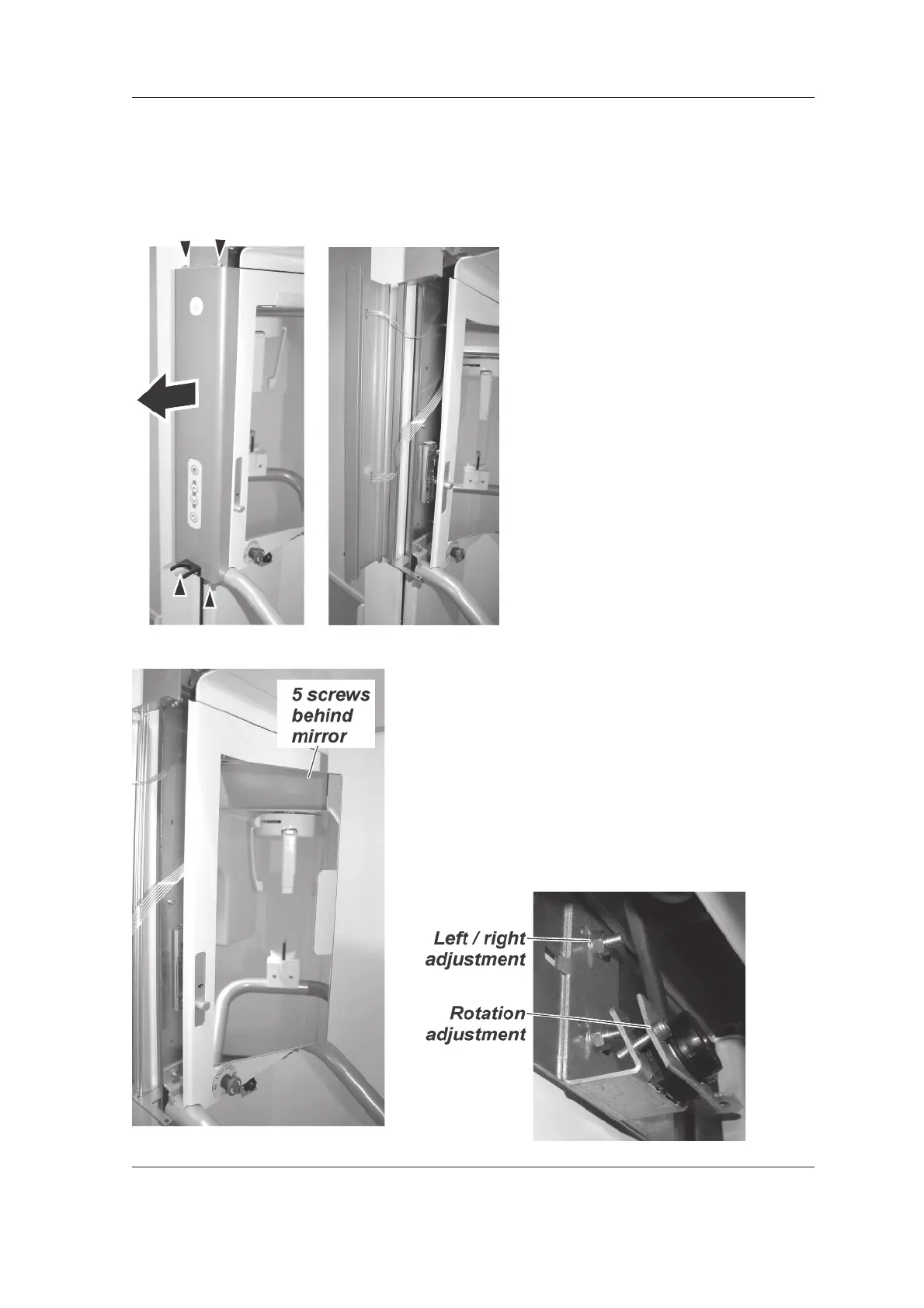

2. Remove the side profi le left assembly (4
screws).
CAUTION:
Be careful not to damage the fl at cables that
attach the exposure warning light and control
panel to the unit.
3. Remove the mirror assembly. It is held in place
with fi ve (5) screws located behind the mirror.
4. Both the midsagittal and frankfort lights have
similar adjusting mechanisms. Loosen the
clamping screw on the light module and rotate
the light to position beam vertically. For left/
right beam movements loosen the nuts/screws
that hold the light module bracket in position
and adjust the laser lights accordingly.
