Installation and set-up manual 208668 15
CRANEX Novus e 3. Installing the unit

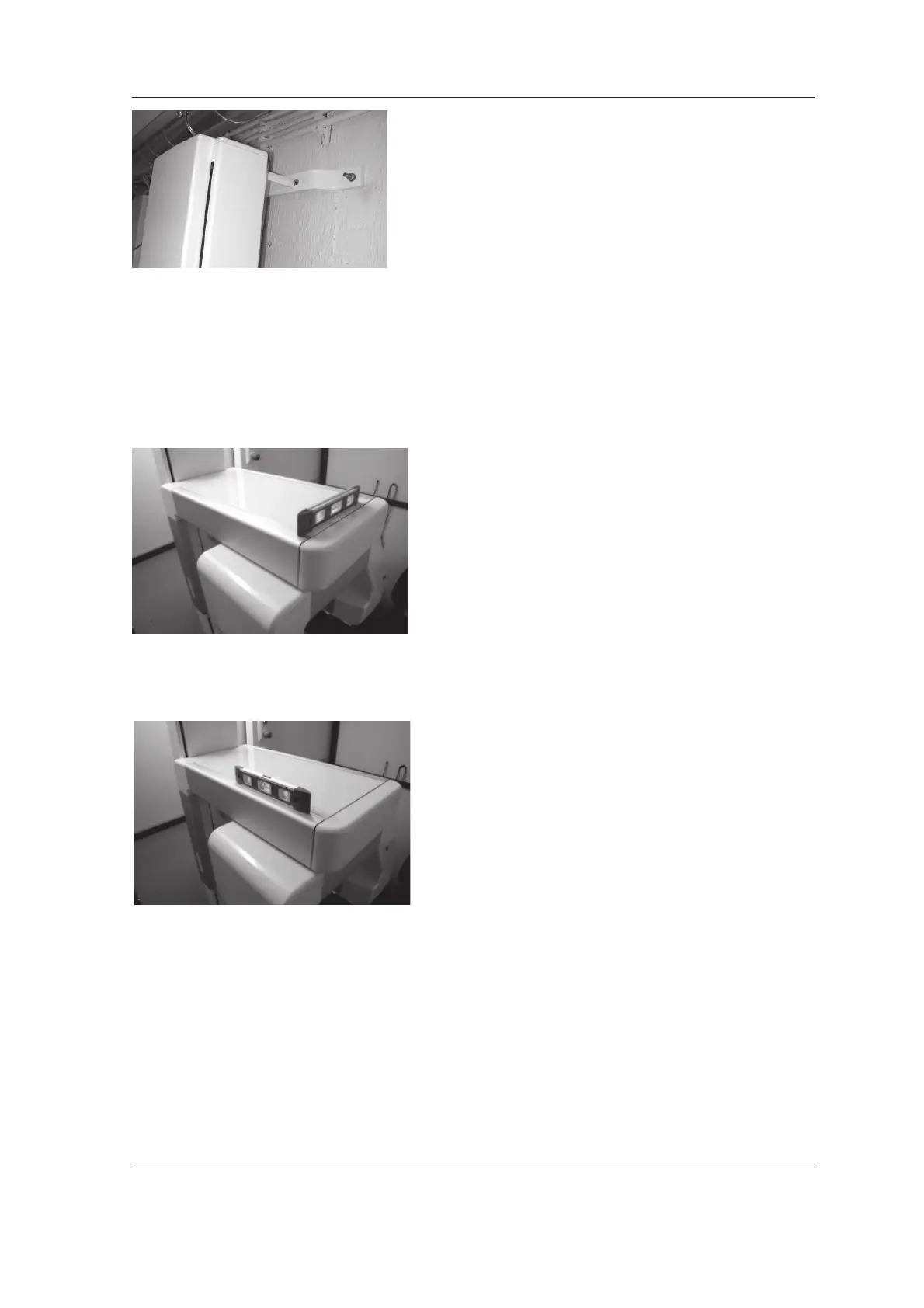

3. Drill two holes with diameters suitable for the
10 mm (3/8") fi xing hardware that is to be
used, and then attach the unit to the wall with
the appropriate fi xing hardware. Do not fully
tighten the screws yet.
4. Remove the packaging material that protects
the rotating unit and vertical carriage.
5. Place a spirit level widthwise on the upper
shelf and level the unit in the left/right
direction.
Make small adjustments by loosening the
wall bar fastenings and moving the top of the
column to the left or the right to level the unit.
Make large adjustments by moving the base of
the column left or right.
6. When the unit is level in the left/right direction
place the spirit level lengthwise on the upper
shelf and level the unit in the forwards/
backwards direction.
Adjustments can be made by moving the base
of the column backwards or forwards.
