3. Installing the unit CRANEX Novus e
IMPORTANT NOTE:

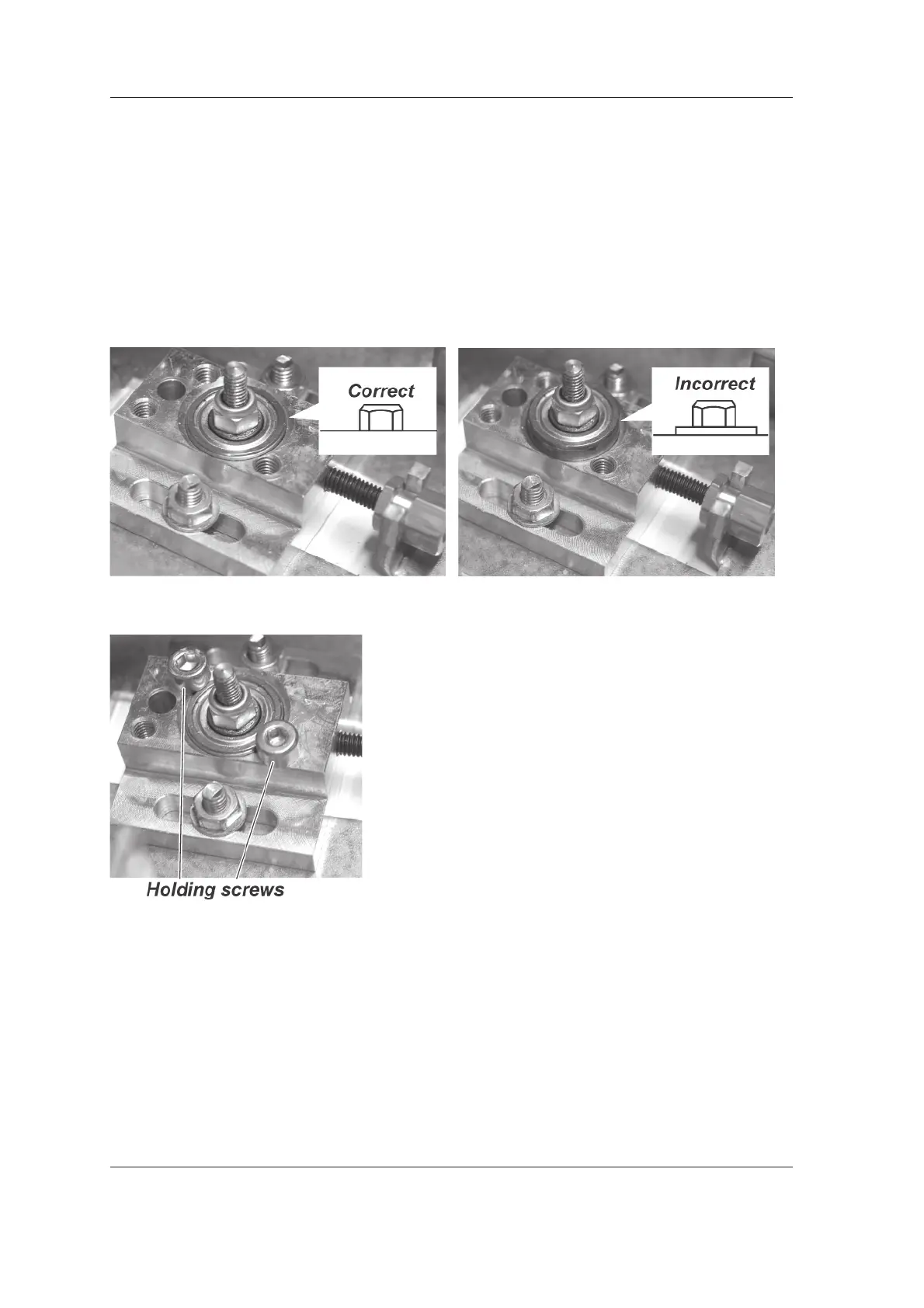

If the guide pin does not fully enter the hole in
the base plate (the top of bearing is NOT level
with the top of the base plate) the rotating unit
must be moved slightly.
To do this loosen the transportation
screws (see step 5 for information on the
transportation screws), and then slide the
rotating unit gently backwards or forwards until
the guide pin drops into place.
4. Secure the guide pin in position with the two
holding screws.
