Installation and Reference Manual
System Operation
Installation and Reference Manual v3.2/0410/6 63
11 Once a connection has been made the name of User assigned to the port that the PCS 60 is
partnering is displayed in the Status Bar at the bottom left hand corner.
12 Lift the handset on the telephone to confirm that the connection between the PCS 60 and the
phone is set up correctly. A call entry will be displayed in Call Status.
Alternatively, the IP address, port number and partner login code can be entered in the Properties of a
short cut to the PCS 60 software. This method should be used when you wish to run more than one
version of the PCS 60 on the same PC as described below on page 63.
(Please note that any entry made in the short cut’s Properties will override entries in Preferences.)
1 Create a short cut to PCS60.exe.

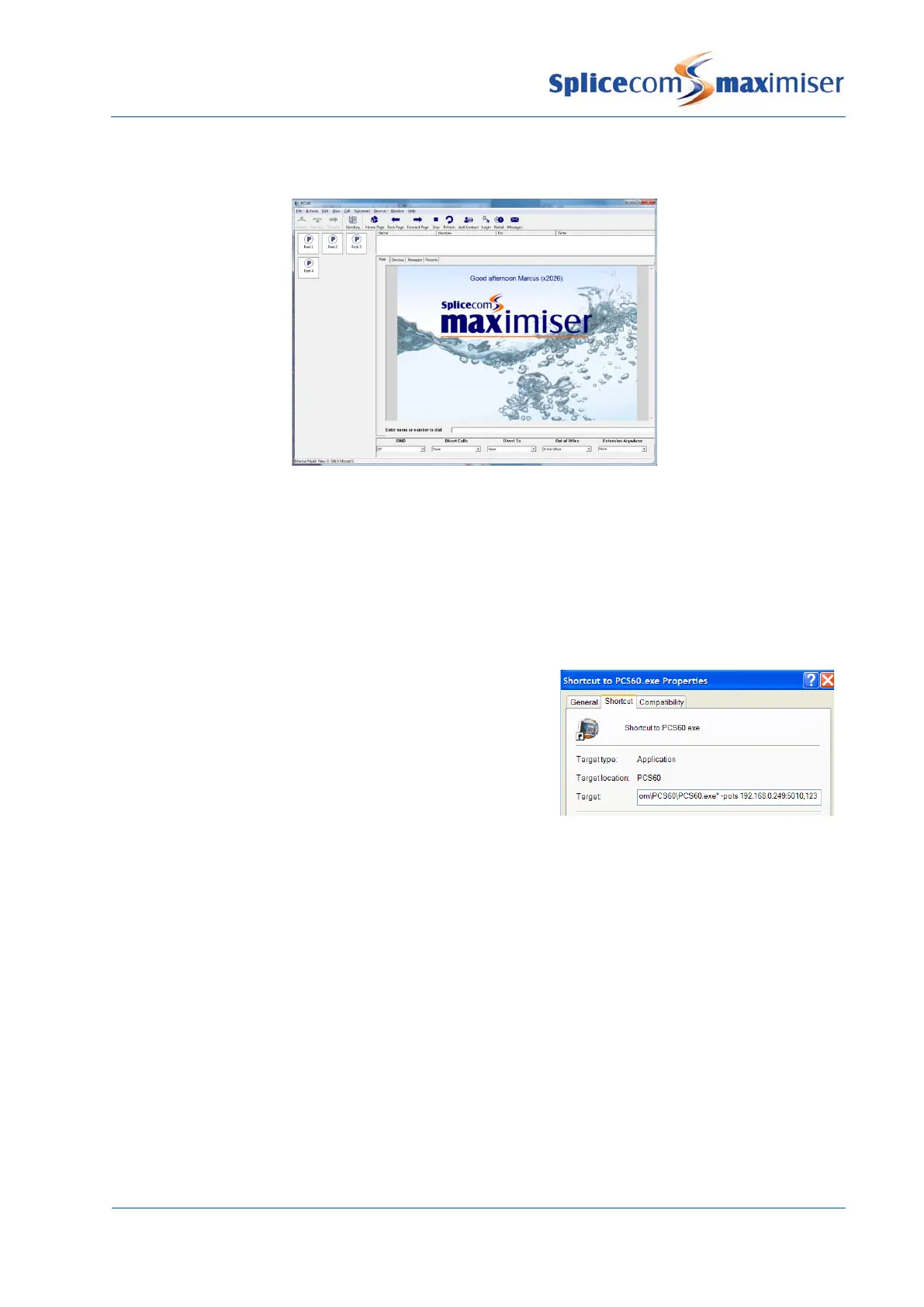

2 Open the Properties of the short cut and in the Target
field add the following:
-pots <ip address of Phone module>:<port no>,<partner login code>
or
-pots <ip address of Call Server>:<port no>,<partner login code>
or
-pots <ip address of PCS 580/570/560/410/400/100>:<5001>,<partner login code>
so that the Target path reads as per the following example:
“C:\Program Files\SpliceCom\PCS60.exe” -pots 192.168.0.249:5010,1234
3 Select OK when ready
4 Double click on the short cut to run the PCS 60 application
Run more than one version of PCS 60 on the same MS Windows PC
When a member of staff is responsible for monitoring or using multiple handsets for example, multiple
PCS 60 windows can be run on the same PC by selecting the Multiple Instances options within
Preferences.
