36

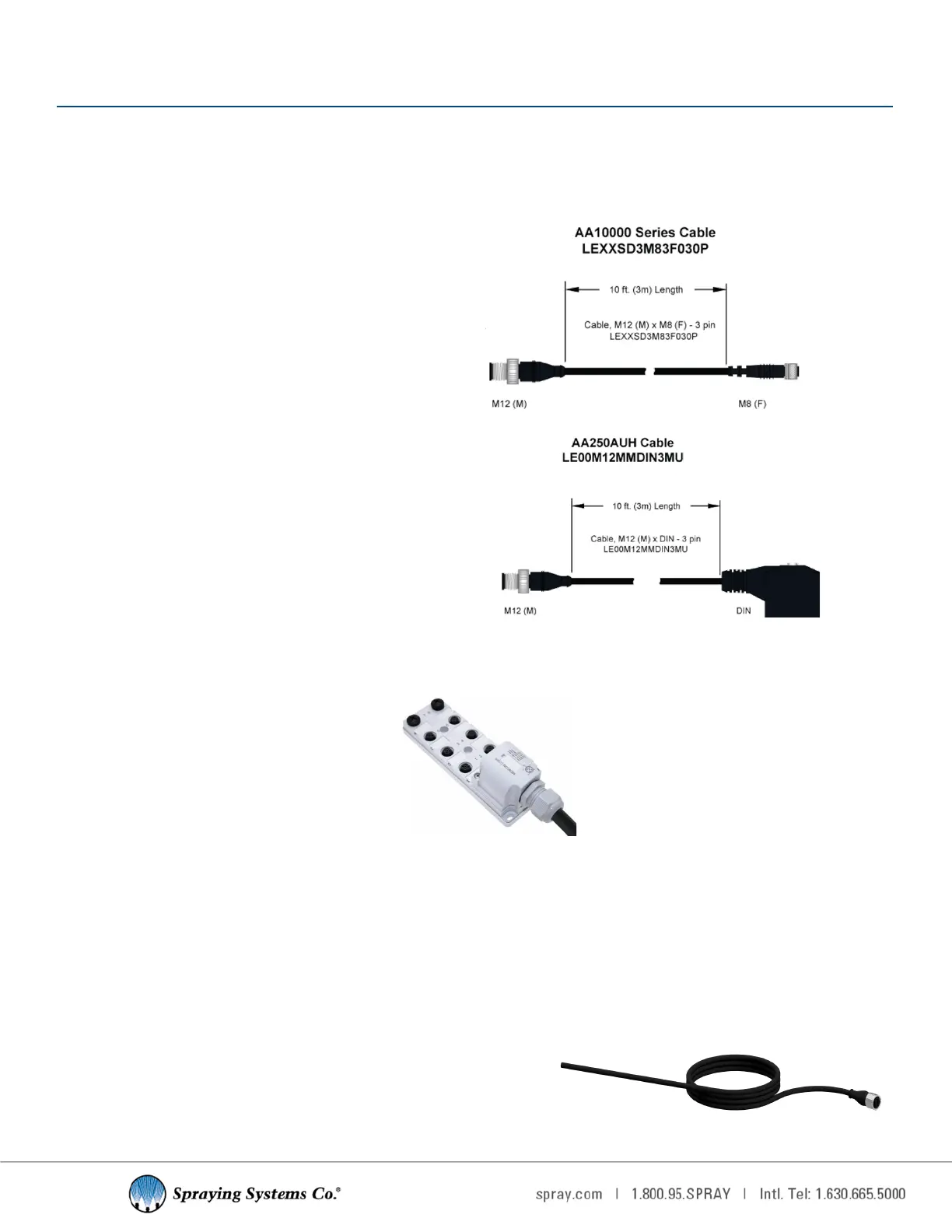

12.1 ELECTRIC NOZZLE CORD SET
If the system is designed to operate Spraying Systems Co.
®
PulsaJet or AA250 electric actuated spray nozzles, the sys-
tem is supplied with a cord to connect the spray nozzle to the Control Panels. All the electric actuated nozzle cord sets
are wired as shown in the diagram.
AA10000 SERIES PULSAJET NOZZLE CABLE
Panel connecon: Main
Part number: LEXXSD3M83F030P
Cable: 9.8 . [3 m] cord length
Connector – M8 3 pin female
Connector – M12 3 pin male
AA250AUH ELECTRIC NOZZLE CABLE
Panel connecon: Main
Part number: LE00M12MMDIN3MU
Cable: 9.8 . [3 m] cord length
Connector – Mini DIN
Connector – M12 3 pin male
ELECTRICAL JUNCTION BLOCK
If mulple PulsaJet or AA250 electric spray nozzles are used the system comes complete with a juncon block to con-
nect the spray nozzles to the unit. The juncon block is available in two versions: four (4) and eight (8) nozzle connec-
ons.
12.2 TRIGGER CABLE
Oponal trigger cable oering: Un-terminated ying lead cable and connector.
REQUIRED INPUT
Part number - LE00M12F5M – M12(f) x bare lead trigger cable
NPN – Switch to 0 VDC to turn on spray trigger.
Requires NPN Sensor or dry contact switch.
Connects to the connector labeled Trig.On the boom of the panel.
ASSEMBLY SPECIFICATIONS:
Panel connecon: Trig (Soware trigger choice - DI2)
Cable: 16.4 . [5 m] cord length
Flying Leads
Connector end—M12 4 pin female
SECTION 12
TRIGGER DEVICES AND ACCESSORIES
Trigger cable
