37
Note: Connect pins 3 & 4 with a switch or dry contact relay to iniate trigger.
WARNING: Never connect pin 1 (24vdc) to any other pin unless you are wiring in your own 24VDC
sensor. Doing so could cause equipment damage. (Cut the brown and white wire if you're not using
them)

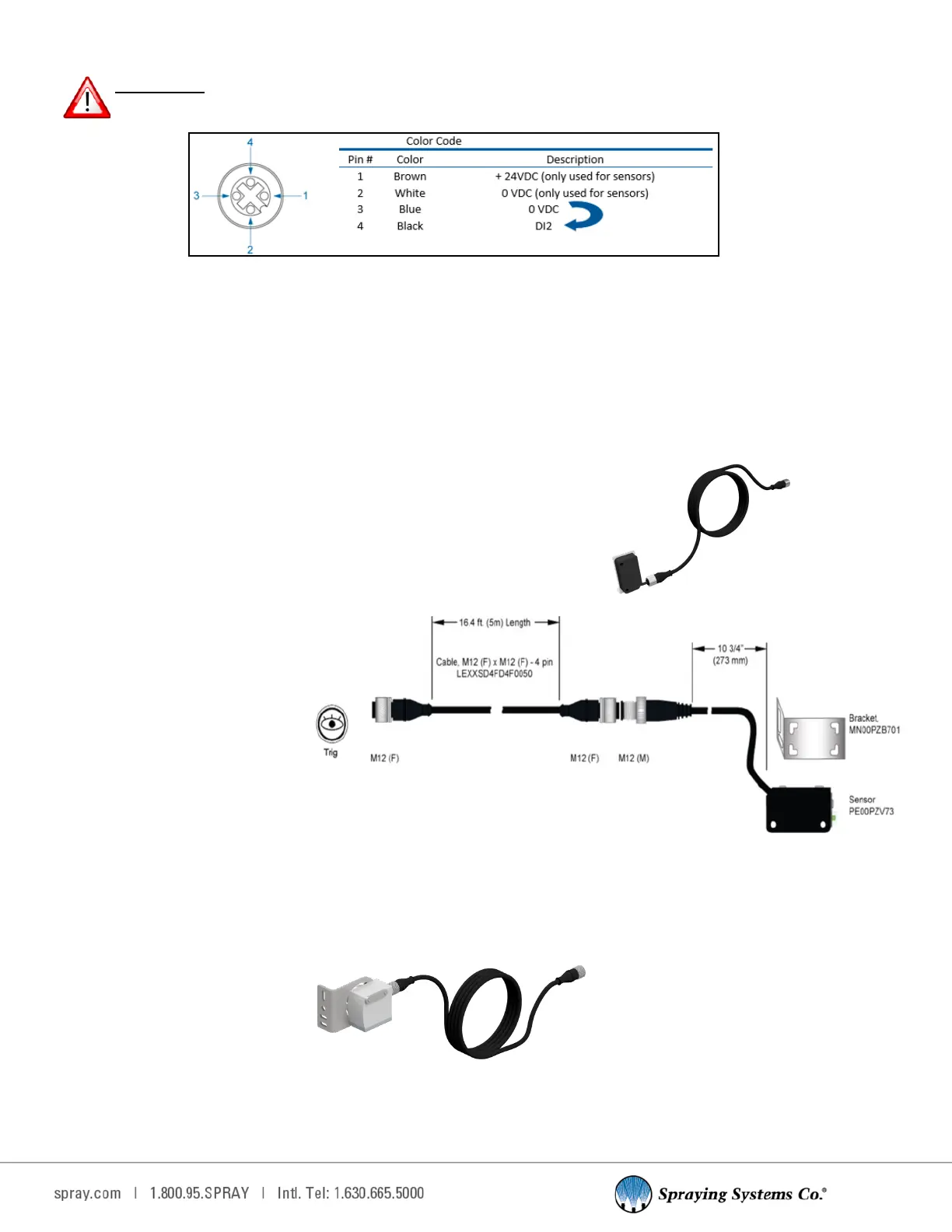

12.3 PHOTOELECTRIC OBJECT SENSOR
Infrared – direct reecon sensor with cable and connector, this is our standard sensor oering, it should work in
most cases.
SPECIFICATIONS:
•
Kit number: 040TS04000014W0
•
Photoelectric sensor – Infrared – direct reecon sensor with cable, connector, and bracket.
•
NPN – NO + NC
•
35 inch [900 mm] sensing range
•
Seng distance adjustable between 6 and 36 inches [150 and 900 mm]
•
Working temperature range = -4°F to 158°F [-20°C to 70°C]
•
IP67; CE rated
ASSEMBLY SPECIFICATIONS:
•
Panel connecon: Trig
•
Cable: 16.4 . [5 m] cord length
•
Connector – M12 4 pin female
12.4 COLOR SENSOR
Full-Spectrum color, detects color/brightness/surface nish/intensity, NPN/PNP, IP65/ IP67 rang, 1.18 to 19.69 in.
detectable distance.
